Headlamp Light Switch - Schematic Revision

Article No.
91-11B-35

06/14/91

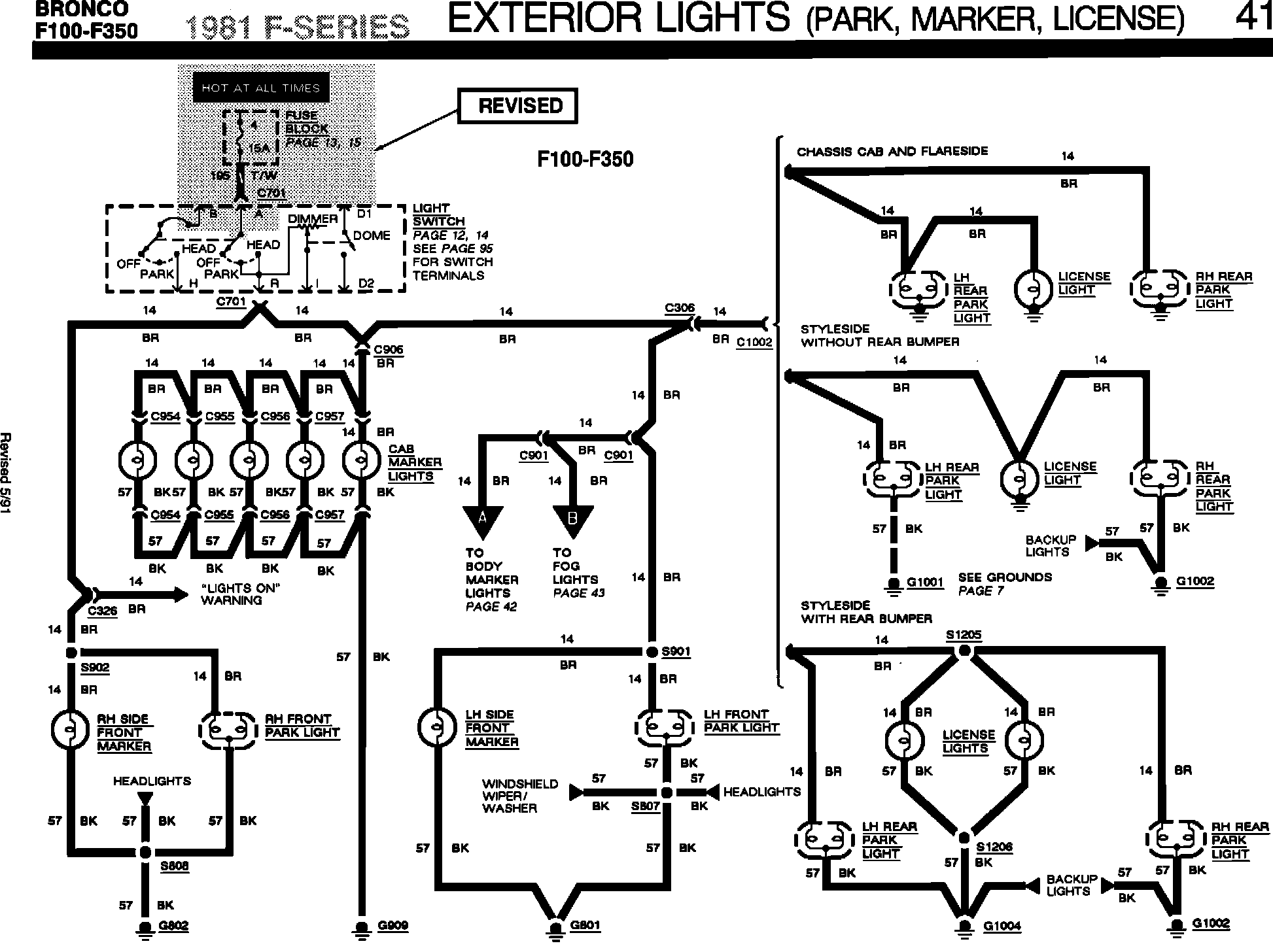

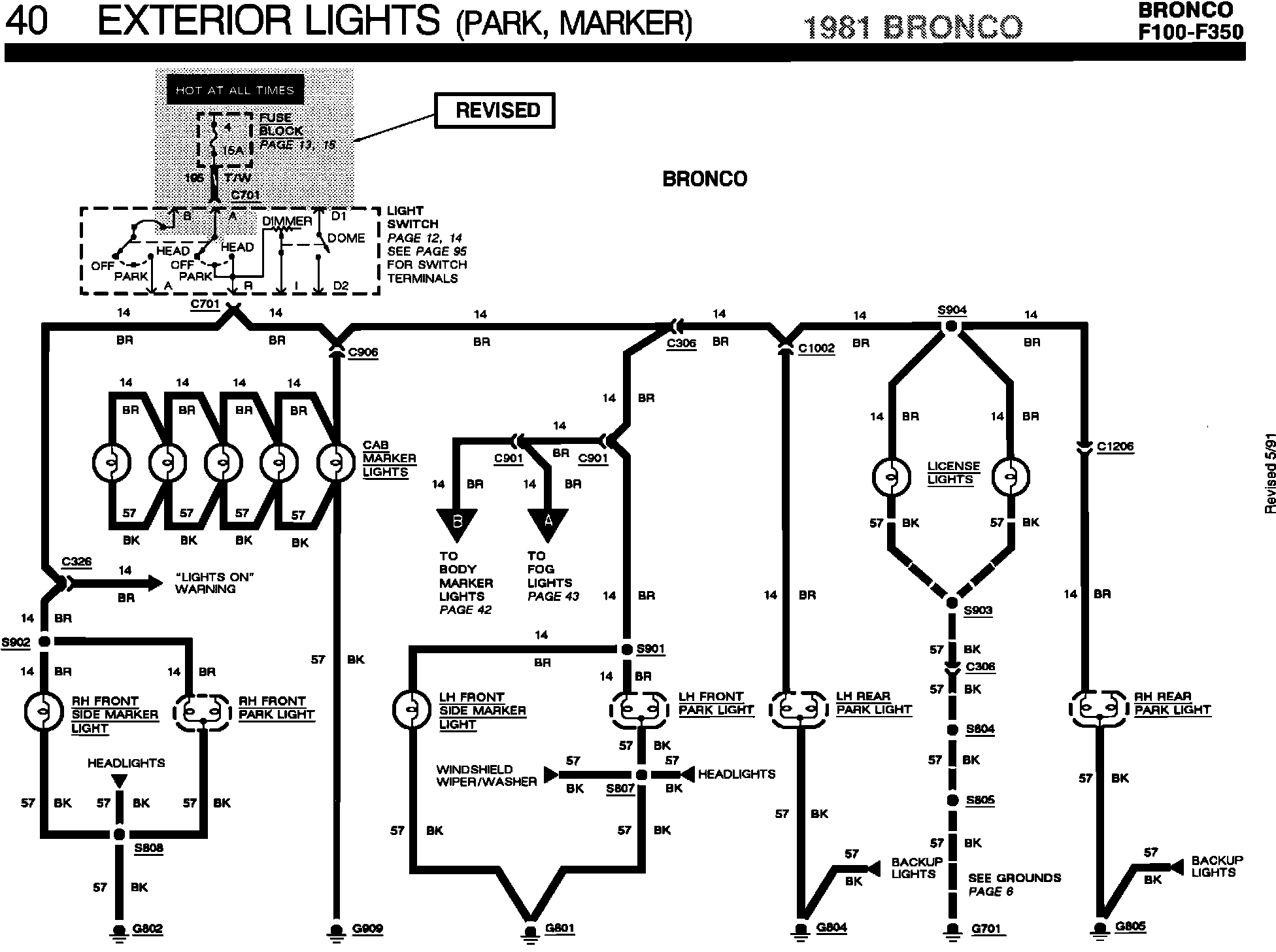

^ ELECTRICAL/VACUUM TROUBLESHOOTING MANUAL - 1981 - PAGES 40 AND 41 - EXTERIOR LIGHTS CONNECTIONS TO LIGHT SWITCH REVISED

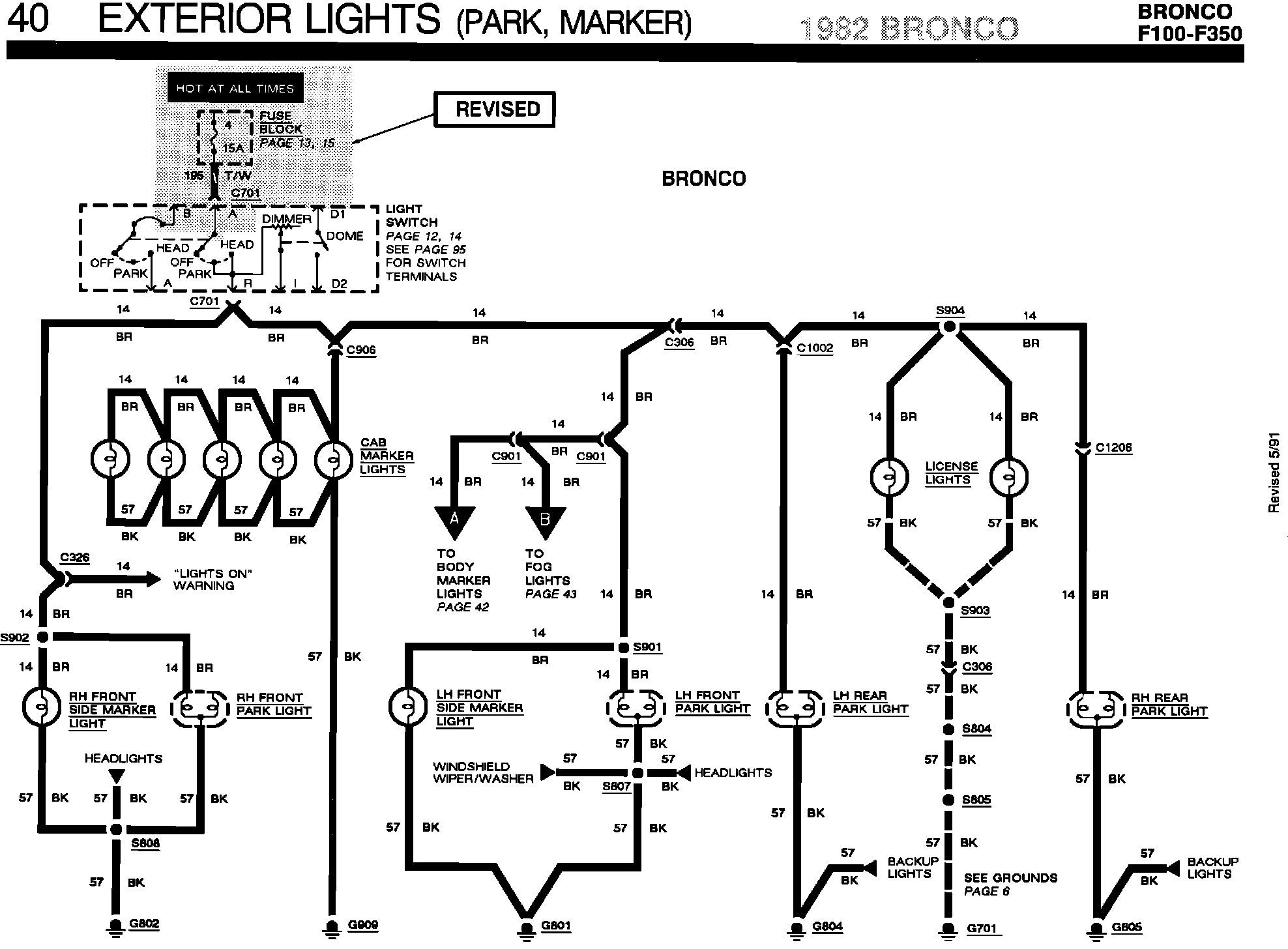

^ ELECTRICAL/VACUUM TROUBLESHOOTING MANUAL - 1982 - PAGE 40 - EXTERIOR LIGHTS CONNECTIONS TO LIGHT SWITCH REVISED

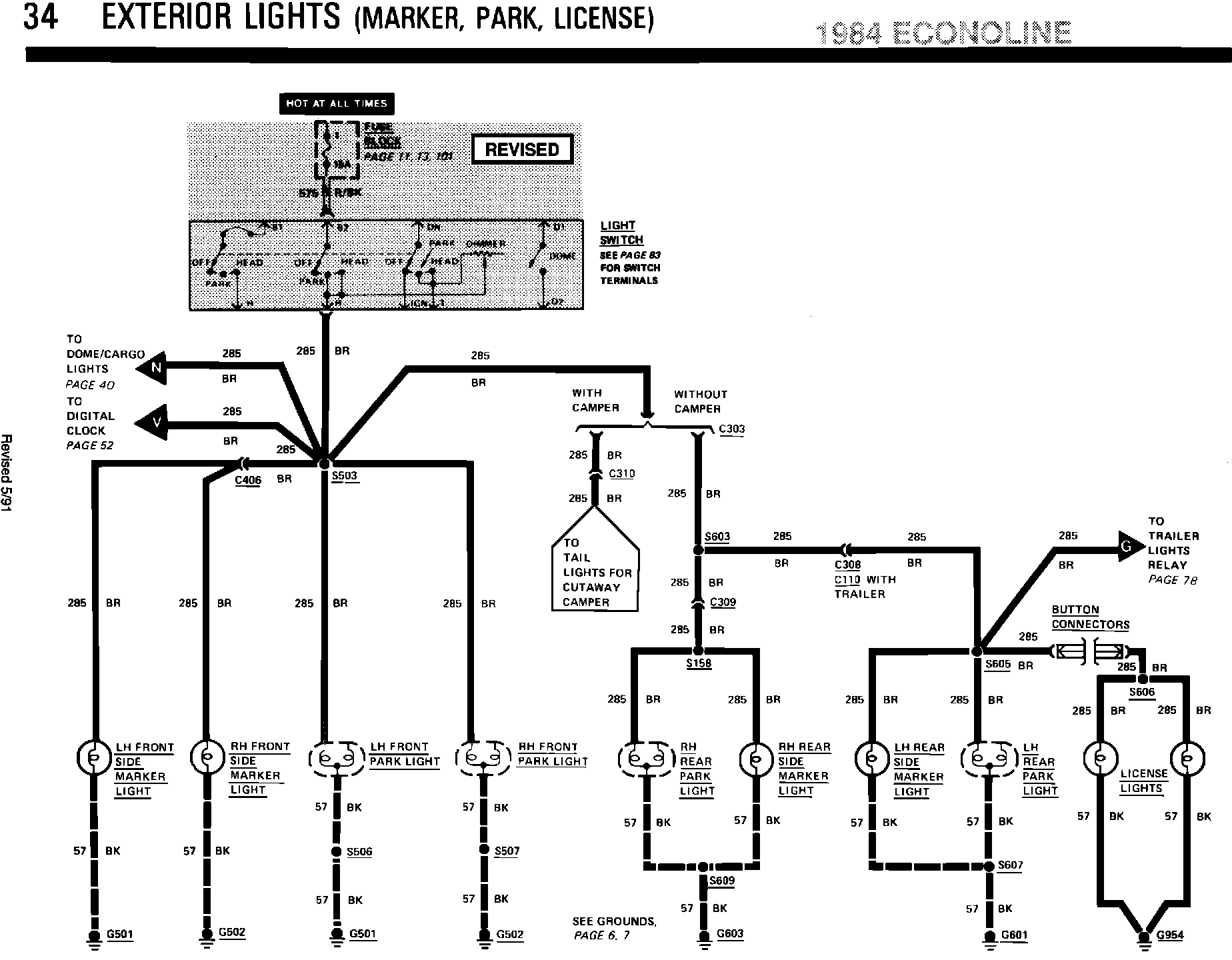

^ ELECTRICAL/VACUUM TROUBLESHOOTING MANUAL - 1984 - PAGE 34 - EXTERIOR LIGHTS CONNECTIONS TO LIGHT SWITCH REVISED

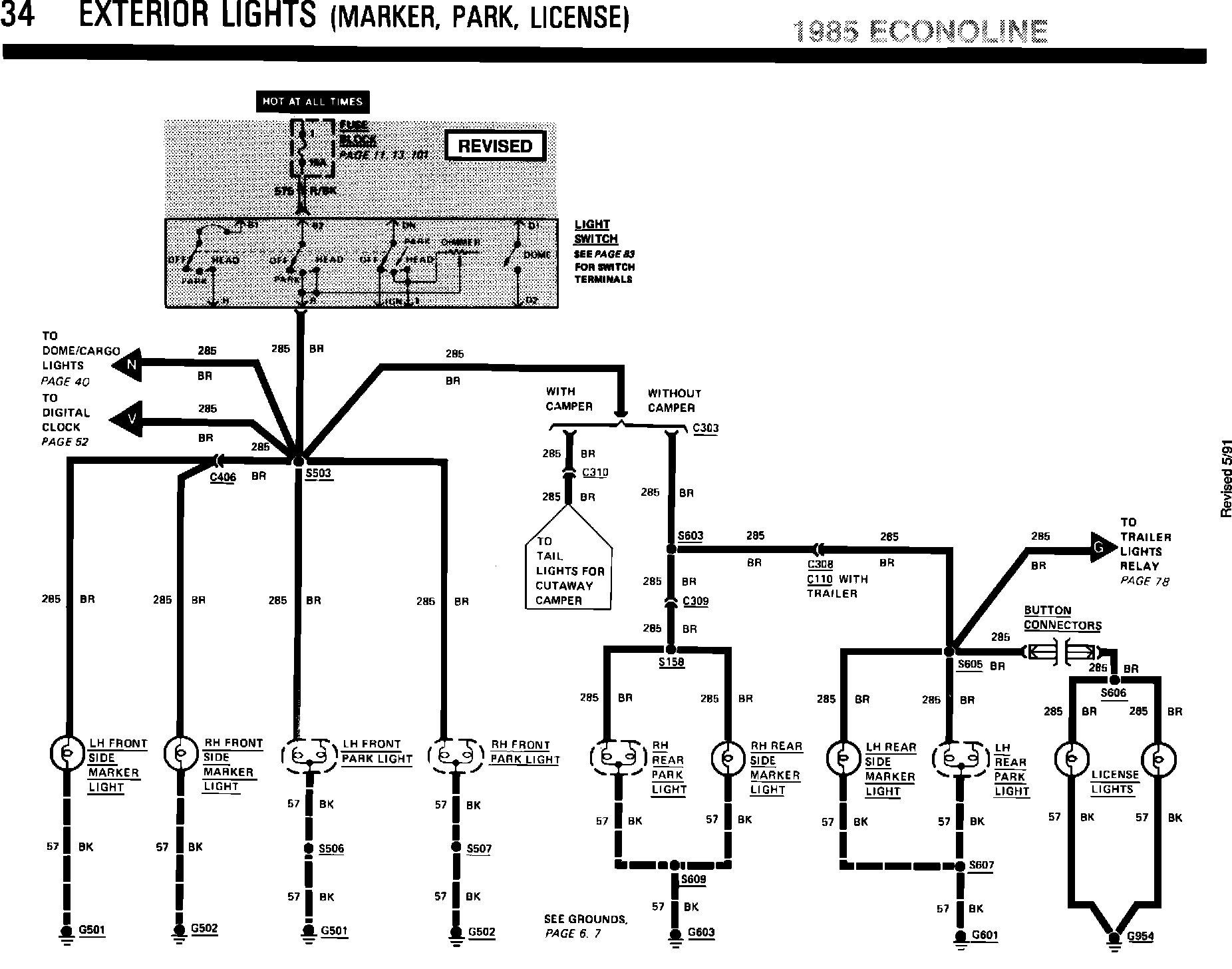

^ ELECTRICAL/VACUUM TROUBLESHOOTING MANUAL - 1985 - PAGE 34 - EXTERIOR LIGHTS CONNECTIONS TO LIGHT SWITCH REVISED

LIGHT TRUCK:
1981 F-150-350 SERIES
1981-82 BRONCO
1984-85 ECONOLINE

ISSUE:
The connections of Exterior Lights (Marker, Park, License) to the Light Switch are inaccurately shown in the schematics of the following Electrical/Vacuum Troubleshooting Manuals:








^ 1981 Bronco/F-Series Pages 40 and 41





^ 1982 Bronco/F-Series Page 40





^ 1984 Econoline Page 34





^ 1985 Econoline Page 34

ACTION:
Refer to the pages in this TSB article for the revised schematics.

OTHER APPLICABLE ARTICLES:
NONE

WARRANTY STATUS:
INFORMATION ONLY

OASIS CODES:
290000
