Home >> Ford Truck >> 1984 >> E 250 Van V8-6.9L DSL >> Repair and Diagnosis >> Brakes and Traction Control >> Diagrams

Brakes and Traction Control: Diagrams

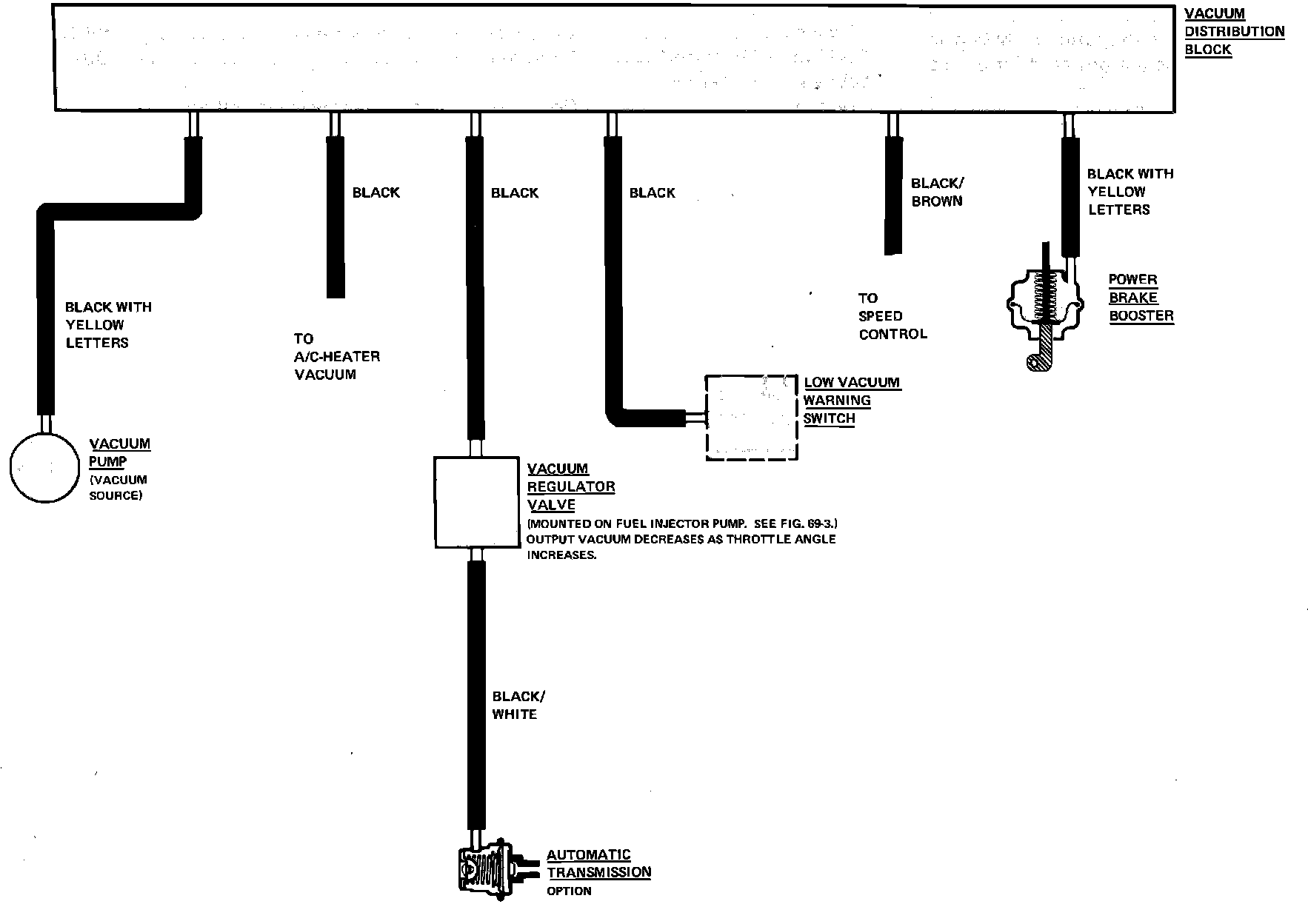

Fig. 6 Vacuum distribution. 1984 Econoline with diesel engine:
