Fig. 145 Calib. Code 4-98S-R0
Fig. 145 Calib. Code 4-98S-R0

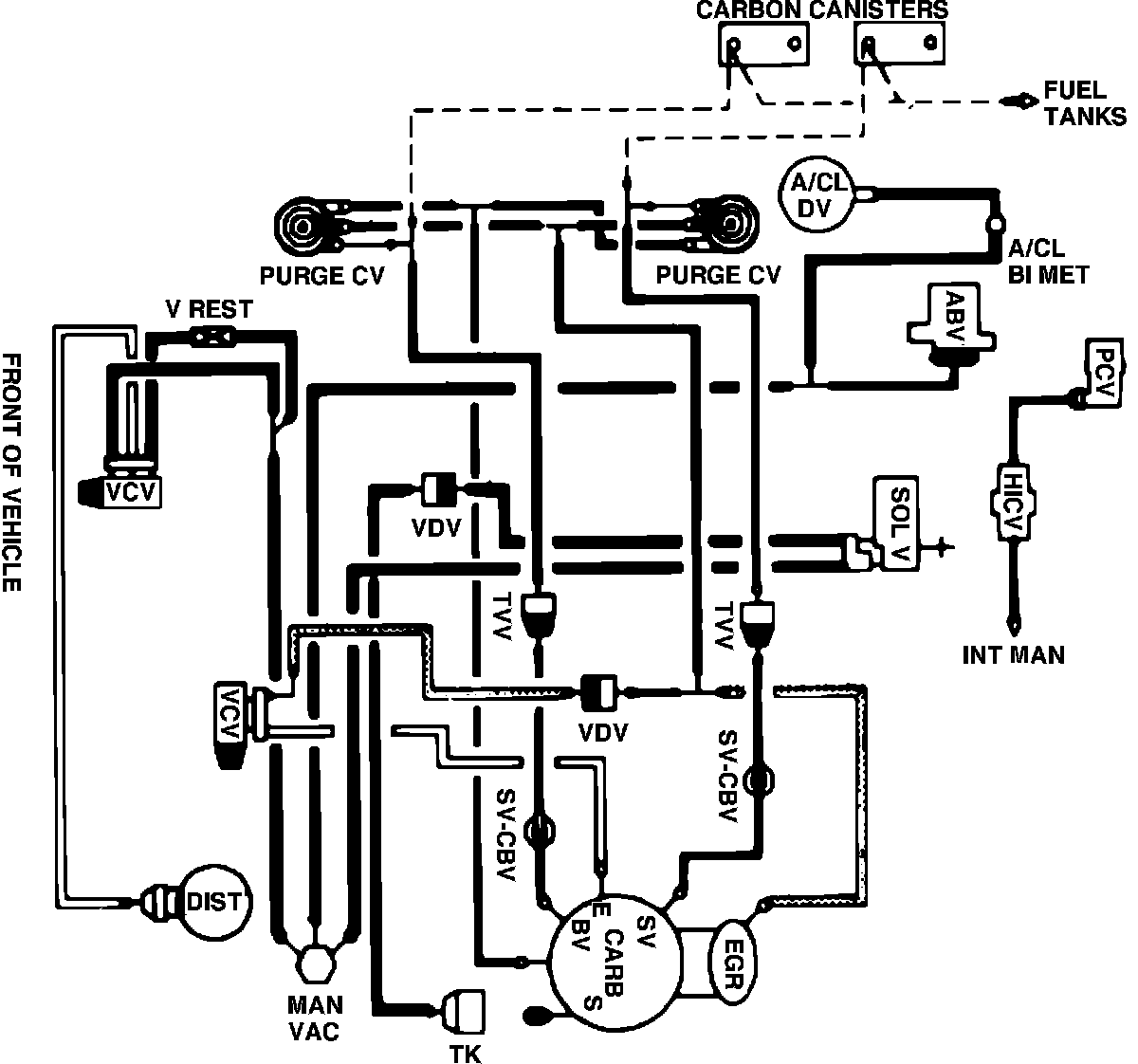

Fig. 145 Vacuum hose routing. 1984 V8-460 Calib. code 4-98S-R0:
