Ford Truck
>>
1984
>>
E 250 Van V8-460 7.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Fig. 143 Calib. Code 3-97J-R10
Fig. 143 Calib. Code 3-97J-R10

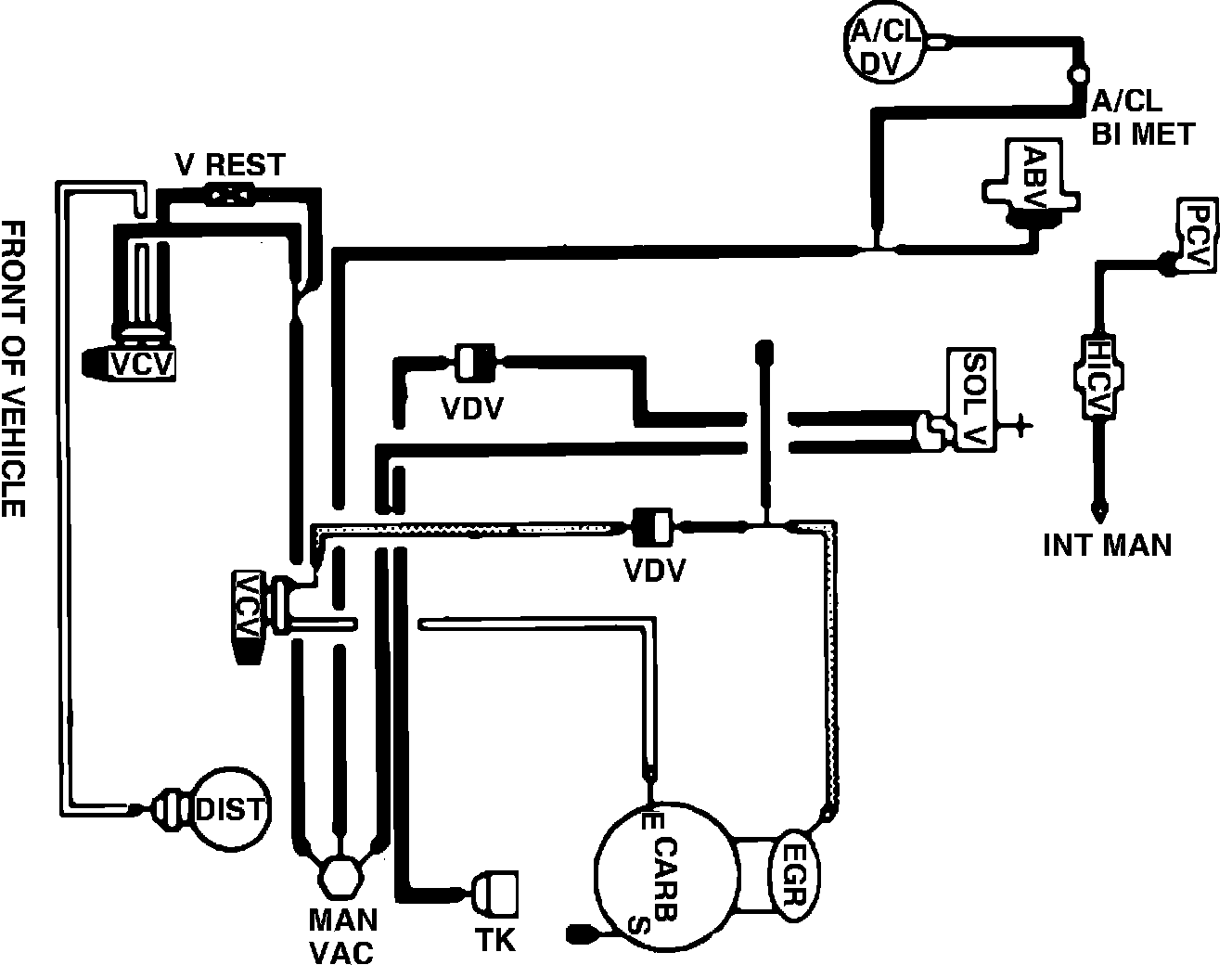

Fig. 143 Vacuum hose routing. 1984 V8-460 Calib. code 3-97J-R10:
