Ford Truck
>>
1984
>>
E 250 Van V8-460 7.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Air Injection
>>
Air Diverter Solenoid
>>
Locations

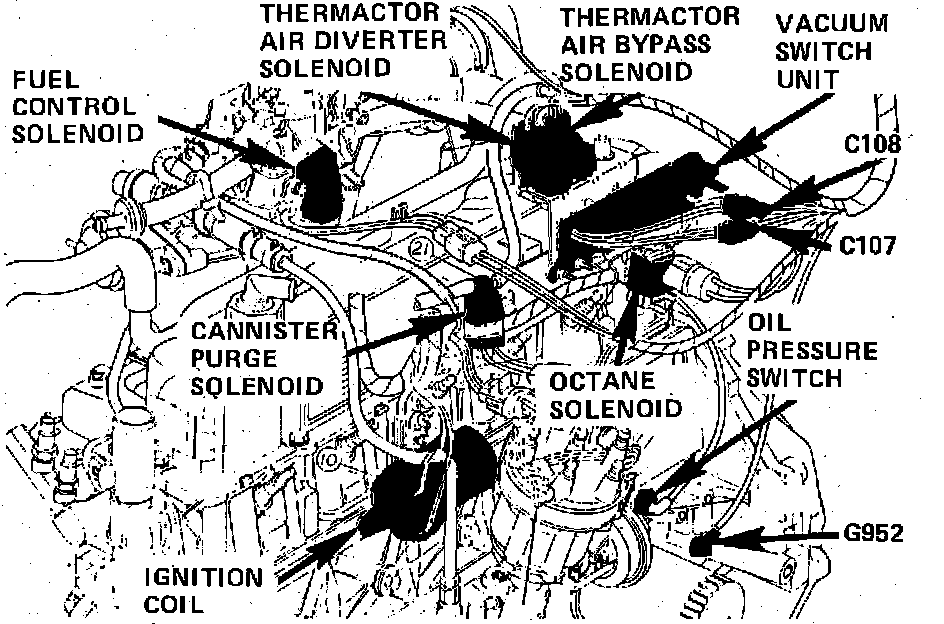

Air Diverter Solenoid: Locations
Top Of V8-460/7.:
Center Rear Of Engine On Valve Cover
Applicable to: 5 Engine
