Fig. 117 Calib. Code 4-54J-R11
Fig. 117 Calib. Code 4-54J-R11

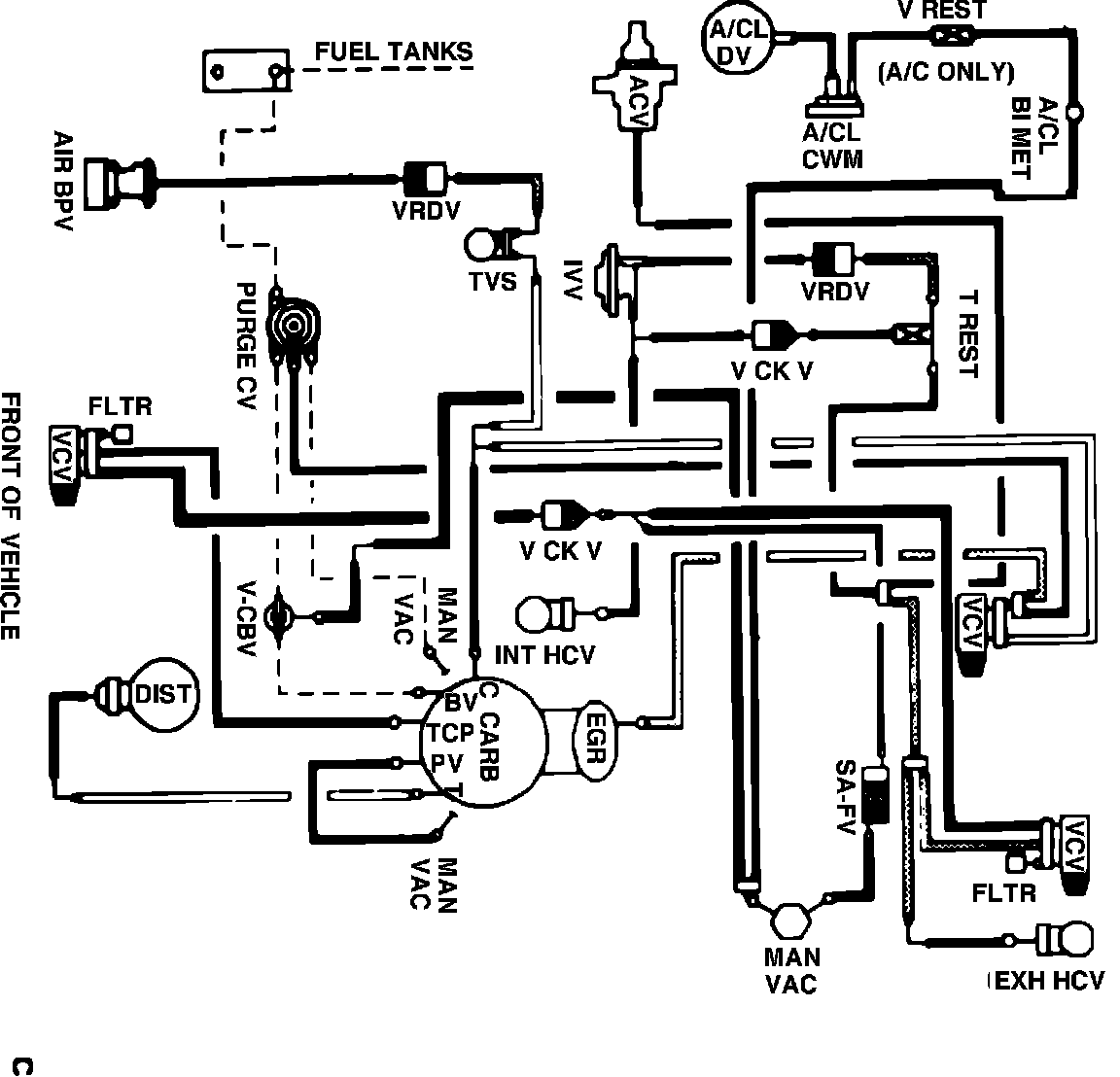

Fig. 117 Vacuum hose routing. 1984 V8-302 Calib. code 4-54J-R11:
