Fig. 90 Calib. Code 4-52R-R0
Fig. 90 Calib. Code 4-52R-R0

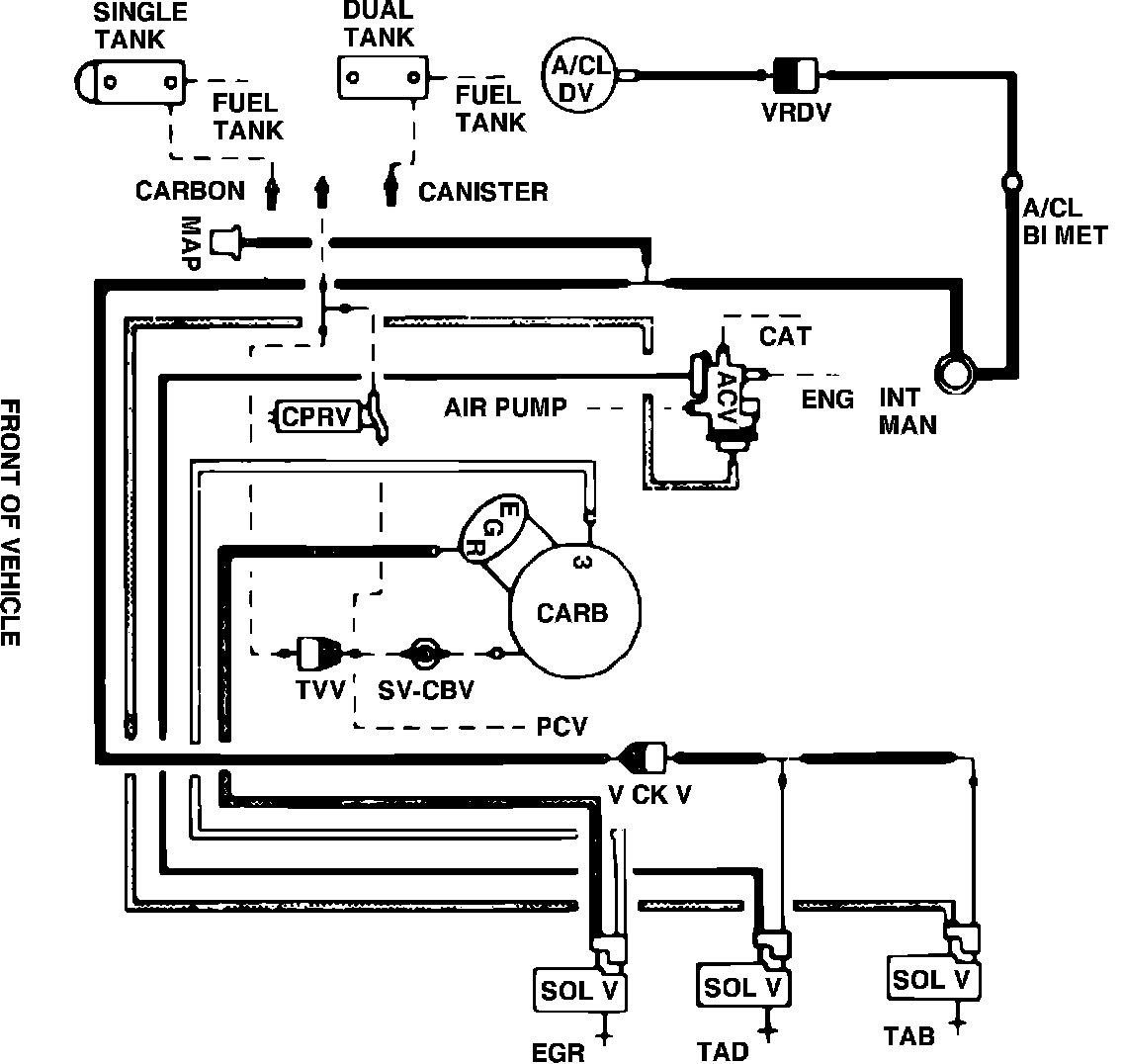

Fig. 90 Vacuum hose routing. 1984 6-300 Calib. code 4-52R-R0:
