Fig. 83 Calib. Code 4-51R-R0
Fig. 83 Calib. Code 4-51R-R0

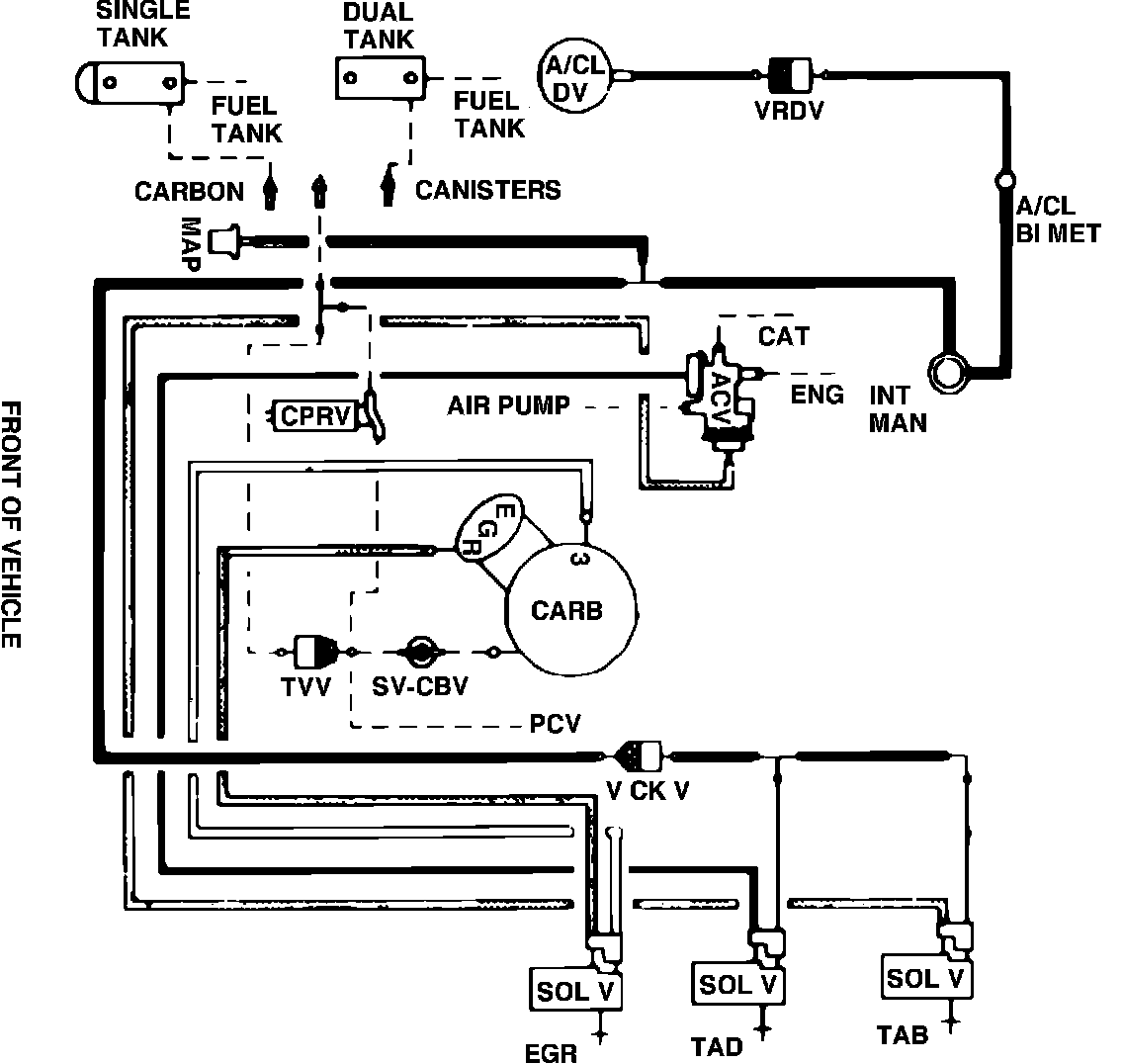

Fig. 83 Vacuum hose routing. 1984 6-300 Calib. code 4-51R-R0:
