Fig. 77 Calib. Code 4-51D-R1
Fig. 77 Calib. Code 4-51D-R1

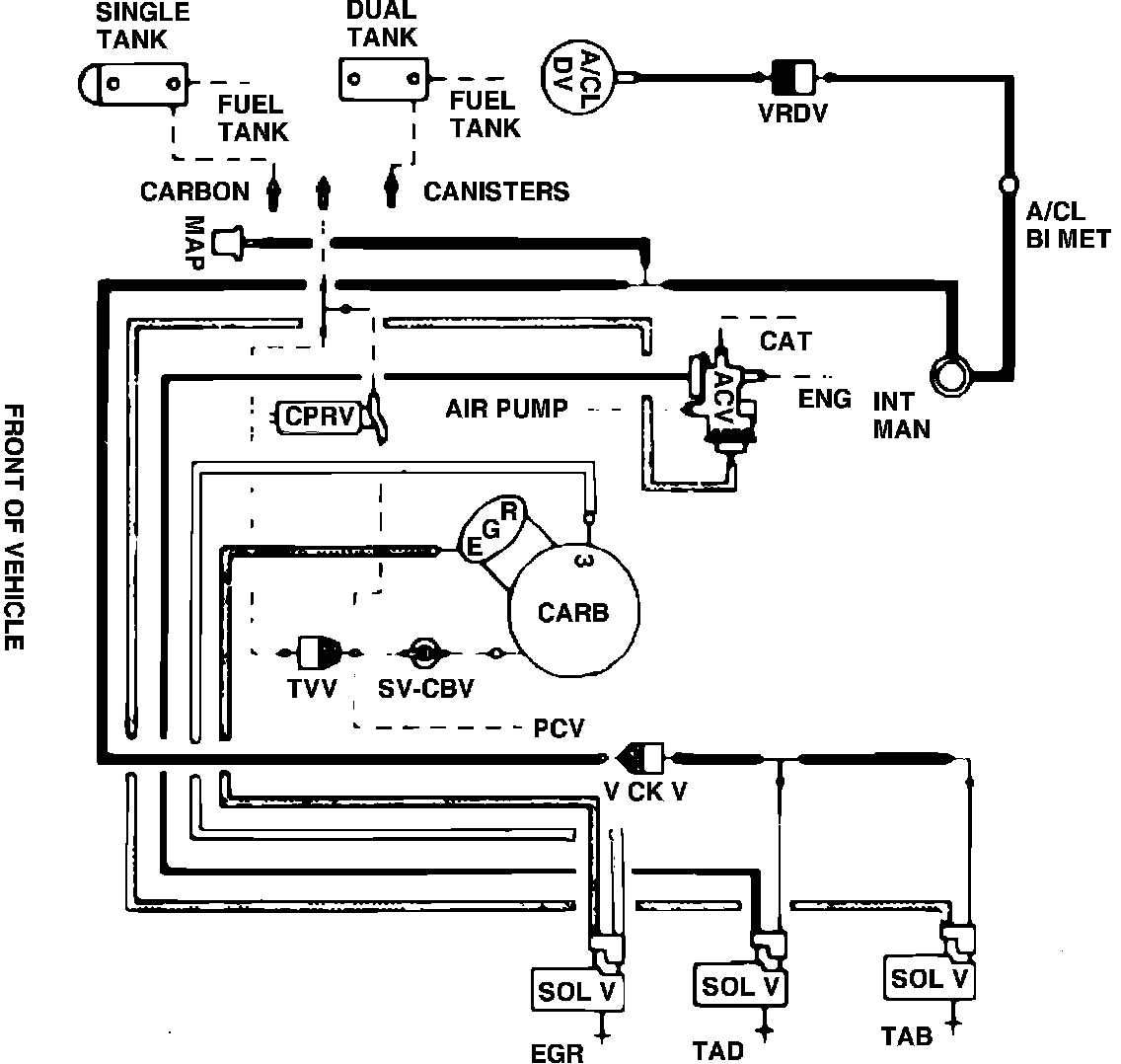

Fig. 77 Vacuum hose routing. 1984 6-300 Calib. code 4-51D-R1:
