TP Sensor - Poor Idle/Poor Economy/Lack of Power
84ford11Article No. 84-16-33
PERFORMANCE POOR - (4.9L) VEHICLES UNDER/8500# WITH BUILD DATES OF JOB #1 TO MARCH 22, 1984
LIGHT TRUCKS 1984 E-150/250
The routing of the EEC IV wiring harness on the above vehicles may cause the throttle position (TP) sensor connector wire to contact the carburetor spacer. This will cause deterioration of the wiring and possibly other drive concerns such as poor idle, lack of power, poor economy, etc. which may be itermittent and/or continuous.

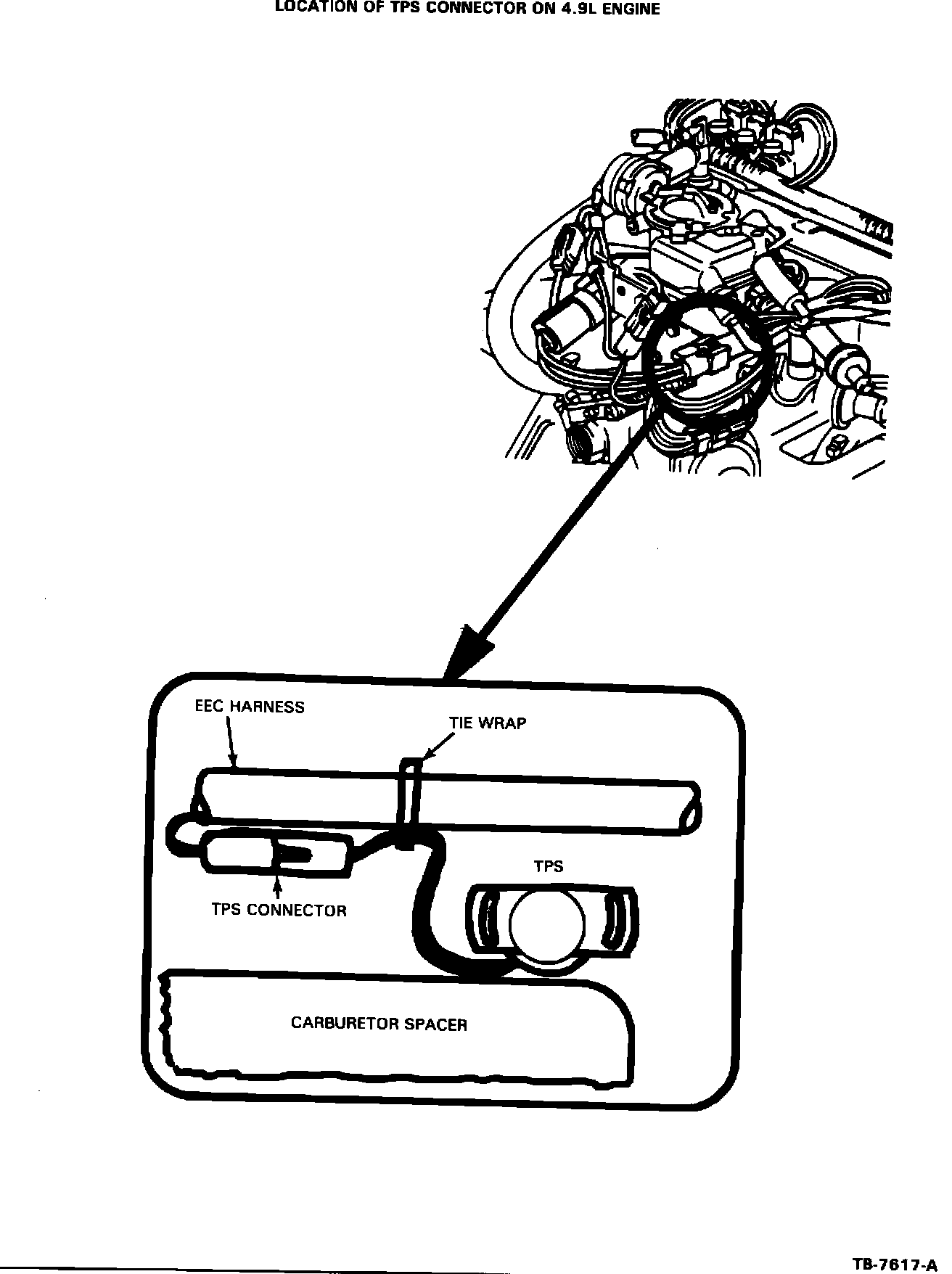

FIGURE 28:
To service the above concerns check the condition and position of the TP sensors connector wiring. If the connector and wiring is found as shown in Figure 28 perform the following:
1. Perform EEC IV Quick Test. Service as required.
2. If the Quick Test indicates a pass, visually inspect the wiring for any deterioration or melting. Service as necessary.
3. Tie the TP connector wiring to the EEC IV wiring harness as shown in Figure 28.
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: Reimbursable within the provisions of the Warranty and Policy Manual.
OPERATION: SP9989C84
TIME: 0.6 Hr. DLR. CODING: Basic Part No. 9B989 Code: 95
