Fig. 93 Calib. Code 4-52W-R0
Fig. 93 Calib. Code 4-52W-R0

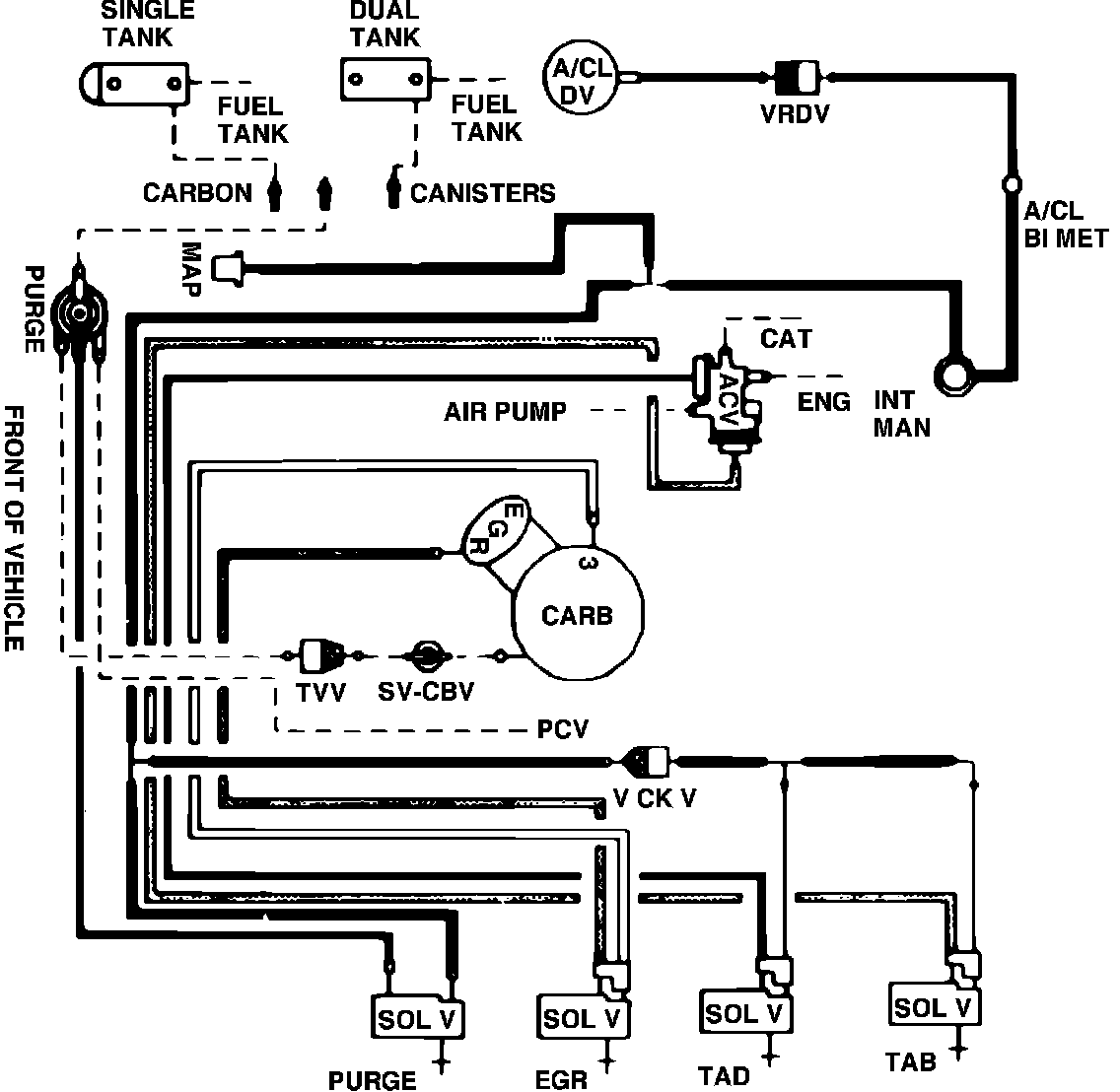

Fig. 93 Vacuum hose routing. 1984 6-300 Calib. code 4-52W-R0:
