Home
>>
Ford Truck
>>
1984
>>
E 250 Van L6-300 4.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Powertrain Management
>>
Emission Control Systems
>>
Fig. 86 Calib. Code 4-51T-R0
Fig. 86 Calib. Code 4-51T-R0

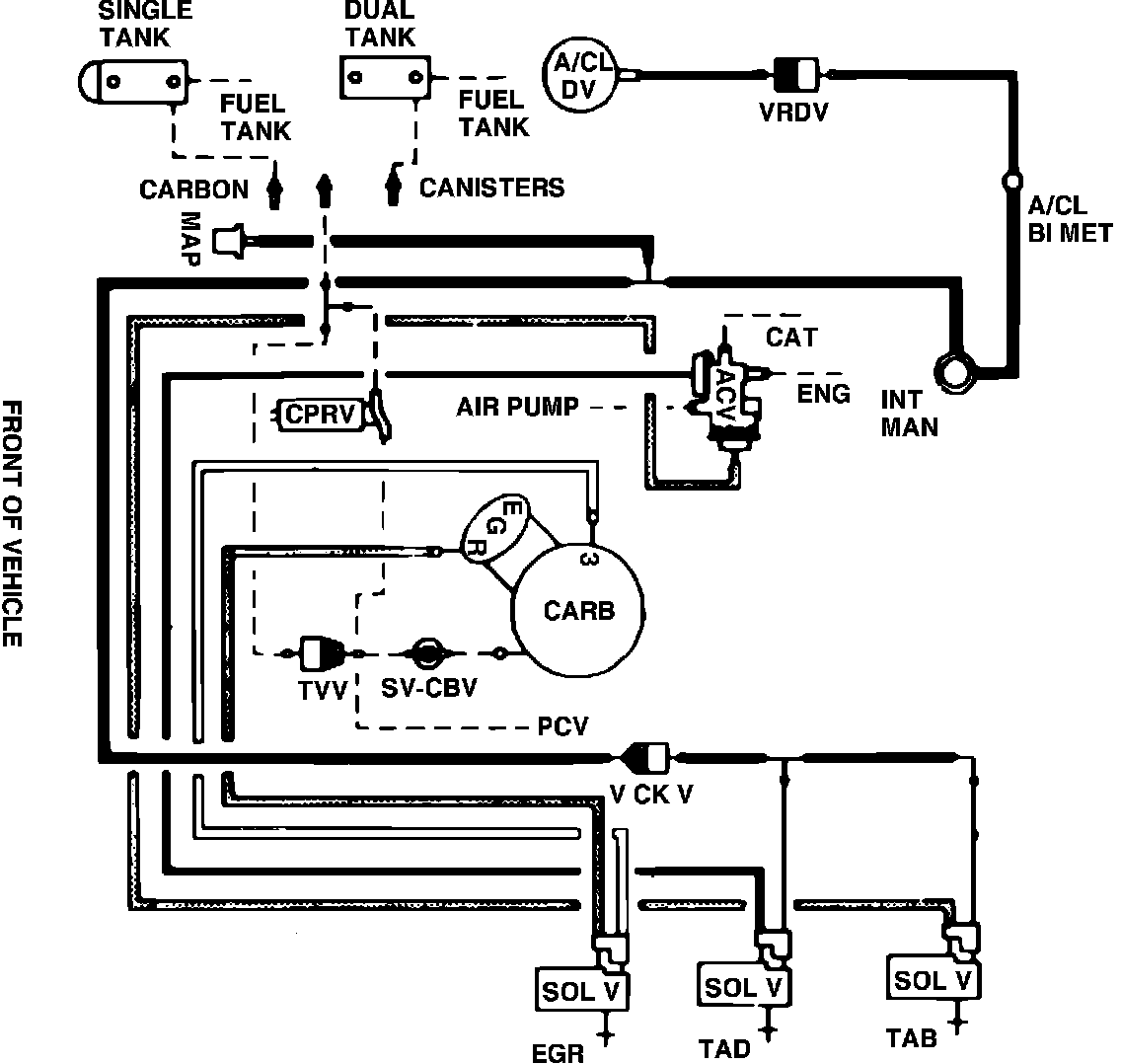

Fig. 86 Vacuum hose routing. 1984 6-300 Calib. code 4-51T-R0:
