Fig. 78 Calib. Code 4-51E-R0
Fig. 78 Calib. Code 4-51E-R0

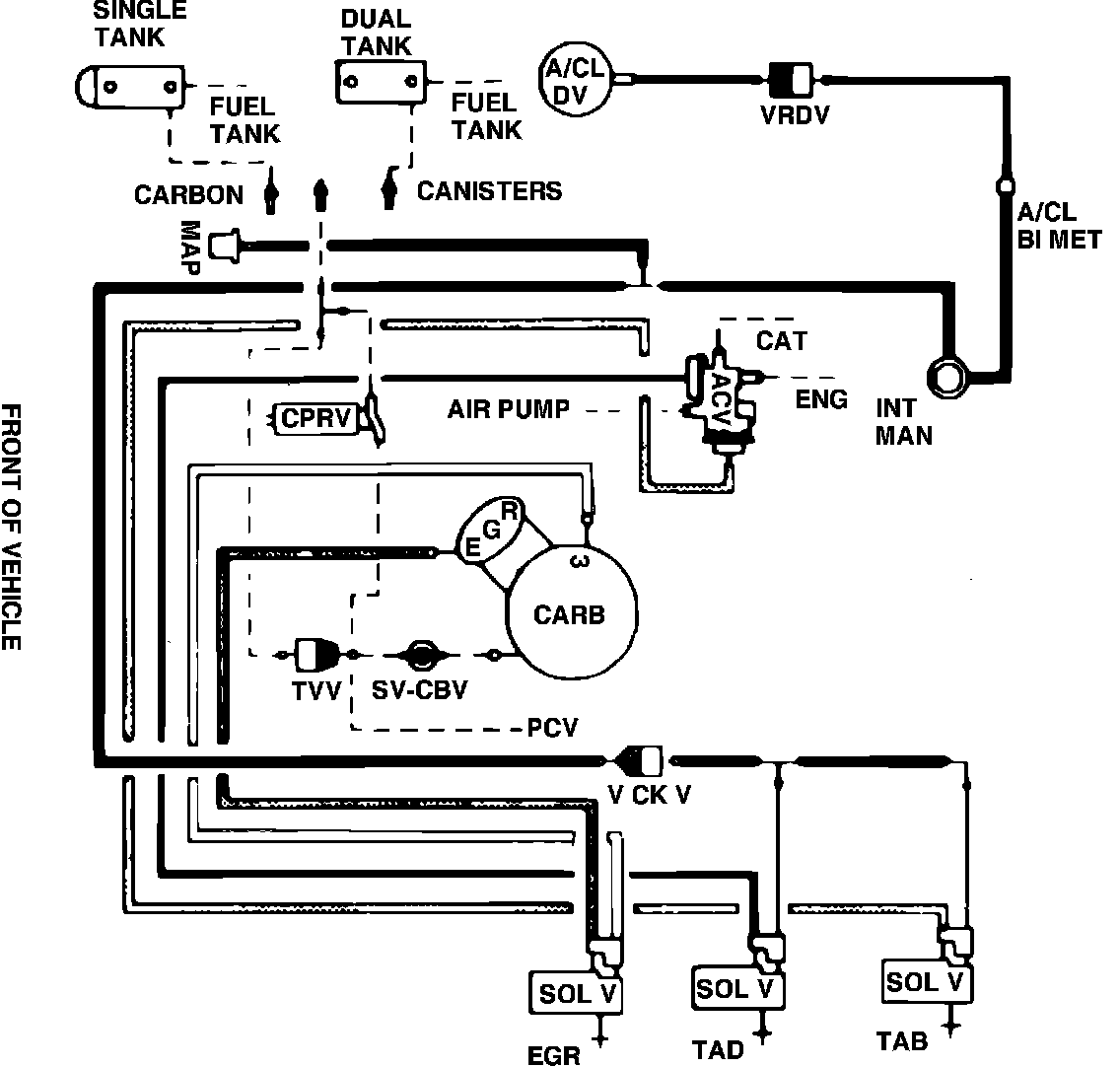

Fig. 78 Vacuum hose routing. 1984 6-300 Calib. code 4-51E-R0:
