System Diagram

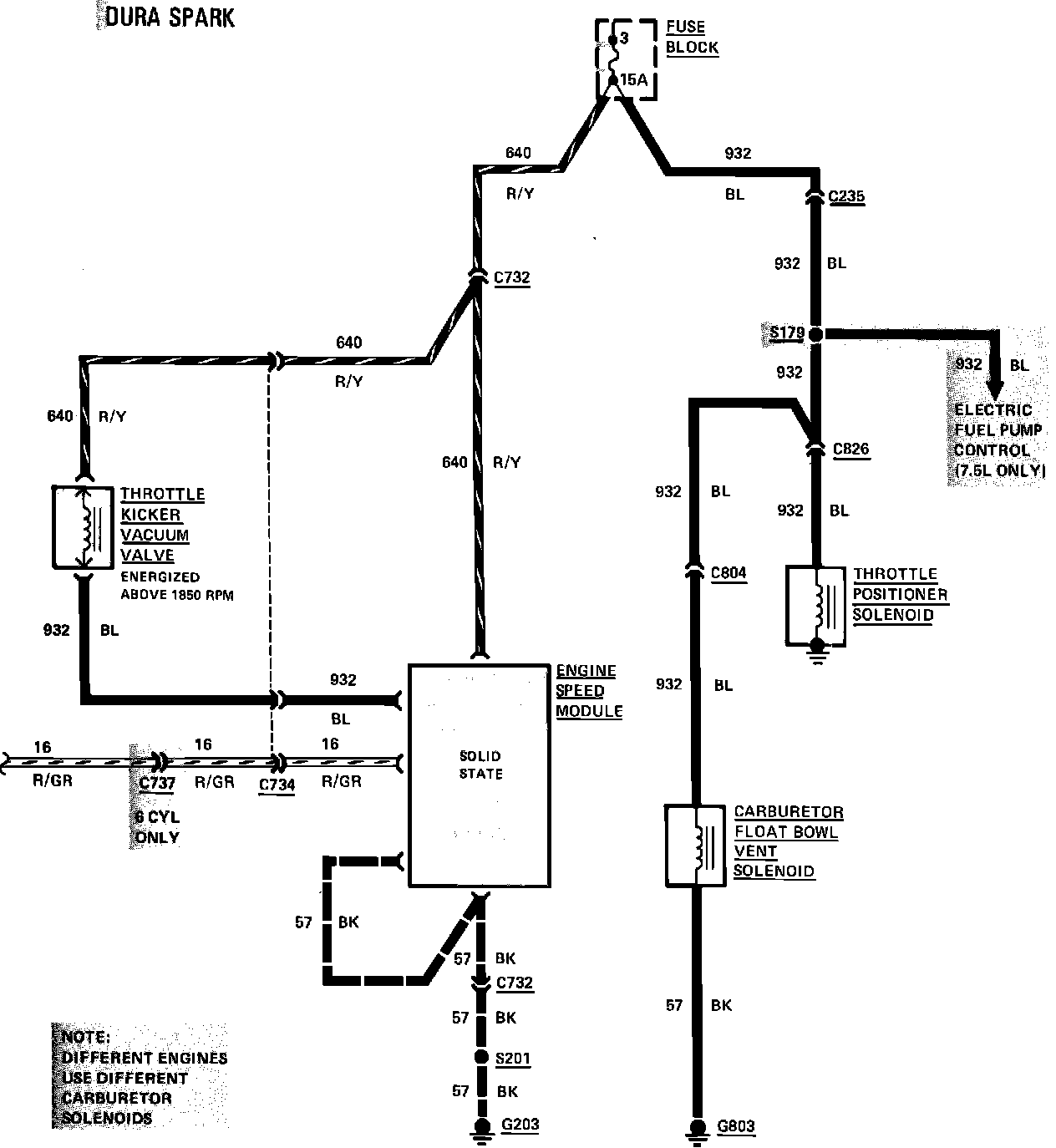

Fig. 89 Ignition & starting W/DuraSpark (Part 1 of 2):

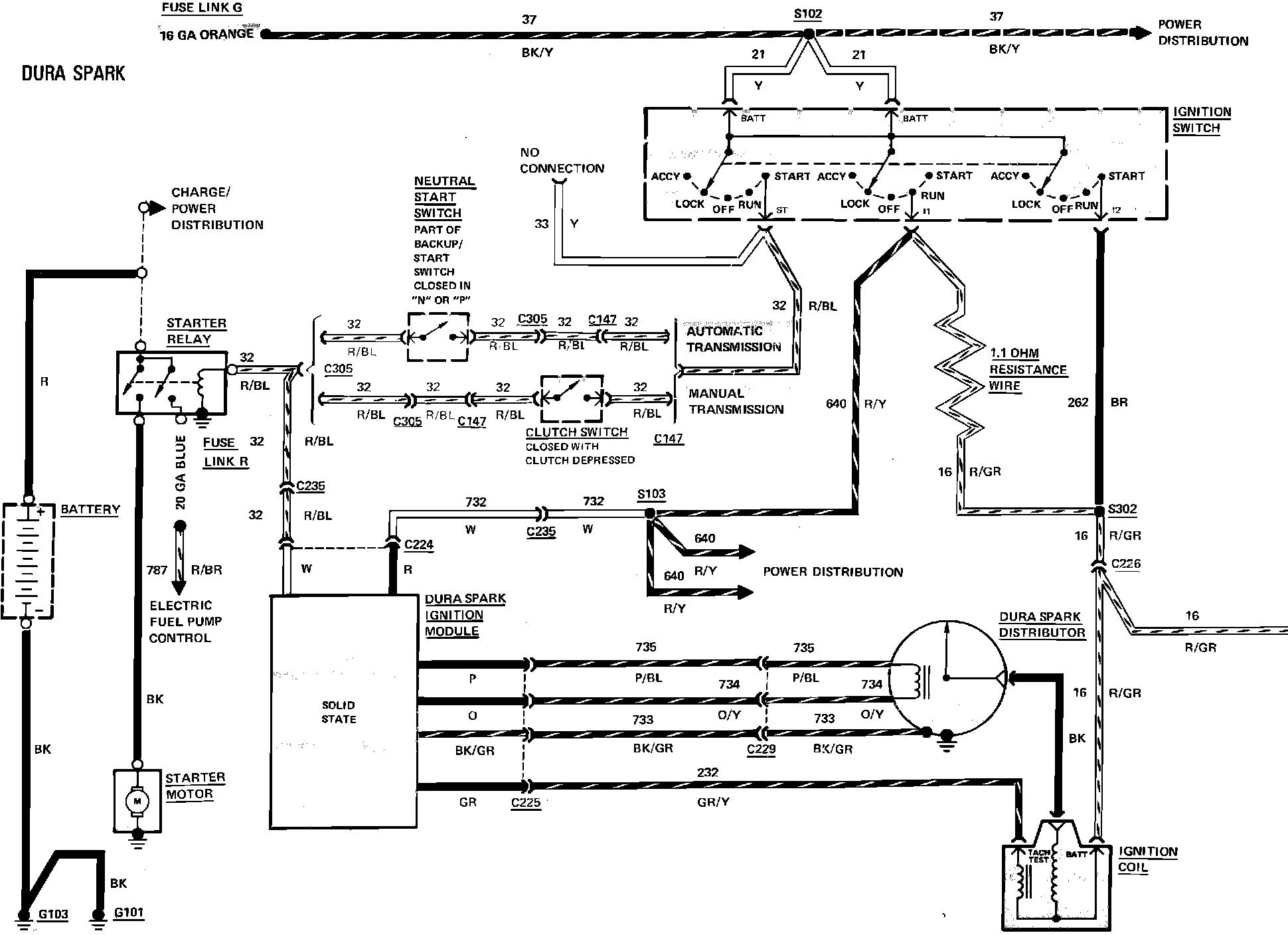

Fig. 89 Ignition & starting W/DuraSpark (Part 2 of 2):

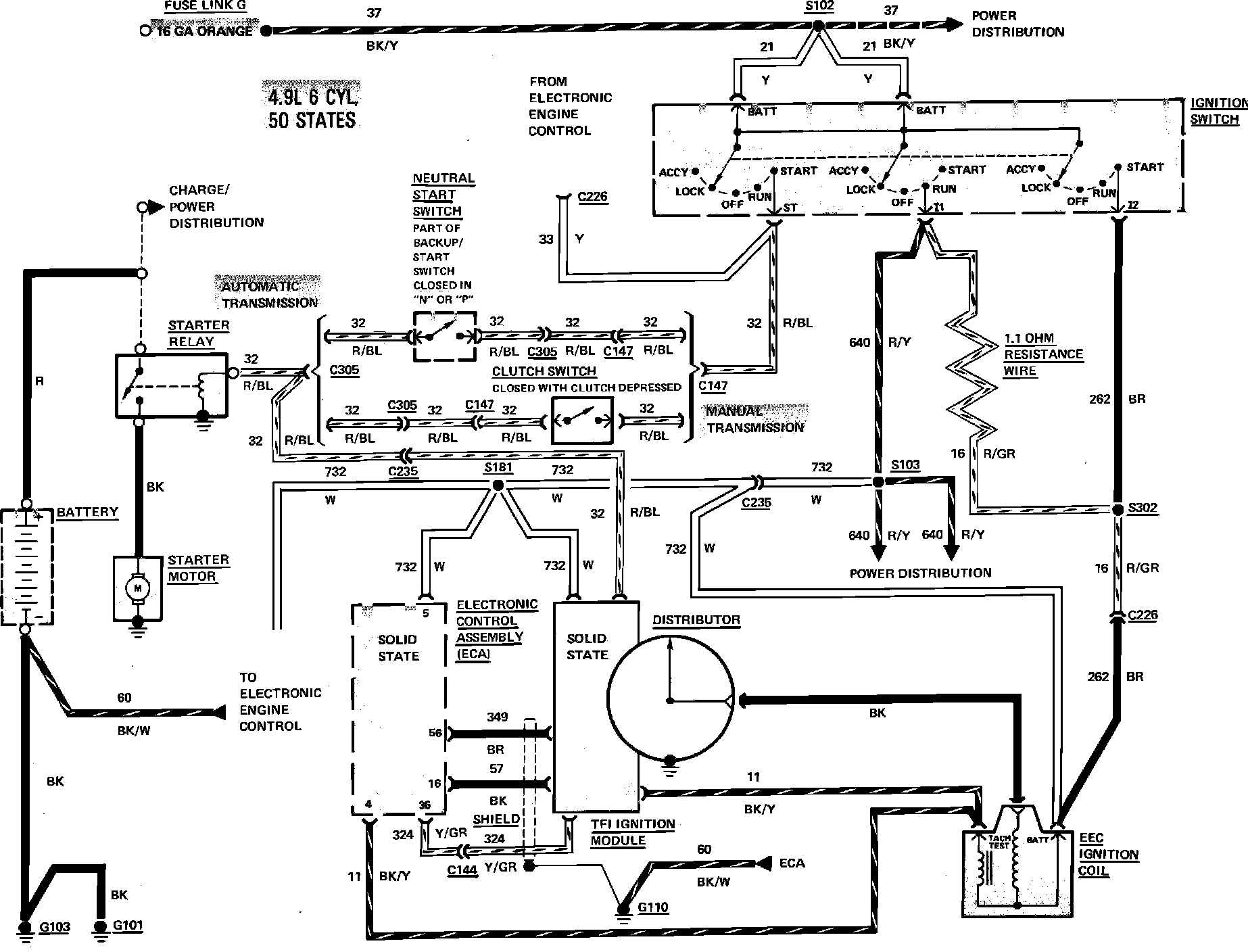

Fig.90 Ignition & starting 1984 Econoline with 6 cyl EEC:
