System Diagram

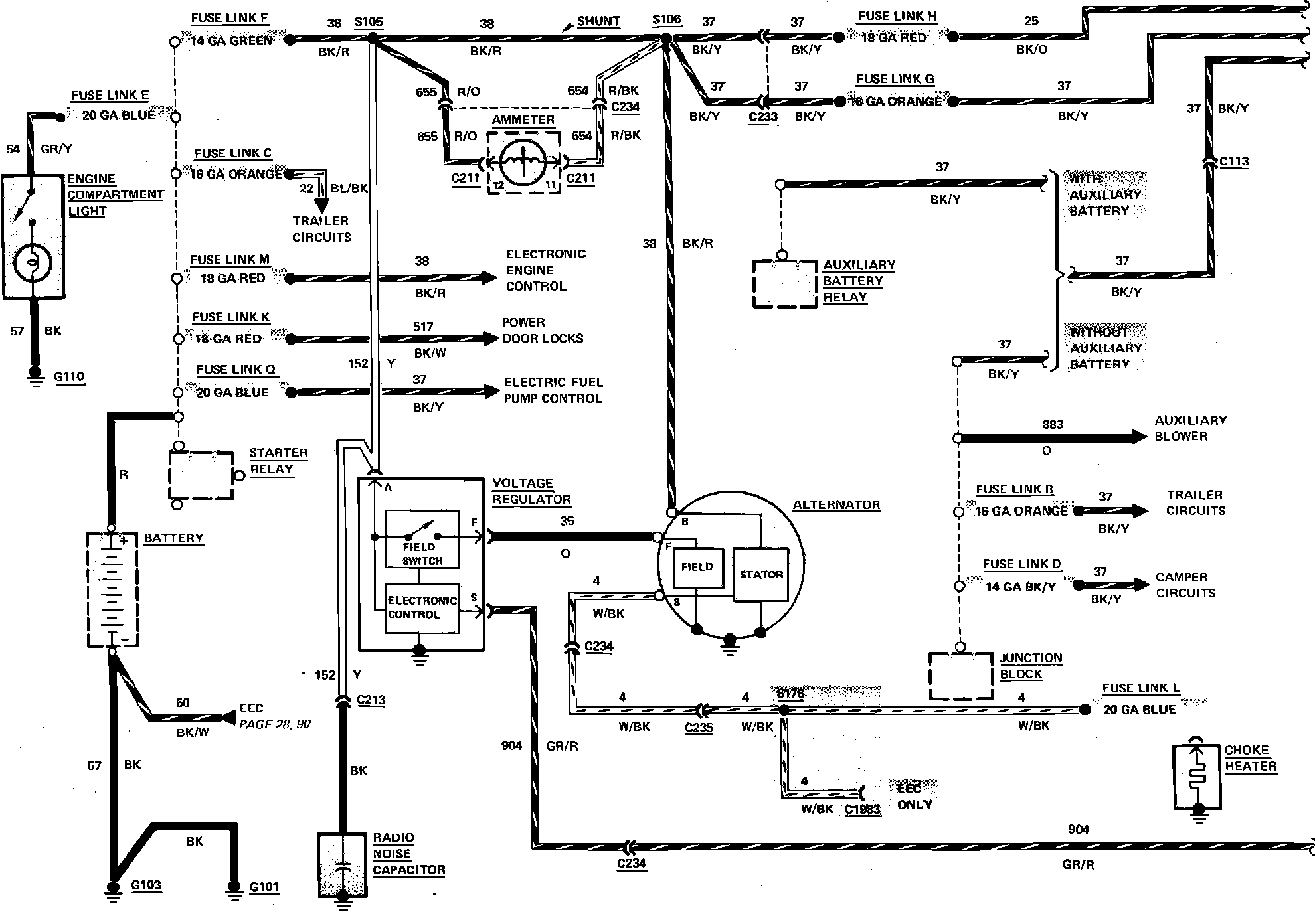

Fig. 32 Charging system & power distribution wiring circuit (Part 1 of 2). 1984 Econoline with gas engine less gauges:

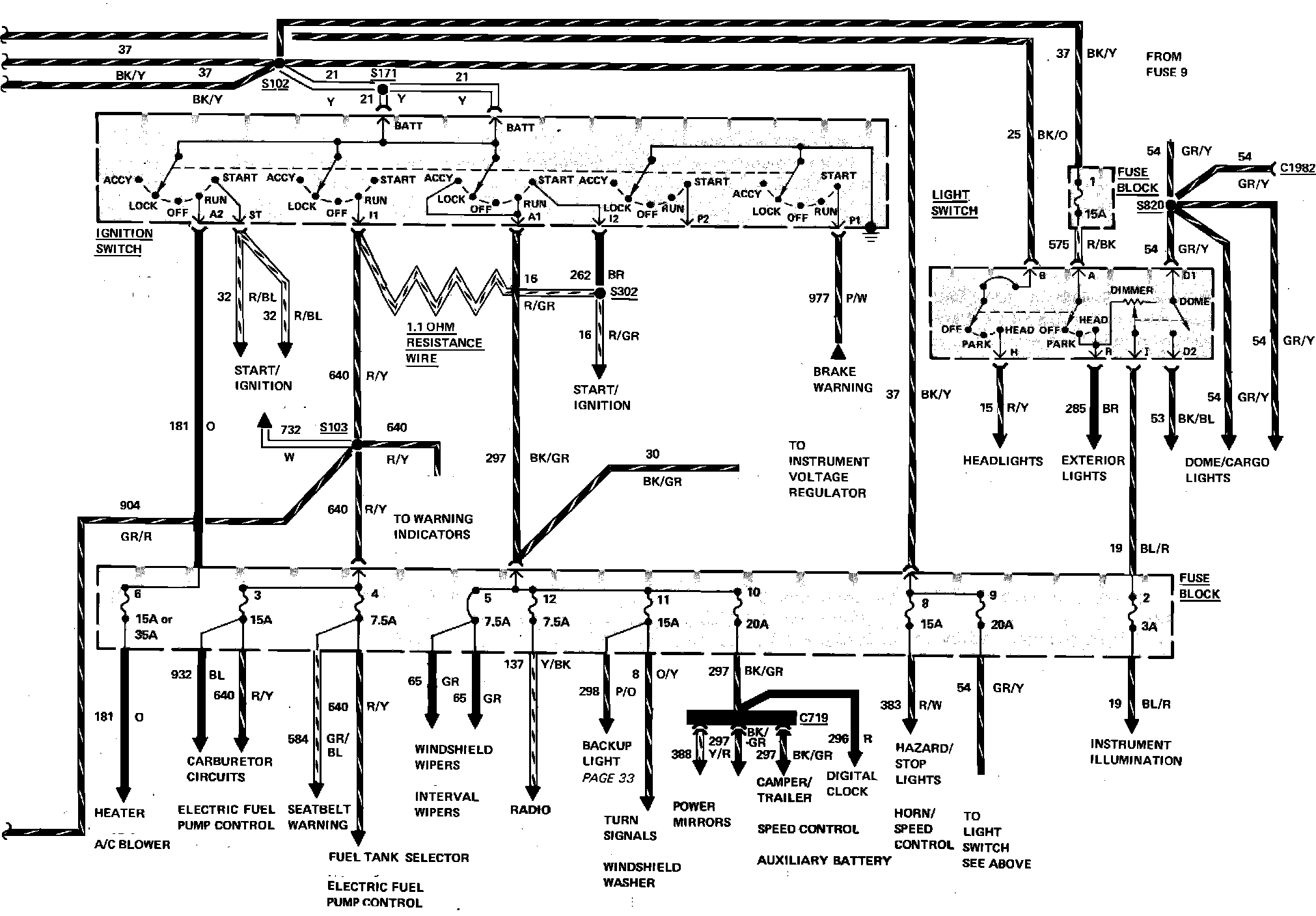

Fig. 32 Charging system & power distribution wiring circuit (Part 2 of 2). 1984 Econoline with gas engine less gauges:

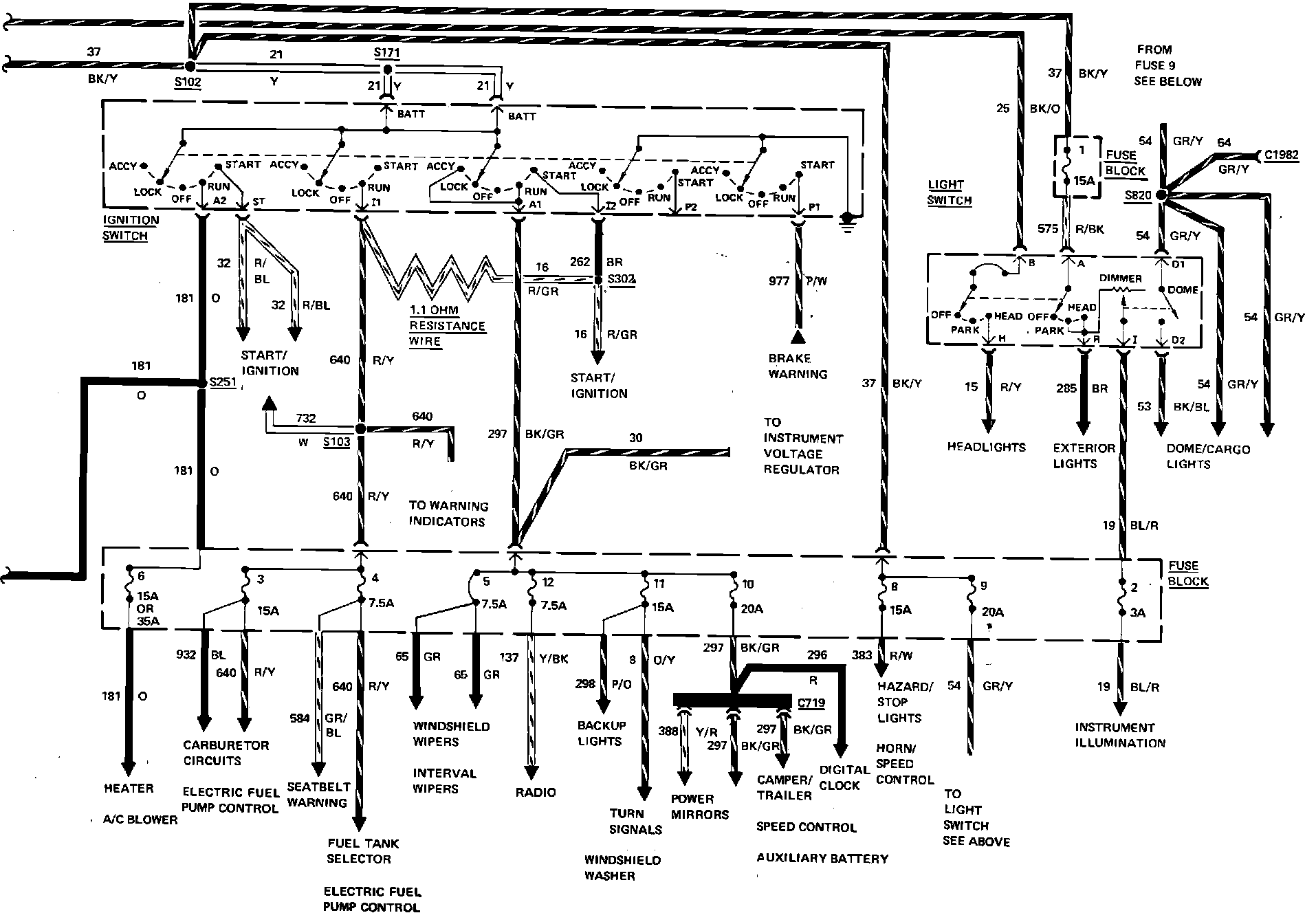

Fig. 33 Charging system & power distribution wiring circuit (Part 1 of 2). 1984 Econoline with gas engine & gauges:

Fig. 33 Charging system & power distribution wiring circuit (Part 2 of 2). 1984 Econoline with gas engine & gauges:
