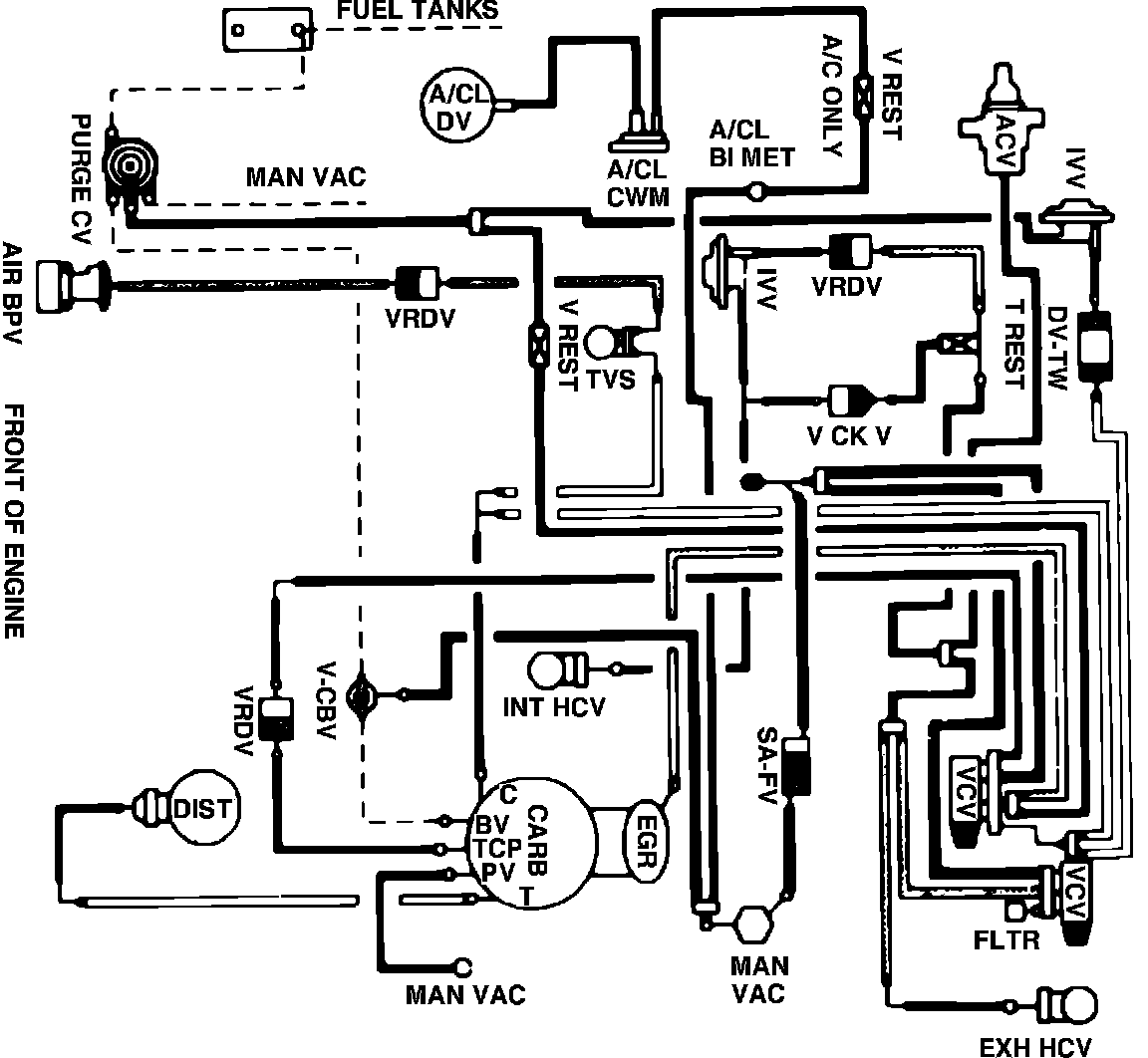

Fig. 96 Calib. Code 4-53F-R11
Fig. 96 Calib. Code 4-53F-R11
Fig. 96 Vacuum hose routing. 1984 V8-302 Calib. code 4-53F-R11:
