Fig. 95 Calib. Code 4-53F-R10
Fig. 95 Calib. Code 4-53F-R10

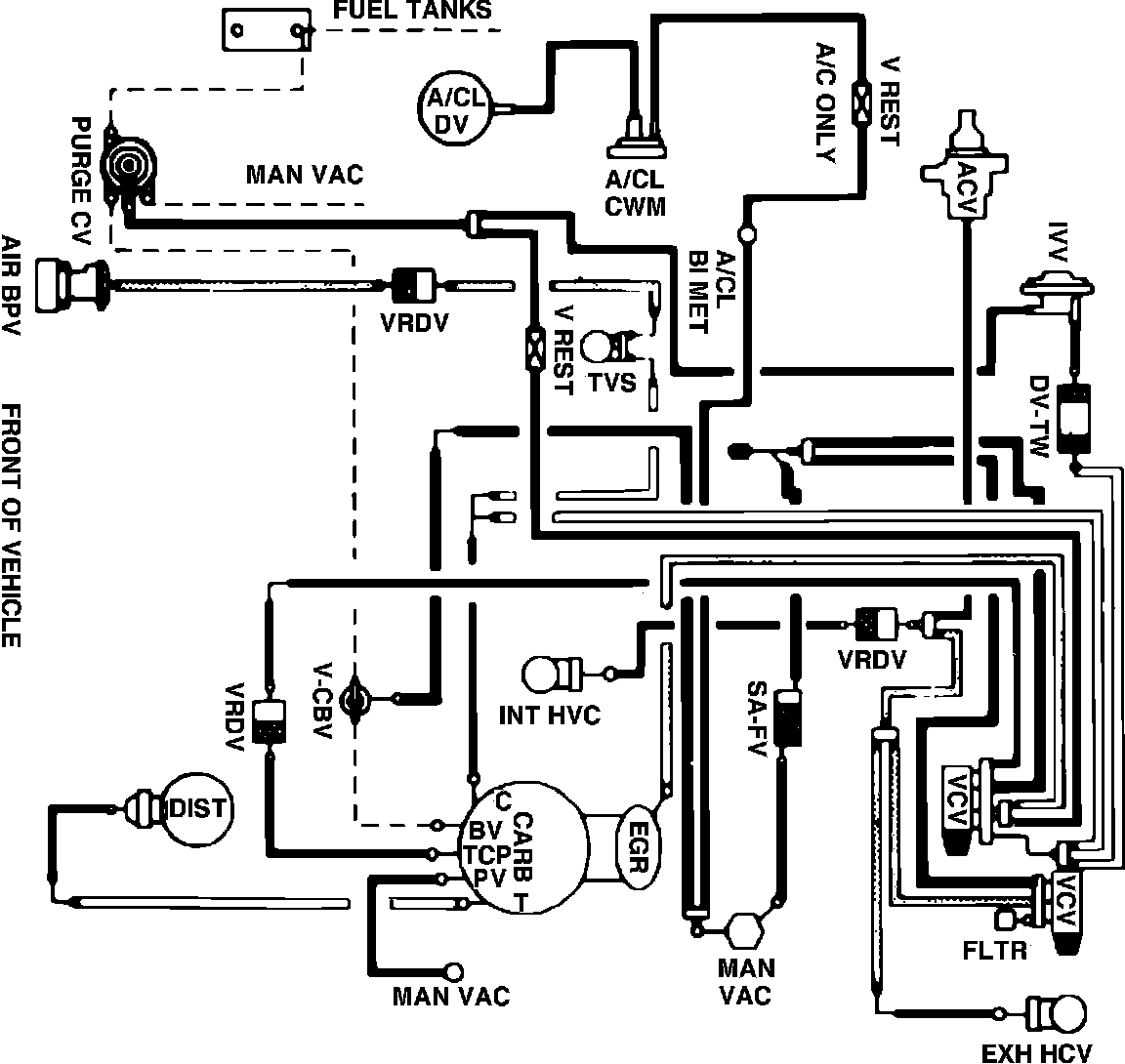

Fig. 95 Vacuum hose routing. 1984 V8-302 Calib. code 4-53F-R10:
