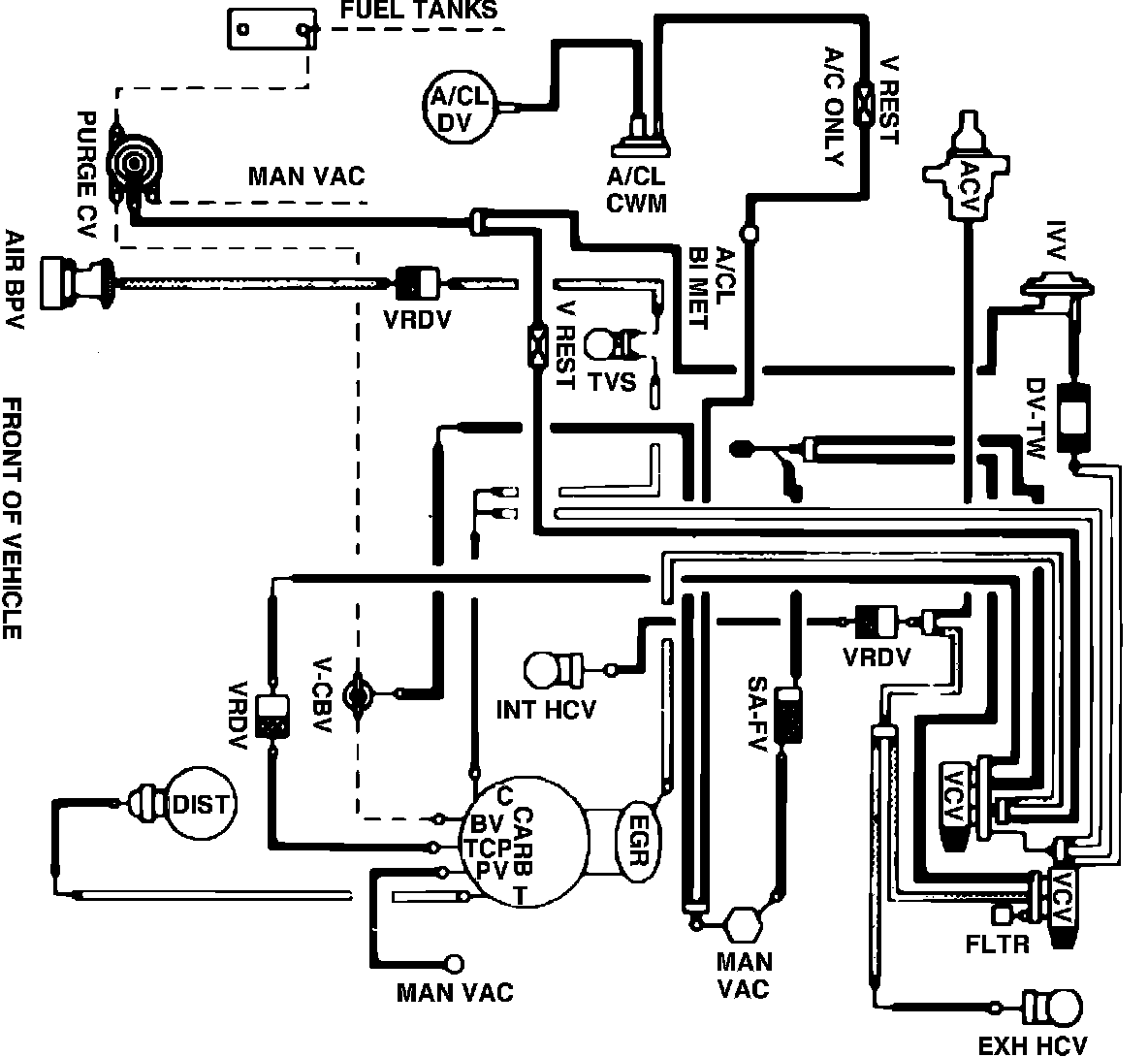

Fig. 94 Calib. Code 4-53F-R0
Fig. 94 Calib. Code 4-53F-R0
Fig. 94 Vacuum hose routing. 1984 V8-302 Calib. code 4-53F-R0:
