Fig. 130 Calib. Code 4-54W-R11
Fig. 130 Calib. Code 4-54W-R11

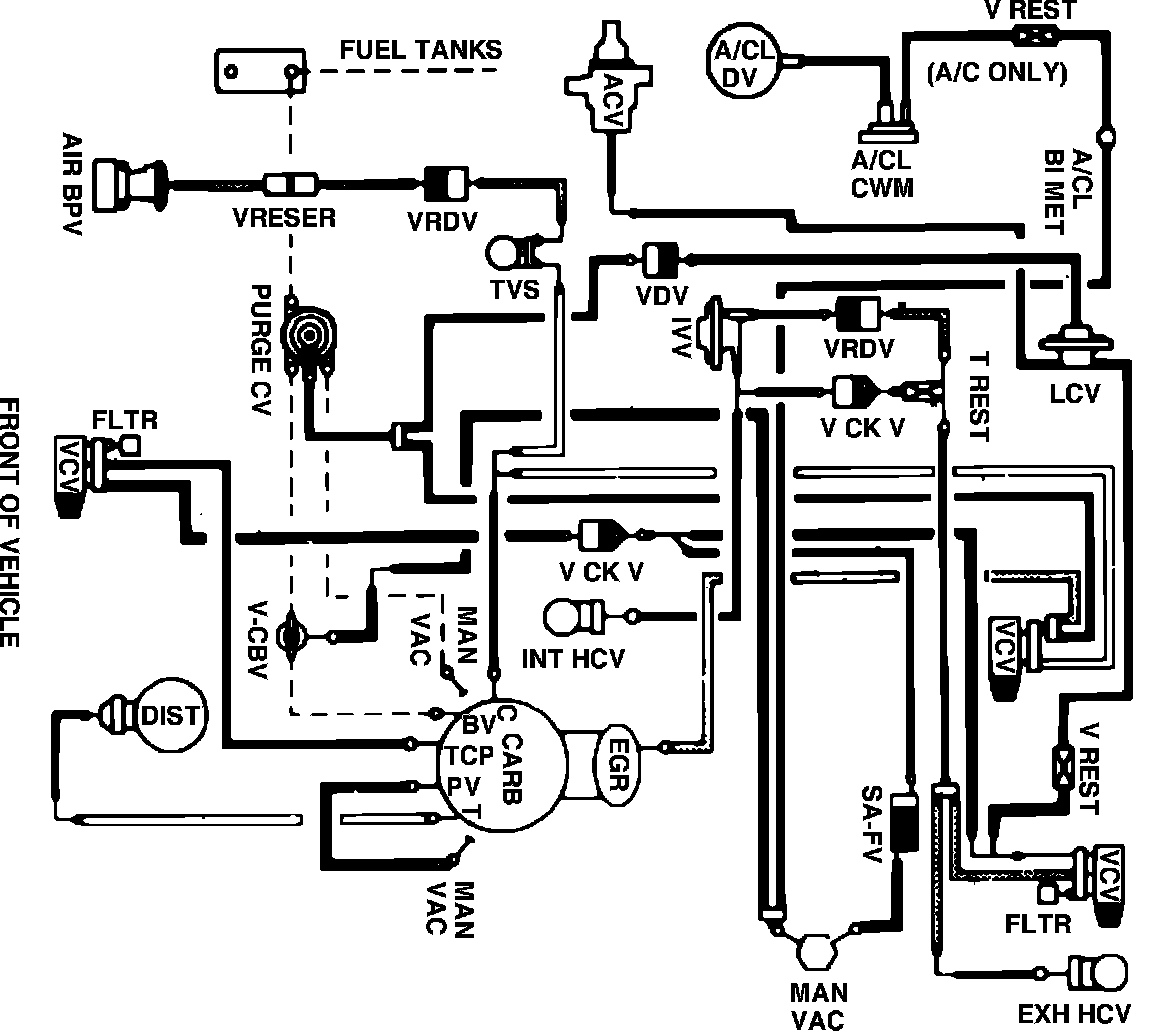

Fig. 130 Vacuum hose routing. 1984 V8-302 Calib. code 4-54W-R11:
