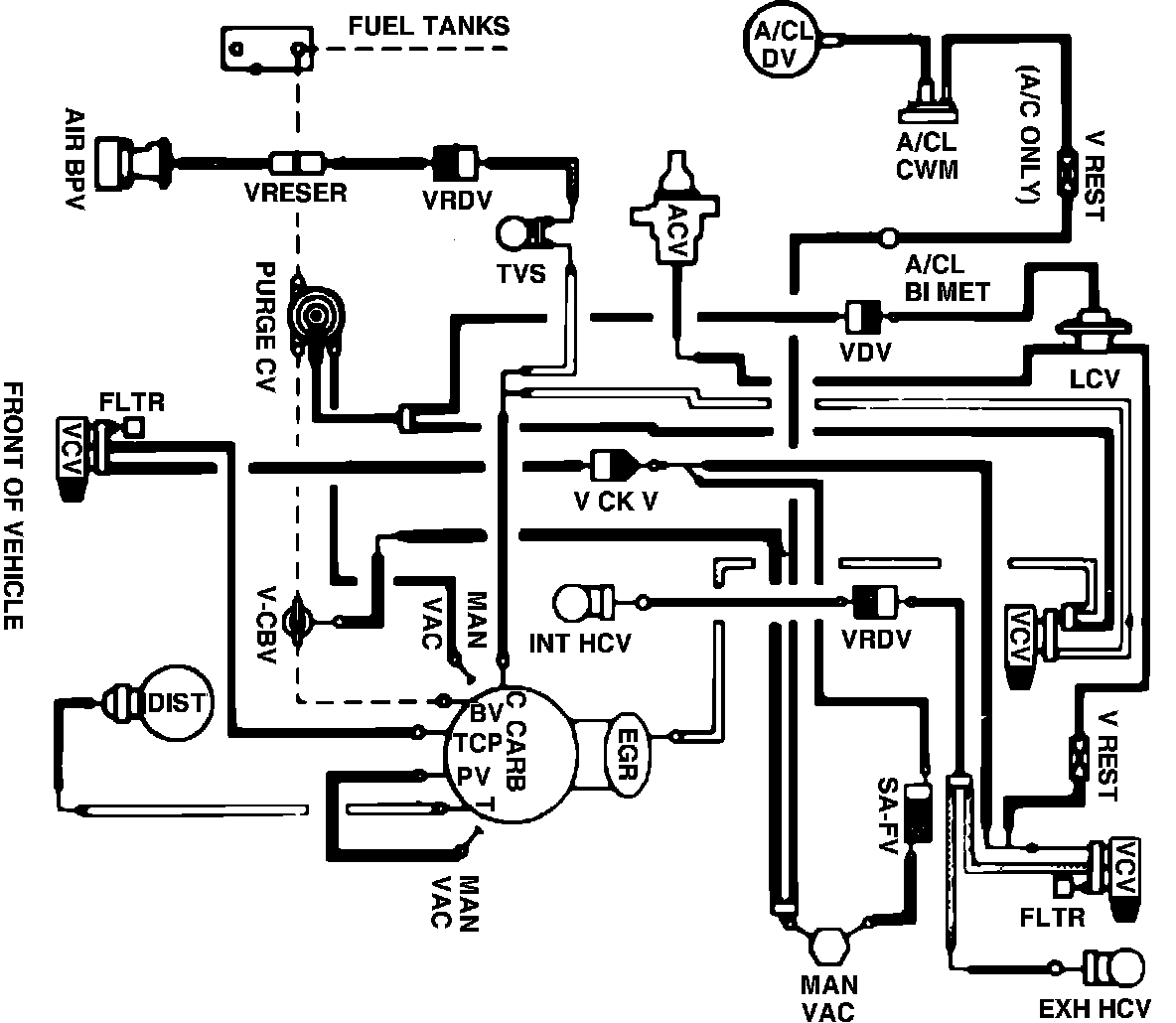

Fig. 129 Calib. Code 4-54W-R10
Fig. 129 Calib. Code 4-54W-R10
Fig. 129 Vacuum hose routing. 1984 V8-302 Calib. code 4-54W-R10:
