Fig. 128 Calib. Code 4-54W-R0
Fig. 128 Calib. Code 4-54W-R0

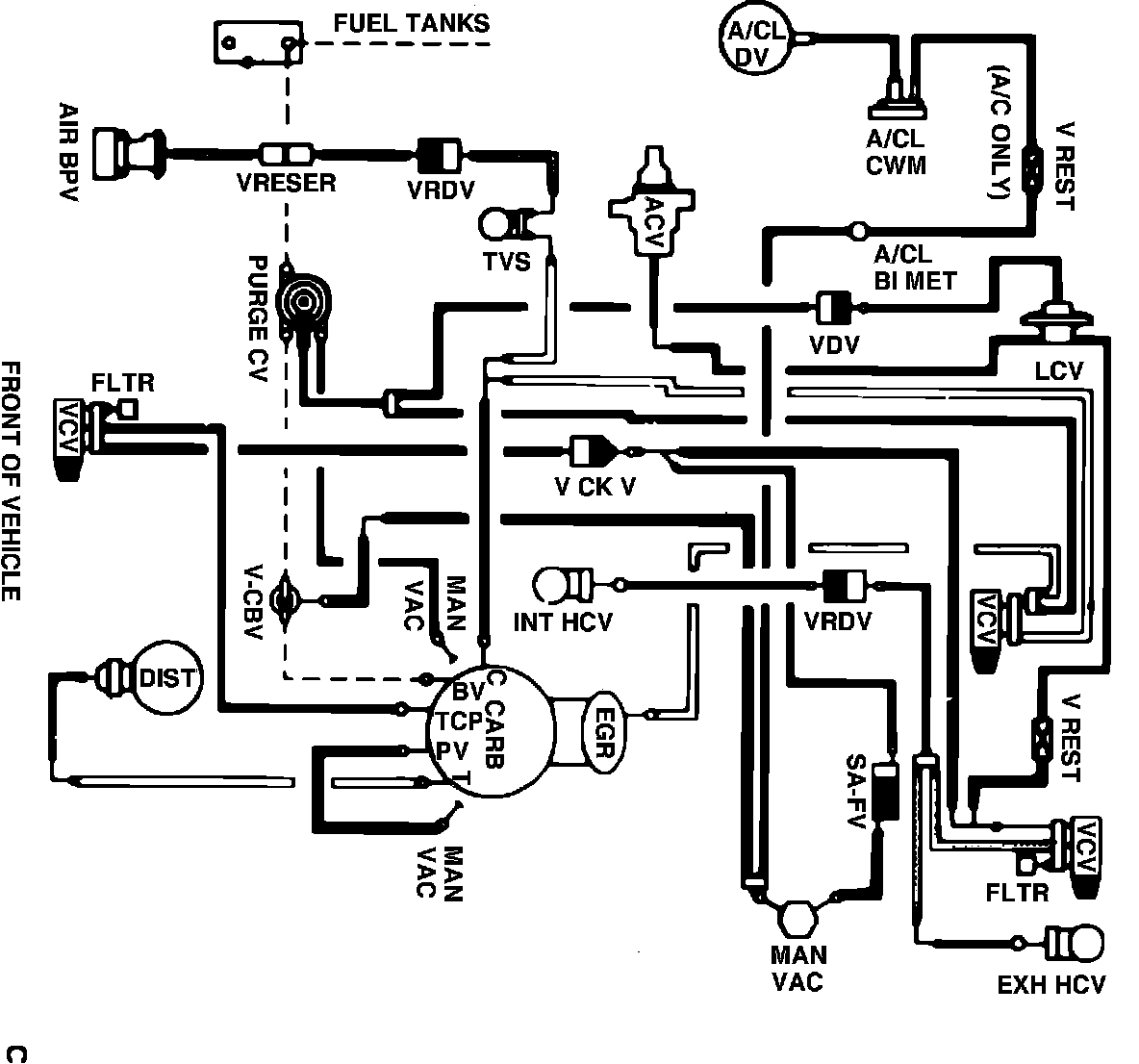

Fig. 128 Vacuum hose routing. 1984 V8-302 Calib. code 4-54W-R0:
