Fig. 125 Calib. Code 4-54T-R10
Fig. 125 Calib. Code 4-54T-R10

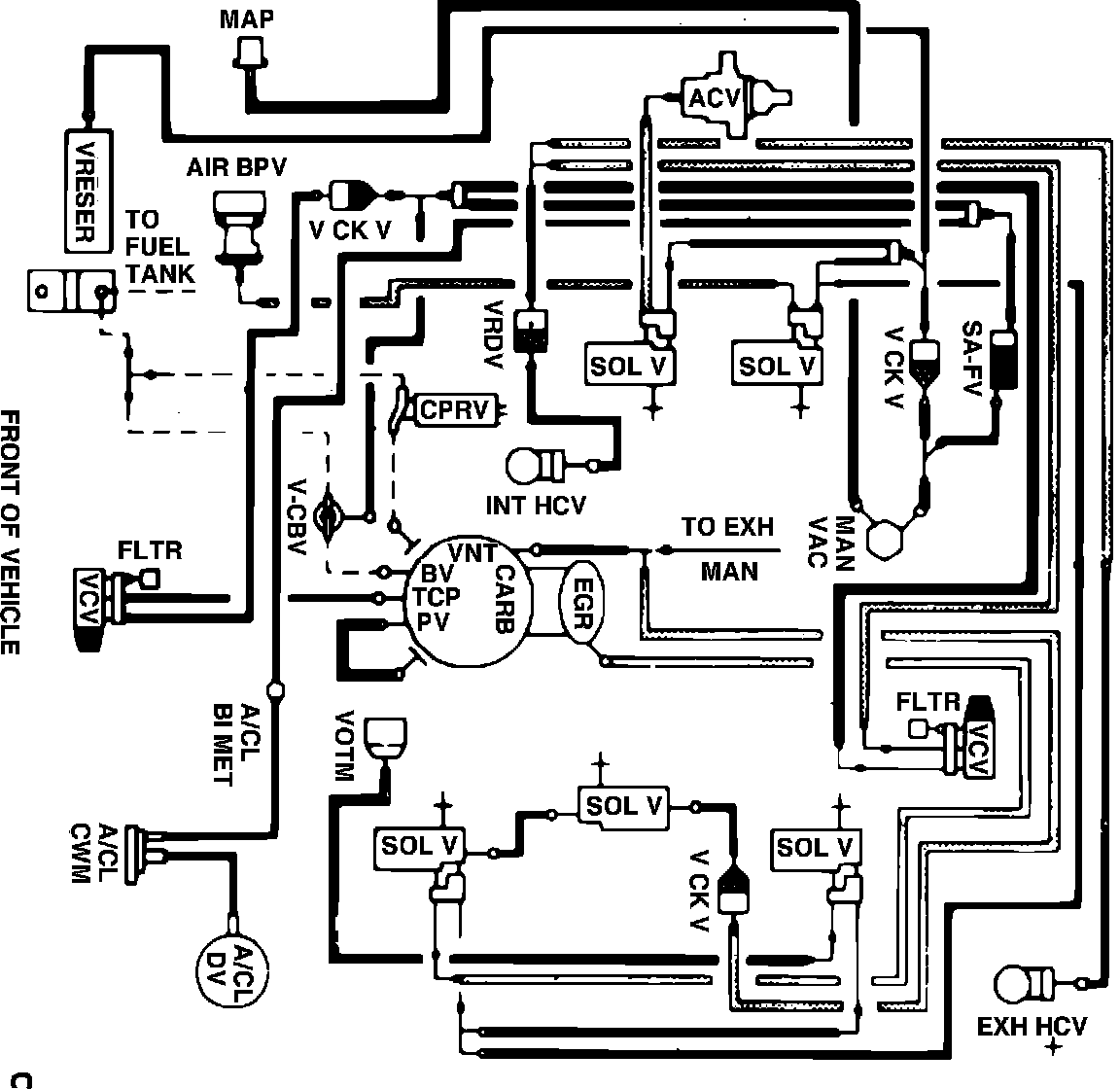

Fig. 125 Vacuum hose routing. 1984 V8-302 Calib. code 4-54T-R10:
