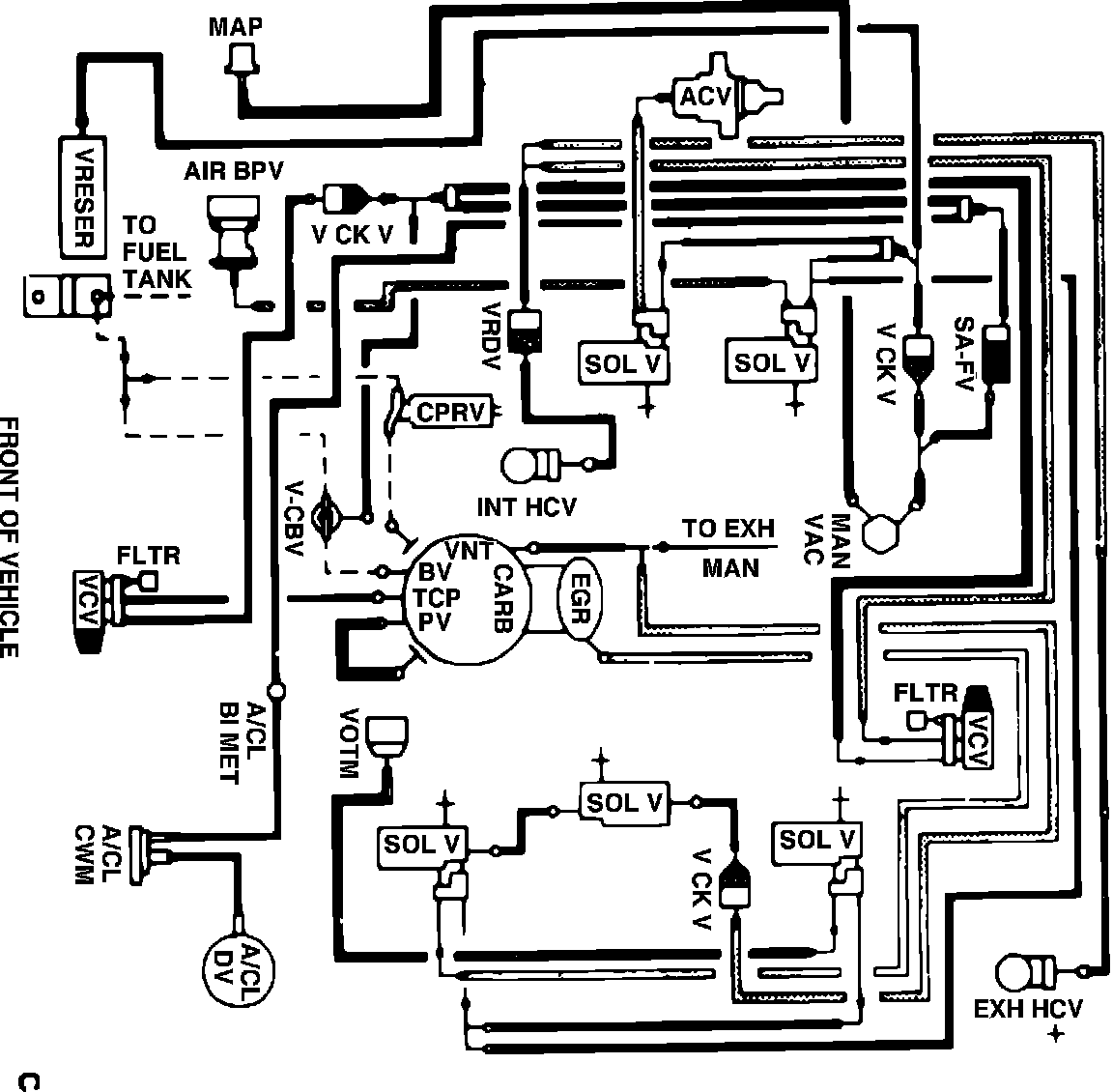

Fig. 121 Calib. Code 4-54R-R0
Fig. 121 Calib. Code 4-54R-R0
Fig. 121 Vacuum hose routing. 1984 V8-302 Calib. code 4-54R-R0:
