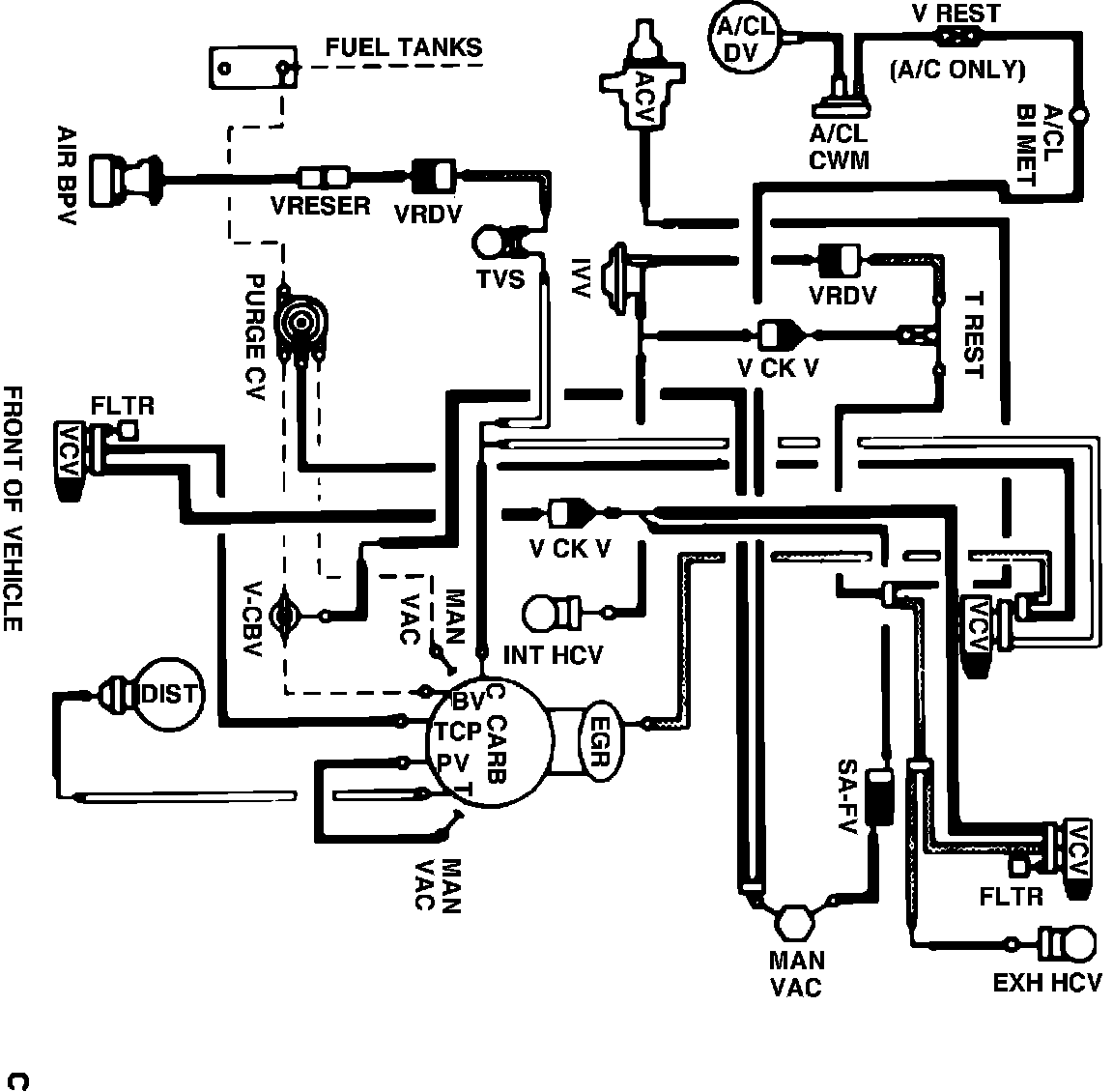

Fig. 120 Calib. Code 4-54L-R11
Fig. 120 Calib. Code 4-54L-R11
Fig. 120 Vacuum hose routing. 1984 V8-302 Calib. code 4-54L-R11:
