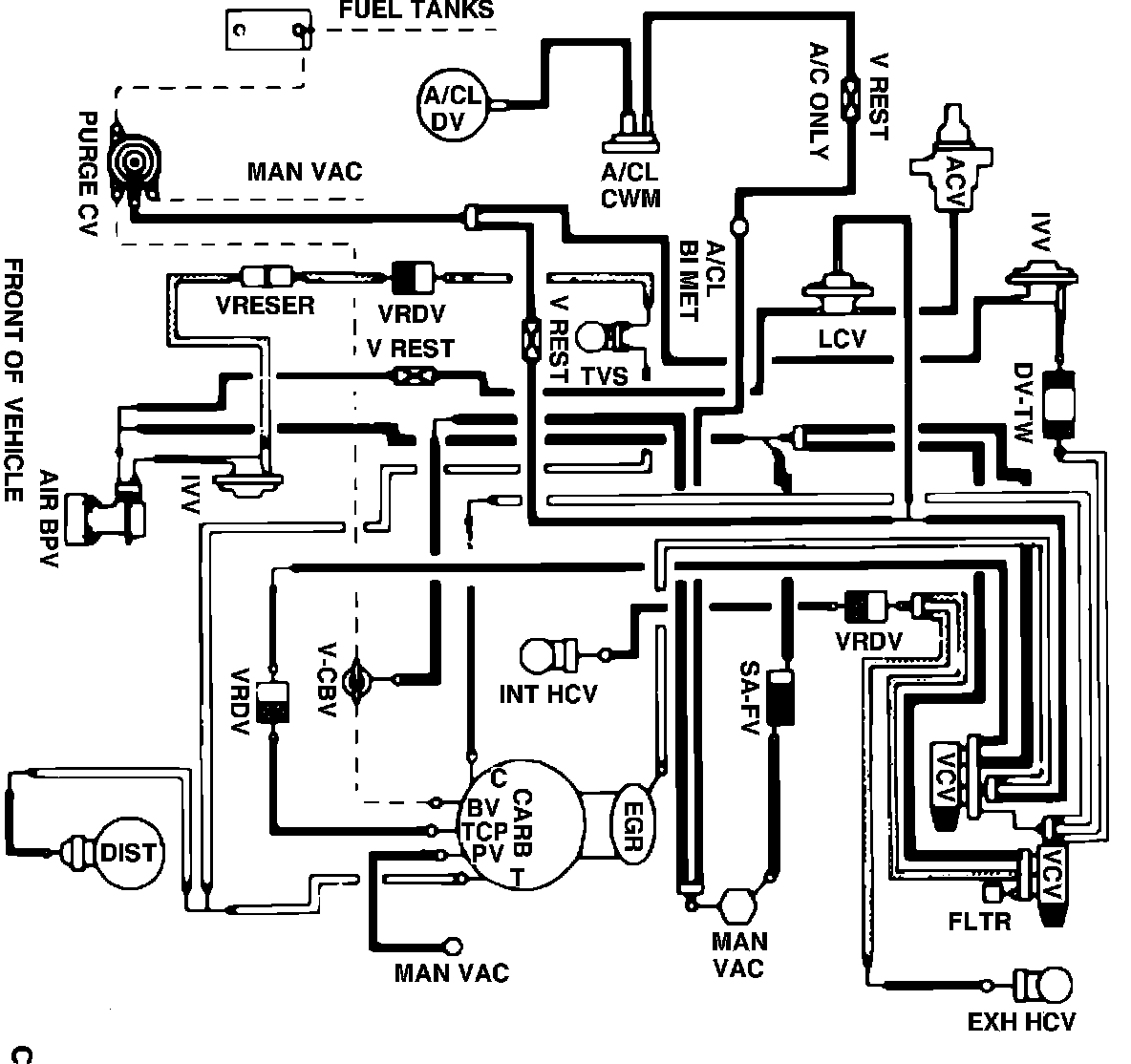

Fig. 108 Calib. Code 4-53Z-R10
Fig. 108 Calib. Code 4-53Z-R10
Fig. 108 Vacuum hose routing. 1984 V8-302 Calib. code 4-53Z-R10:
