Fig. 107 Calib. Code 4-53Z-R0
Fig. 107 Calib. Code 4-53Z-R0

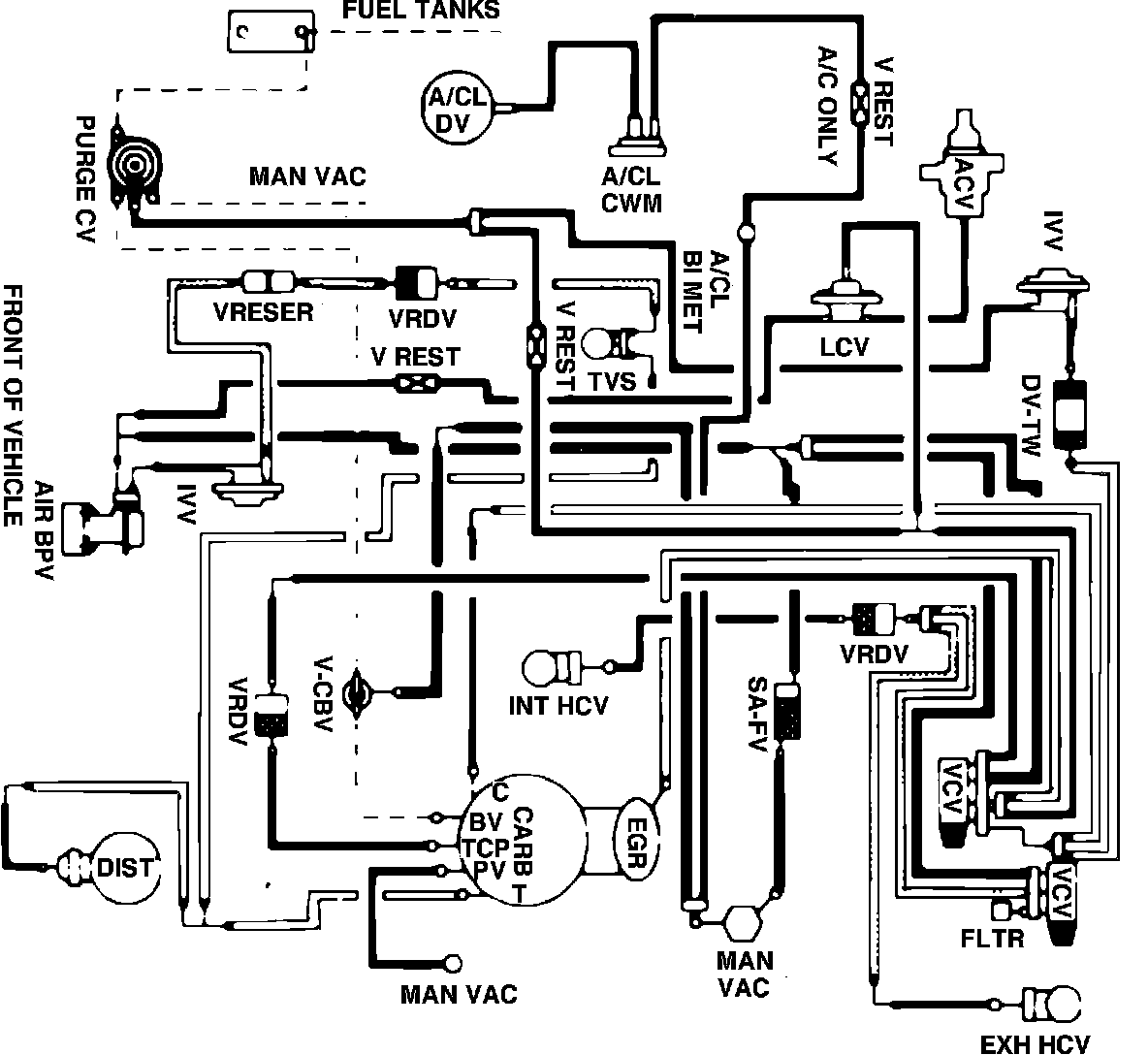

Fig. 107 Vacuum hose routing. 1984 V8-302 Calib. code 4-53Z-R0:
