Fig. 104 Calib. Code 4-53L-R0
Fig. 104 Calib. Code 4-53L-R0

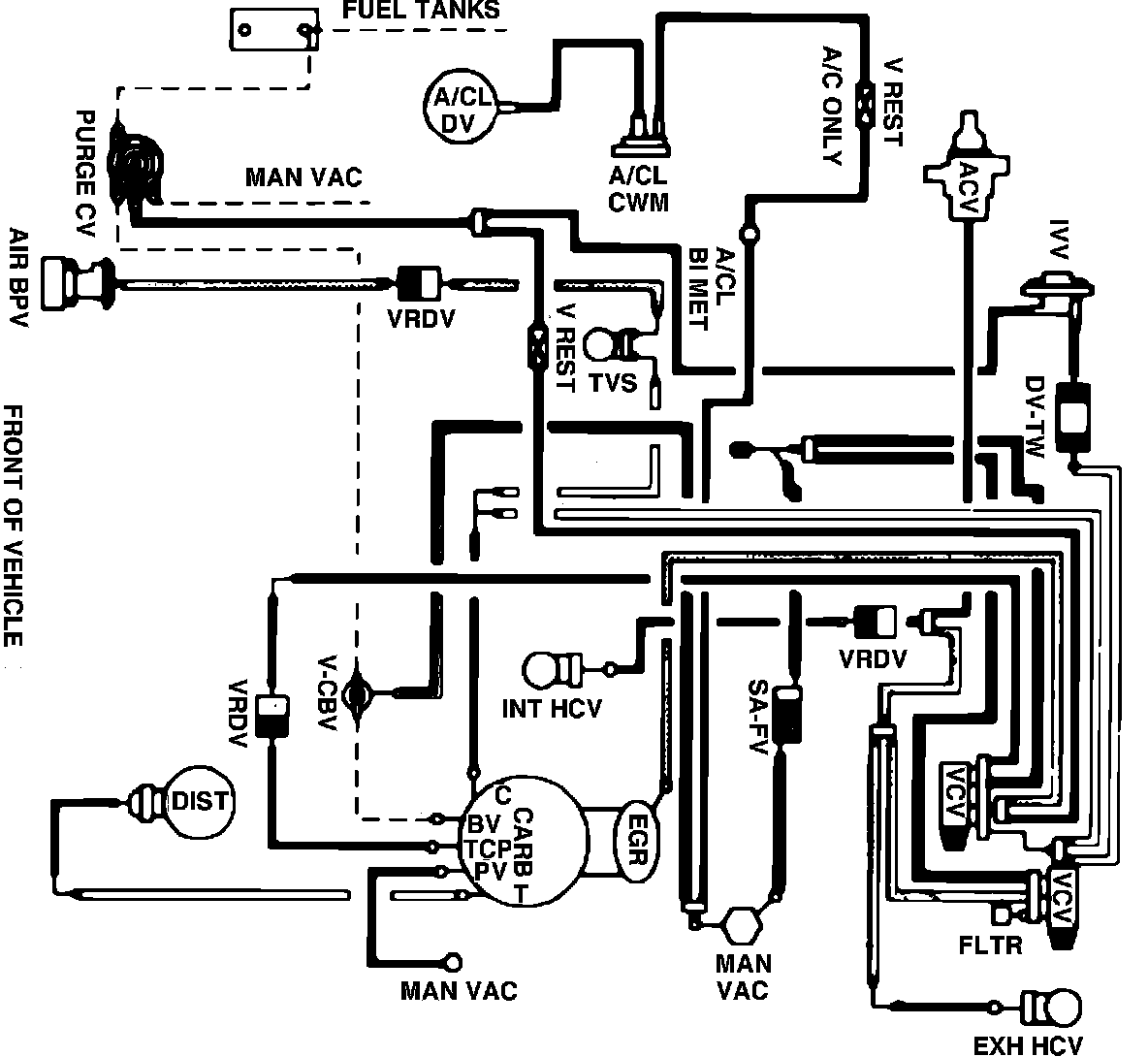

Fig. 104 Vacuum hose routing. 1984 V8-302 Calib. code 4-53L-R0:
