Fig. 100 Calib. Code 4-53K-R0
Fig. 100 Calib. Code 4-53K-R0

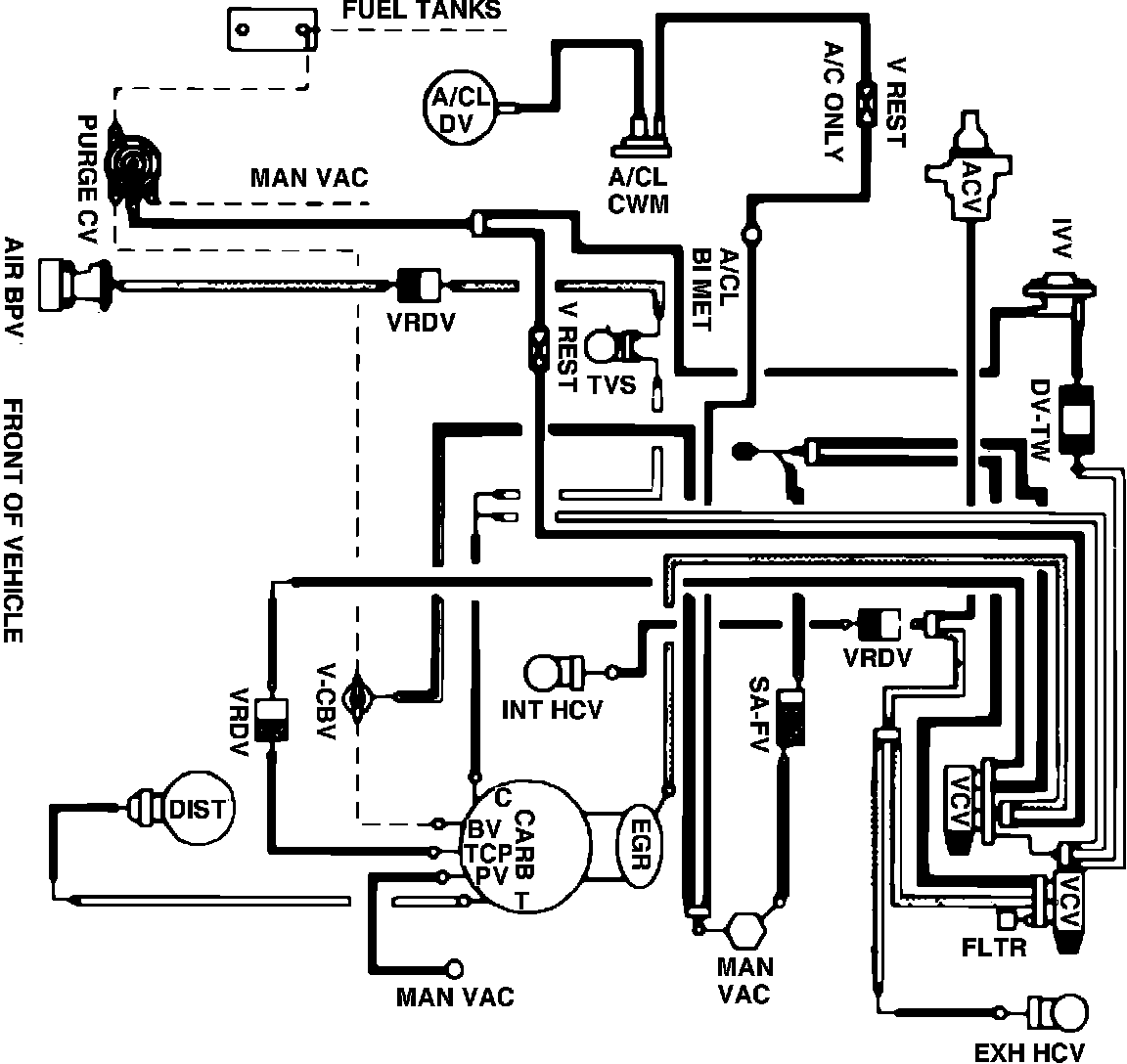

Fig. 100 Vacuum hose routing. 1984 V8-302 Calib. code 4-53K-R0:
