Fig. 76 Calib. Code 4-62S-R15
Fig. 76 Calib. Code 4-62S-R15

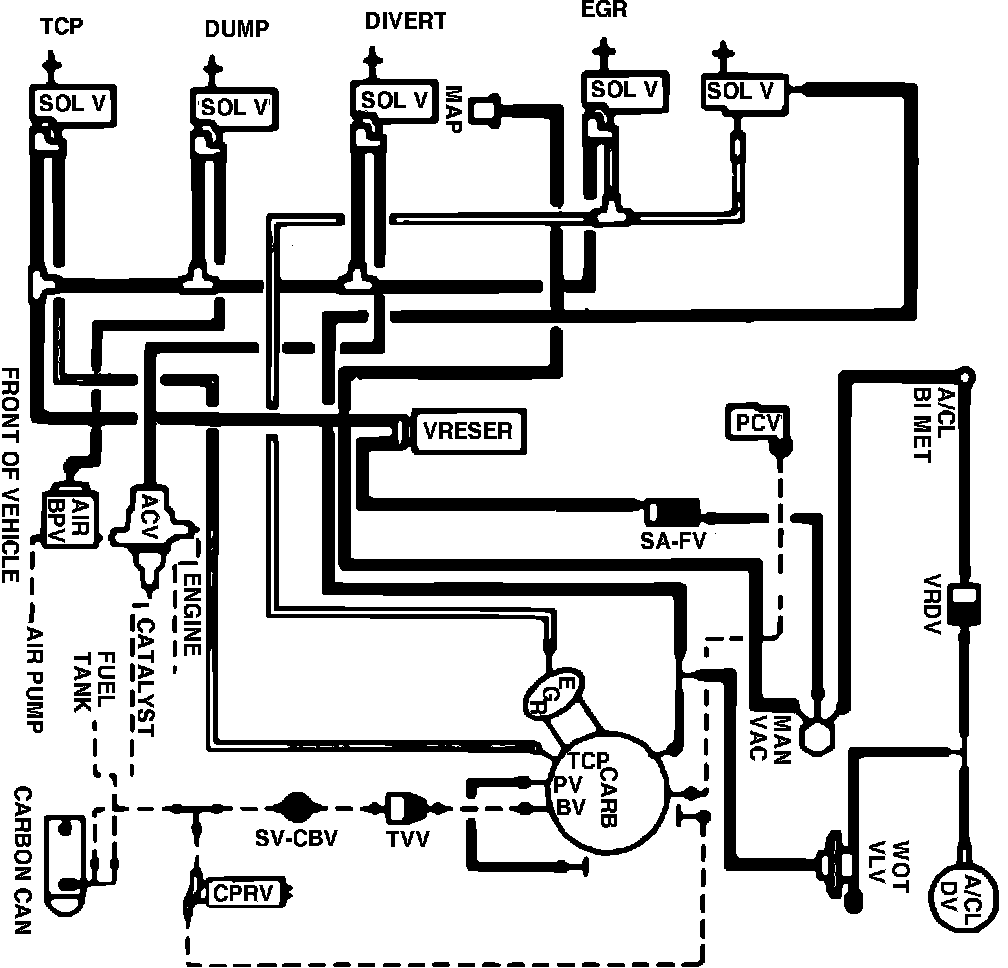

Fig. 76 Vacuum hose routing. 1984 V6-171 Calib. code 4-62S-R15:
