Fig. 71 Calib. Code 4-62D-R12
Fig. 71 Calib. Code 4-62D-R12

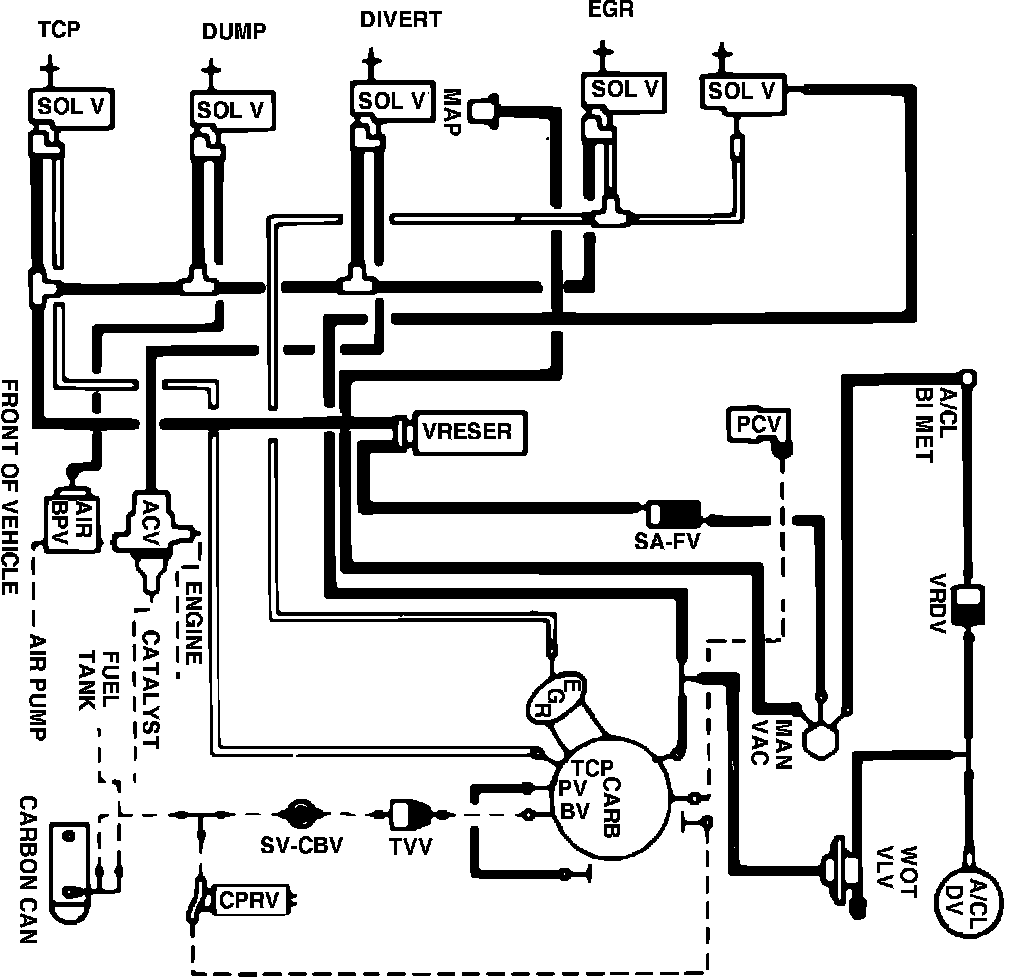

Fig. 71 Vacuum hose routing. 1984 V6-171 Calib. code 4-62D-R12:
