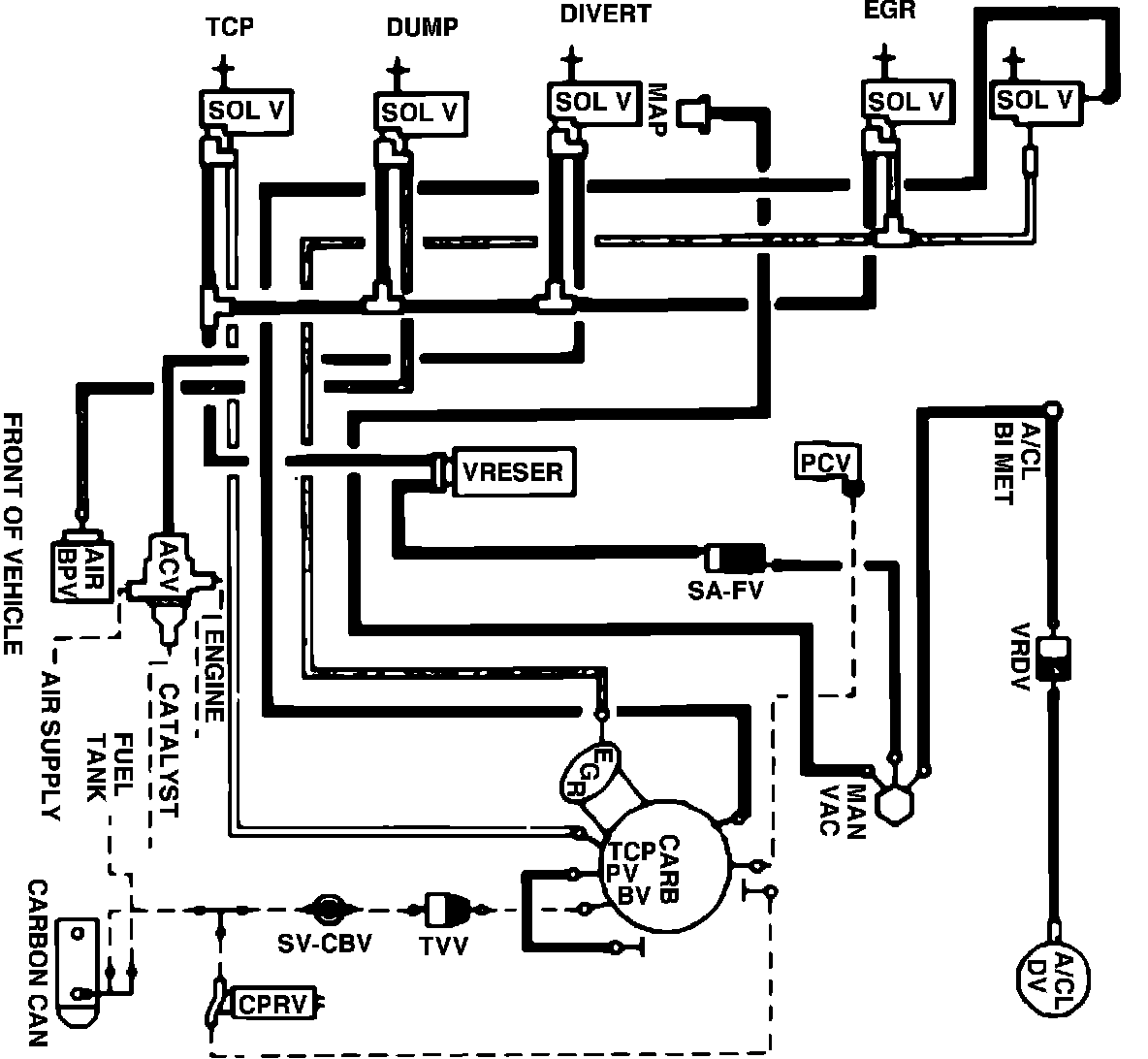

Fig. 72 Calib. Code 4-62S-R1
Fig. 72 Calib. Code 4-62S-R1
Fig. 72 Vacuum hose routing. 1984 V6-171 Calib. code 4-62S-R1:
