Transmission In-Line 12 Way Connector
>>
Trans Side
Trans Side

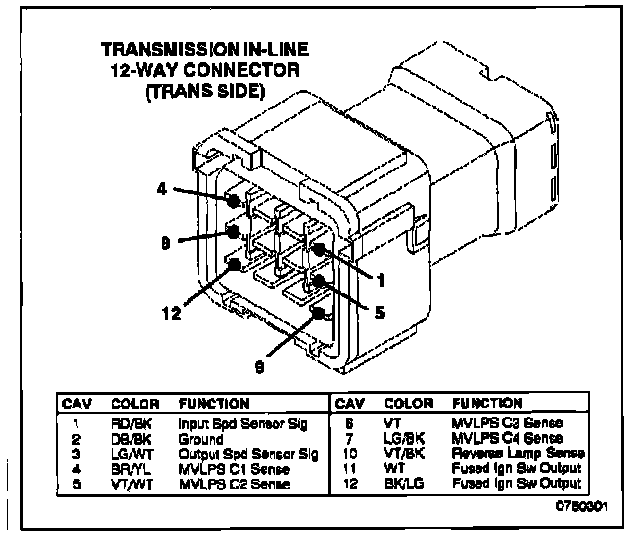

Transmission In-Line 12 Way Connector Trans Side:
