Eagle
>>
1995
>>
Vision V6-201 3.3L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Connector Views
>>
Air Conditioning and Heater System
>>

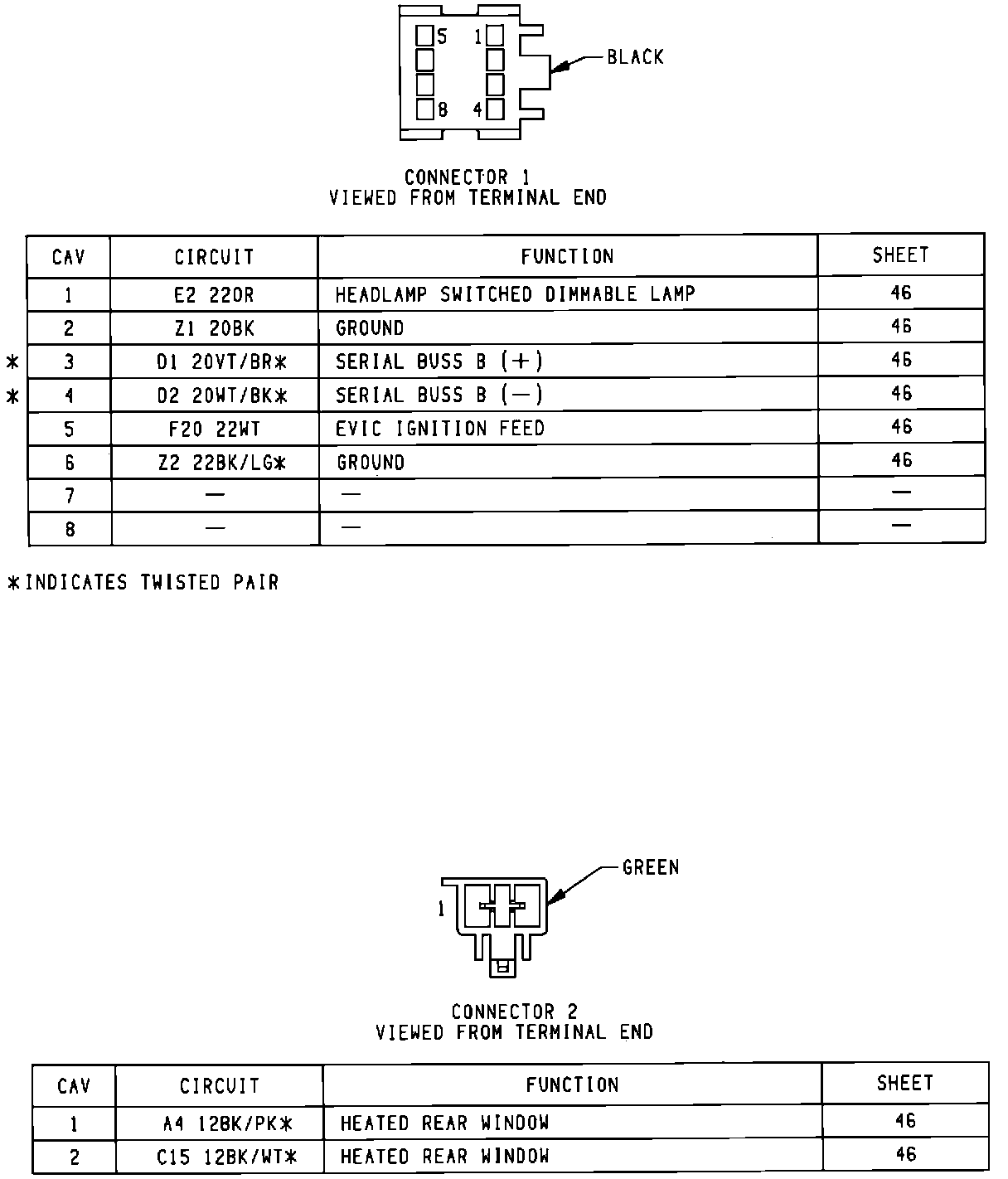

Auto Temperature Control Module Connector
Auto Temperature Control Module Connector
