Home
>>
Eagle
>>
1995
>>
Vision V6-201 3.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Cluster / Carrier
>>
Mechanical Instrument Cluster Grey Connector
Mechanical Instrument Cluster Grey Connector

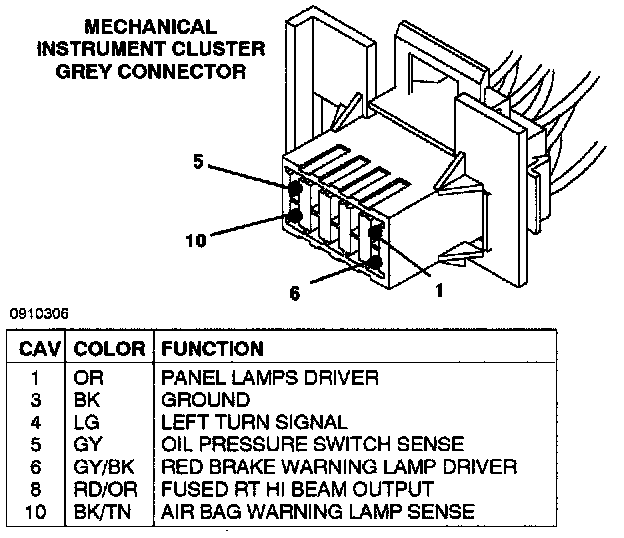

Mechanical Instrument Cluster Grey Connector:
