Automatic Transmission

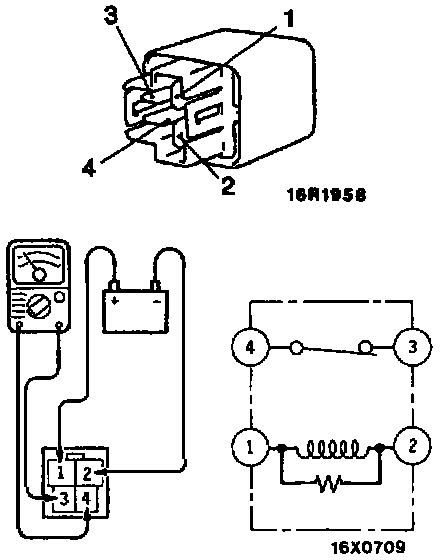

Thaft Alarm Starter Relay Continuity Check:

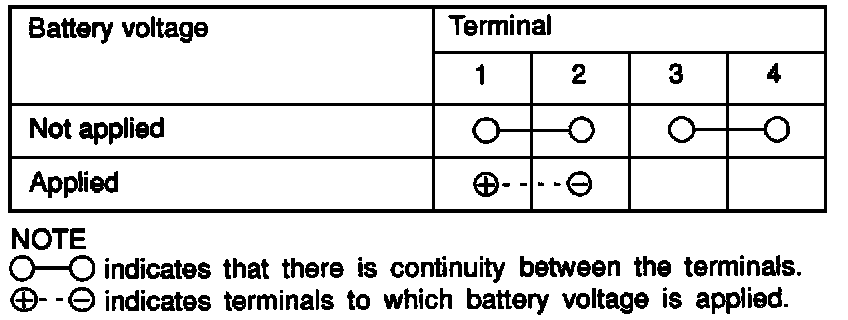

Theft Alarm Starter Relay Continuity Check Table:
