Eagle
>>
1995
>>
Talon FWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Symptom Diagnostic Procedures
>>
Inspection Procedure 8
Inspection Procedure 8

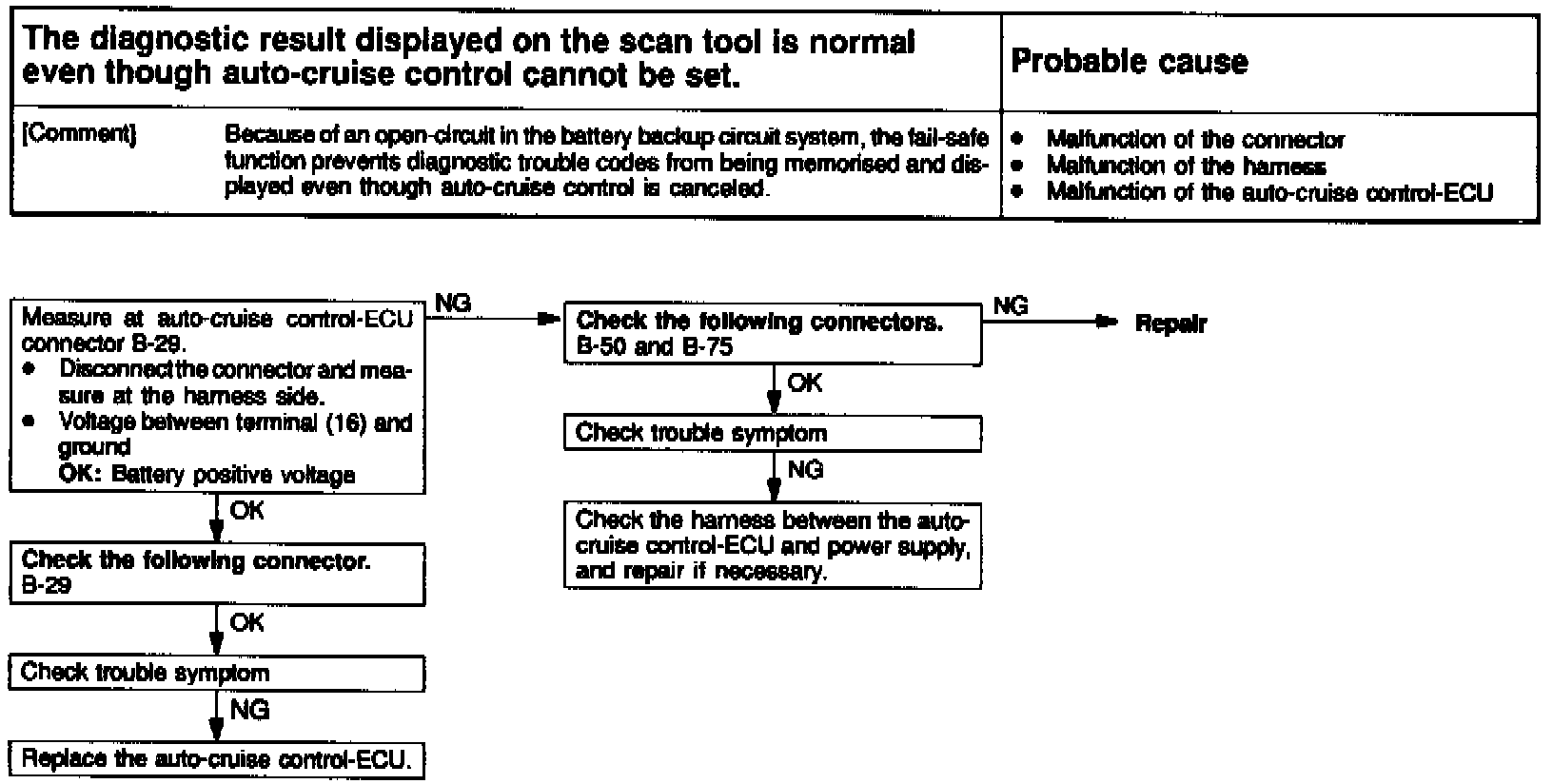

Fig. 51 Inspection Procedure 8:
