Home
>>
Eagle
>>
1995
>>
Talon AWD L4-1997cc 2.0L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
No Trouble Code (NTC) Tests
>>
NTC-7B Checking For Oxygen Sensor Switching
NTC-7B Checking For Oxygen Sensor Switching
Related Images:

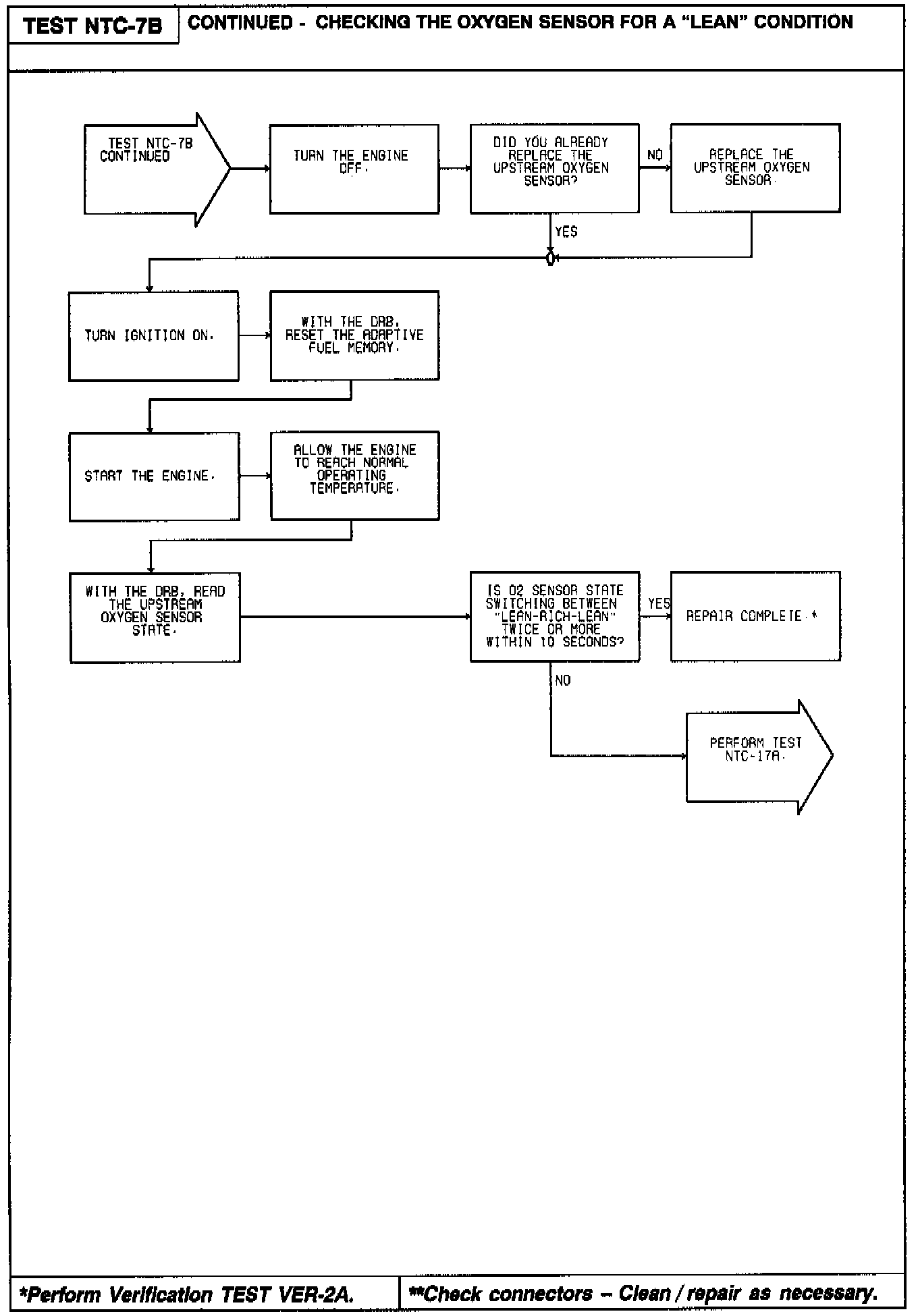

Diagnostic Chart:

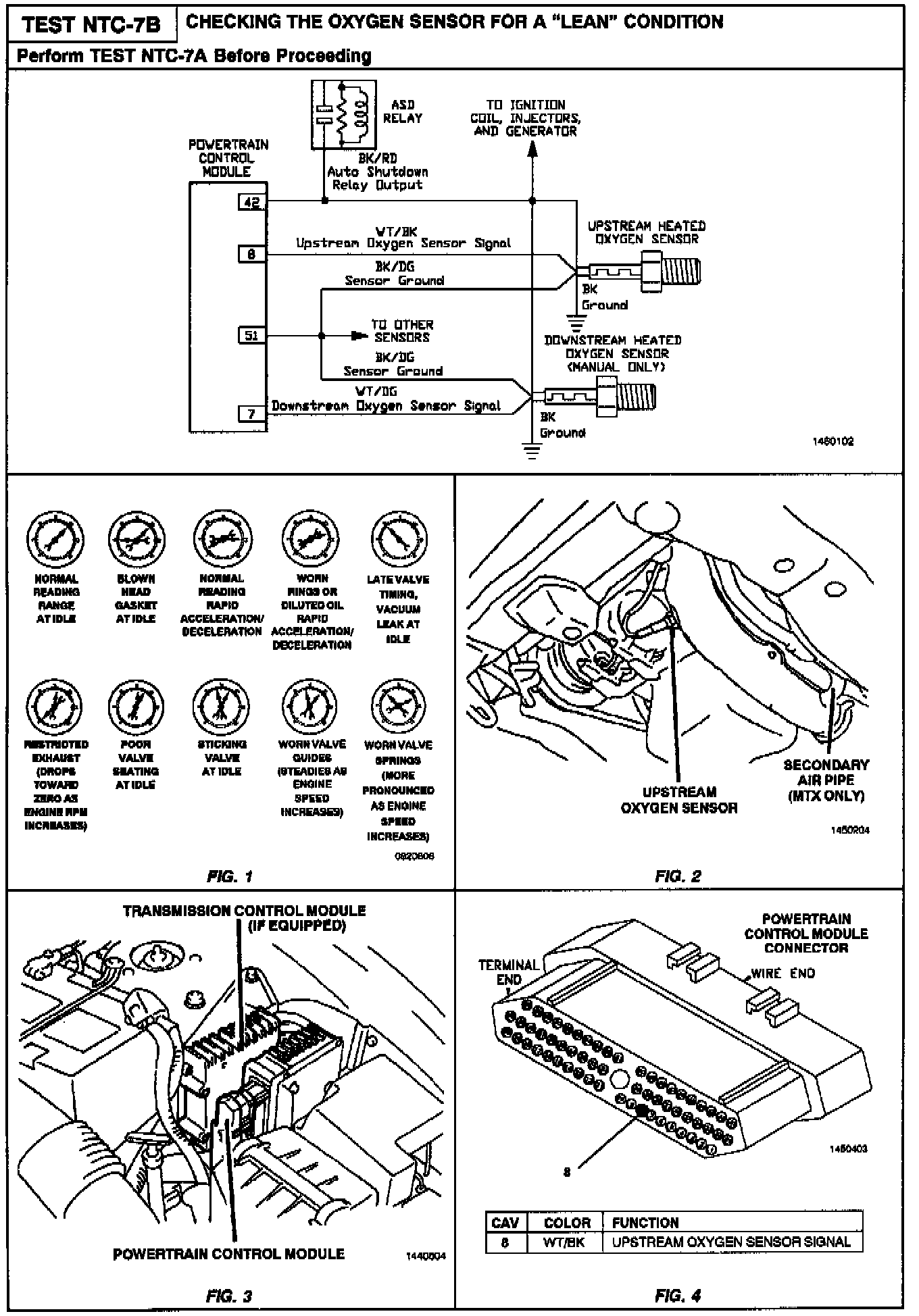

Diagnostic Chart:
