Home
>>
Eagle
>>
1995
>>
Talon AWD L4-1997cc 2.0L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
No Start Test
>>
No Start (NS) Tests
>>
NS-4B Checking High Fuel Pressure
NS-4B Checking High Fuel Pressure

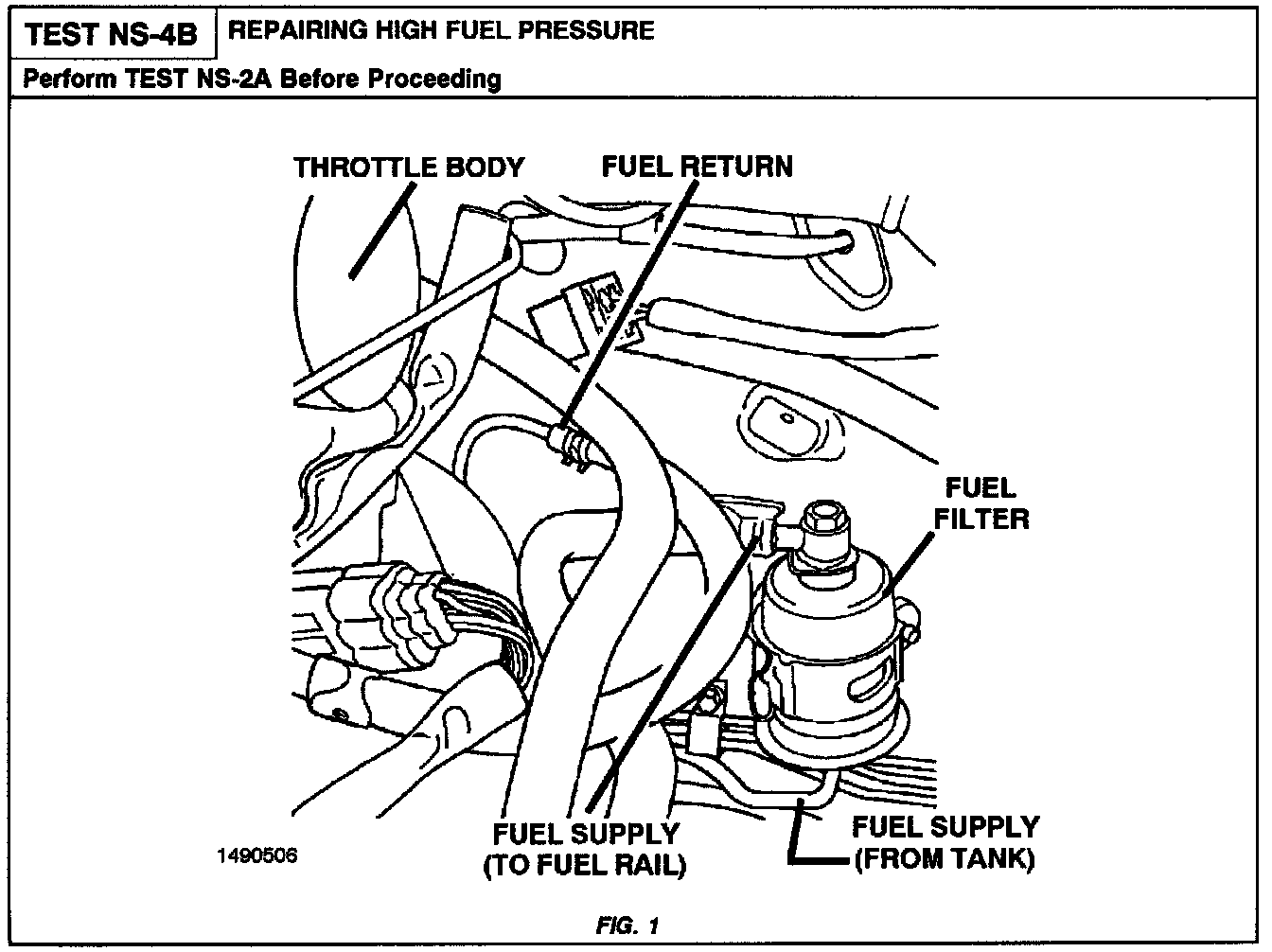

Related Images:

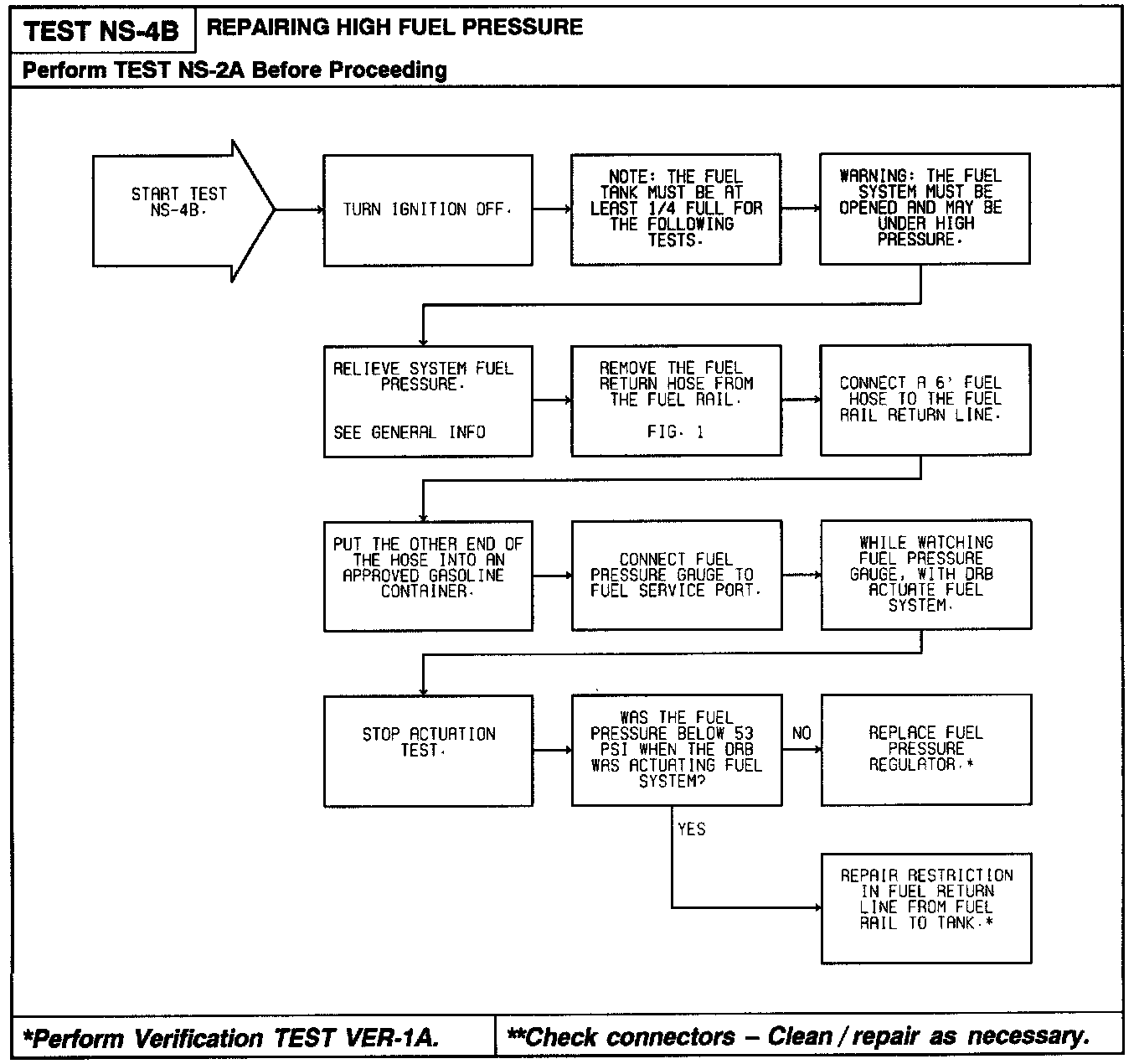

Diagnostic Chart:
