Ignition Key Reminder Warning Buzzer Circuit
Ignition Key Reminder Warning Buzzer Circuit

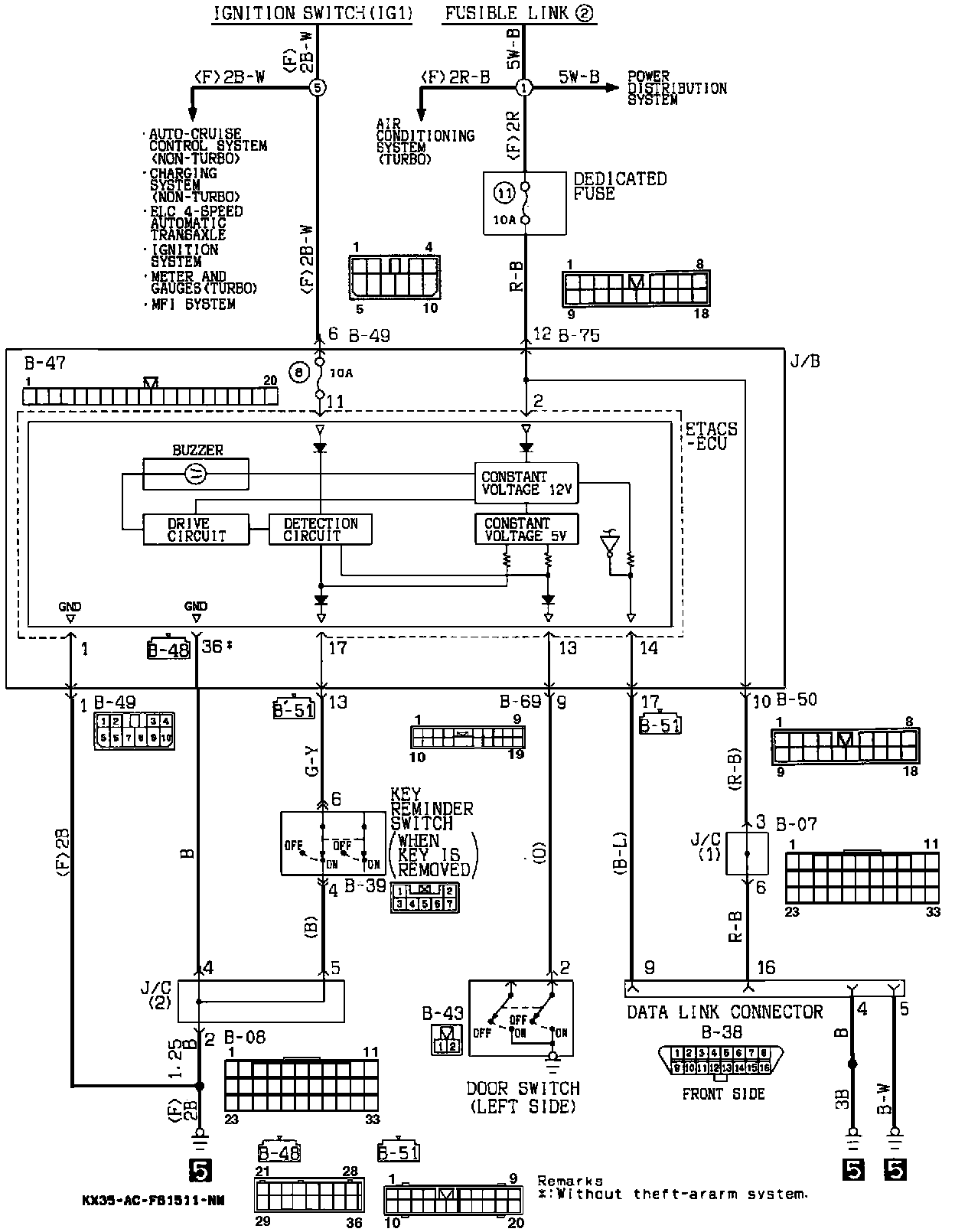

Ignition Key Reminder Warning Buzzer Circuit:
