Eagle
>>
1995
>>
Talon AWD L4-1997cc 2.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

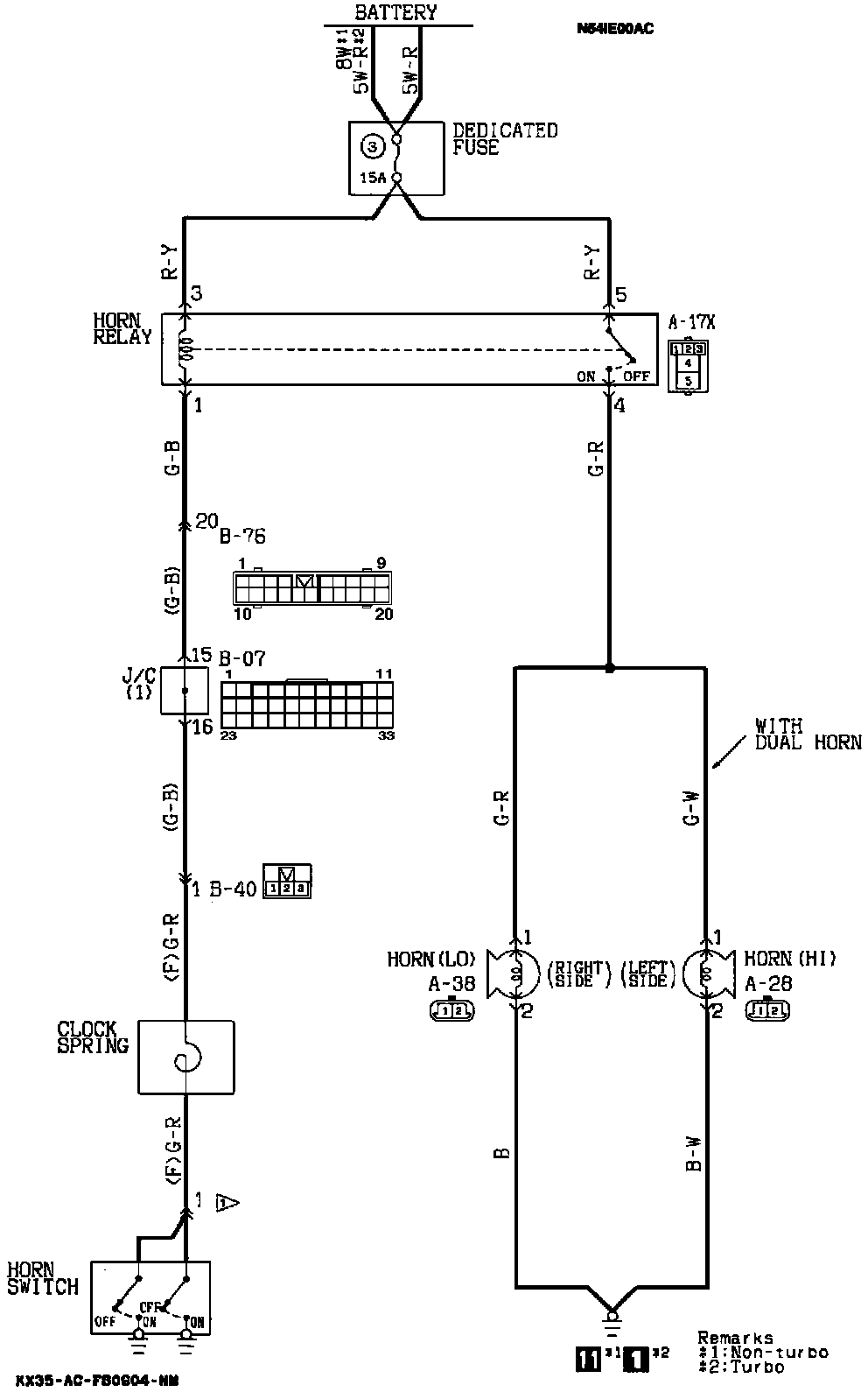

Horn
Horn
Troubleshooting Circuit:
