Eagle
>>
1995
>>
Talon AWD L4-1997cc 2.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Backup Lamp
>>
Automatic Transmission
Automatic Transmission

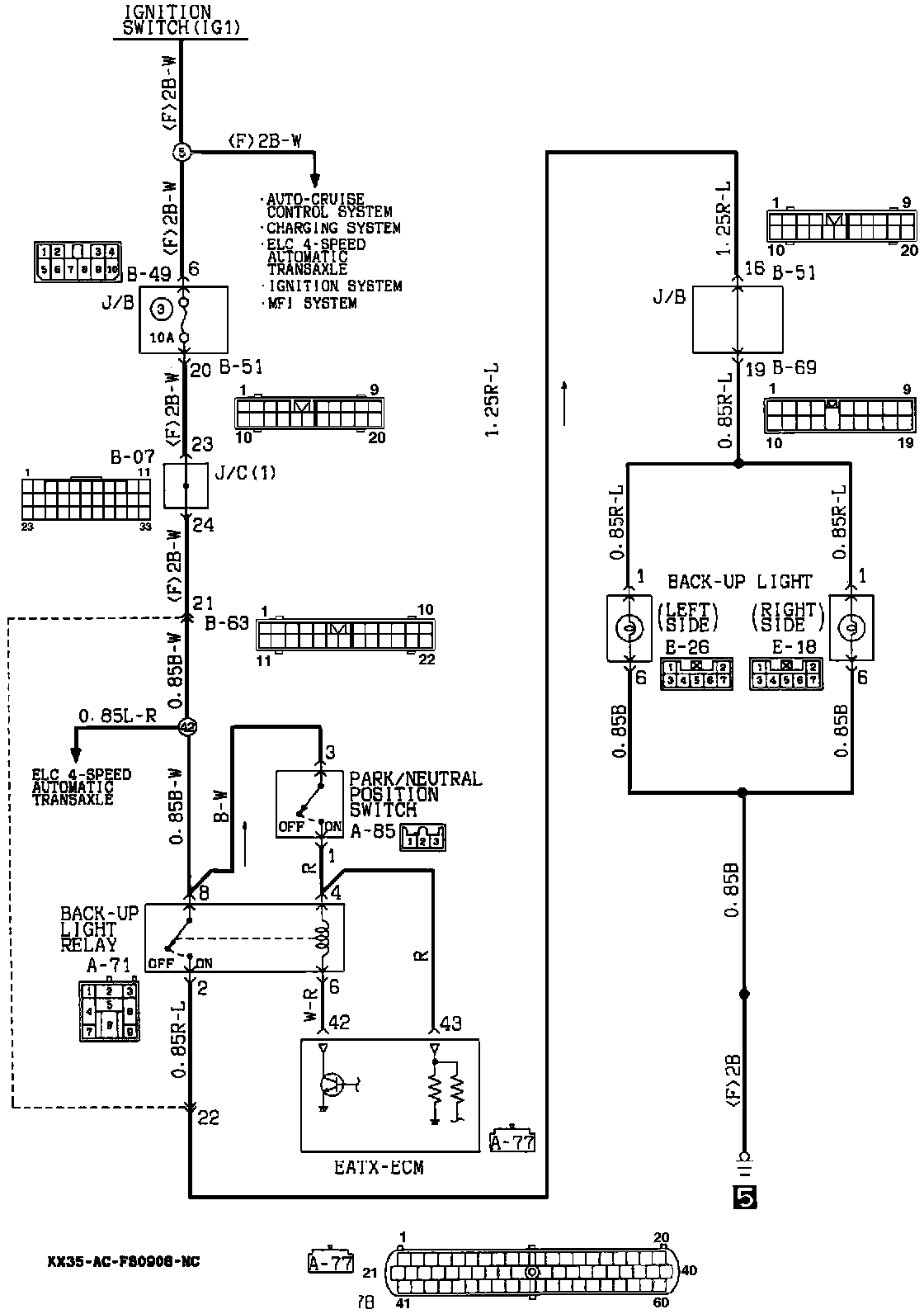

Back-Up Light Circuit:
