Talon AWD L4-1997cc 2.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Speed Sensor, A/T
>>

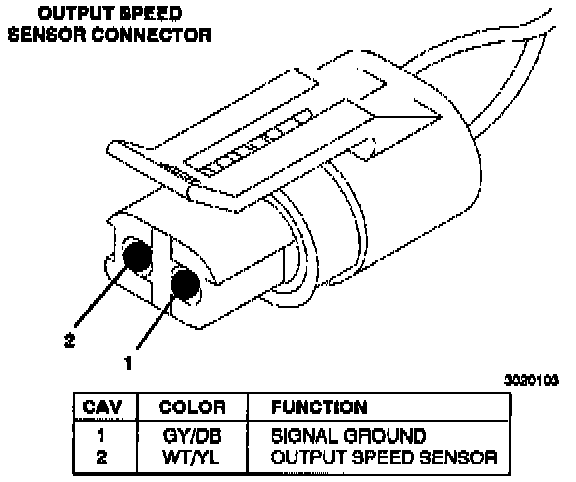

Output Speed Sensor Connector
Output Speed Sensor Connector
Output Speed Sensor Connector:
