Home >> Eagle >> 1995 >> Talon AWD L4-1997cc 2.0L DOHC >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Test 7 - Brake Operation Is Abnormal

Test 7 - Brake Operation Is Abnormal

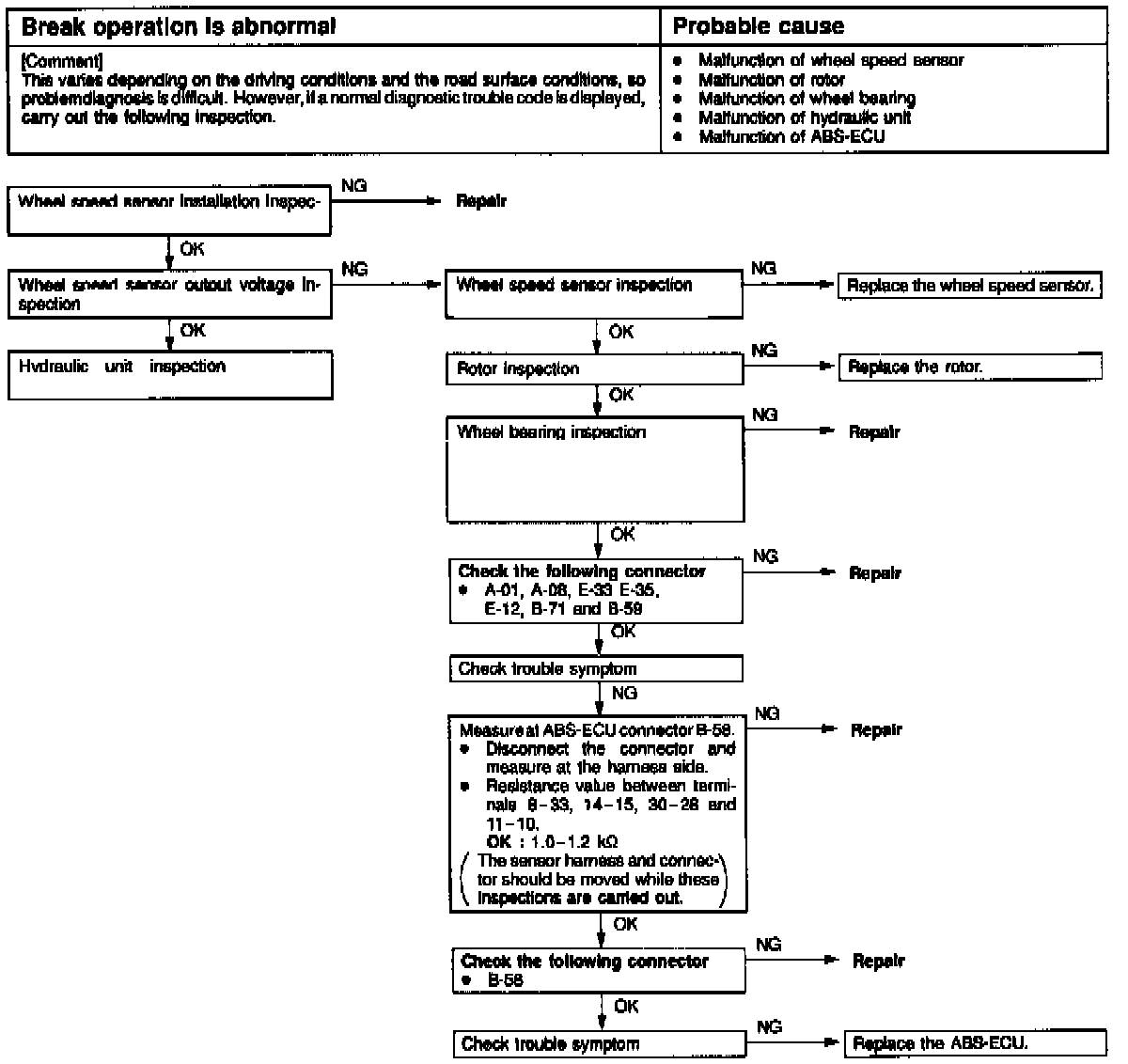

Fig 48 Test 7: Brake Operation Is Abnormal:
