Talon AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Trouble Code (TC) Tests
>>
TC-31A Injector #1 Control Circuit
TC-31A Injector #1 Control Circuit

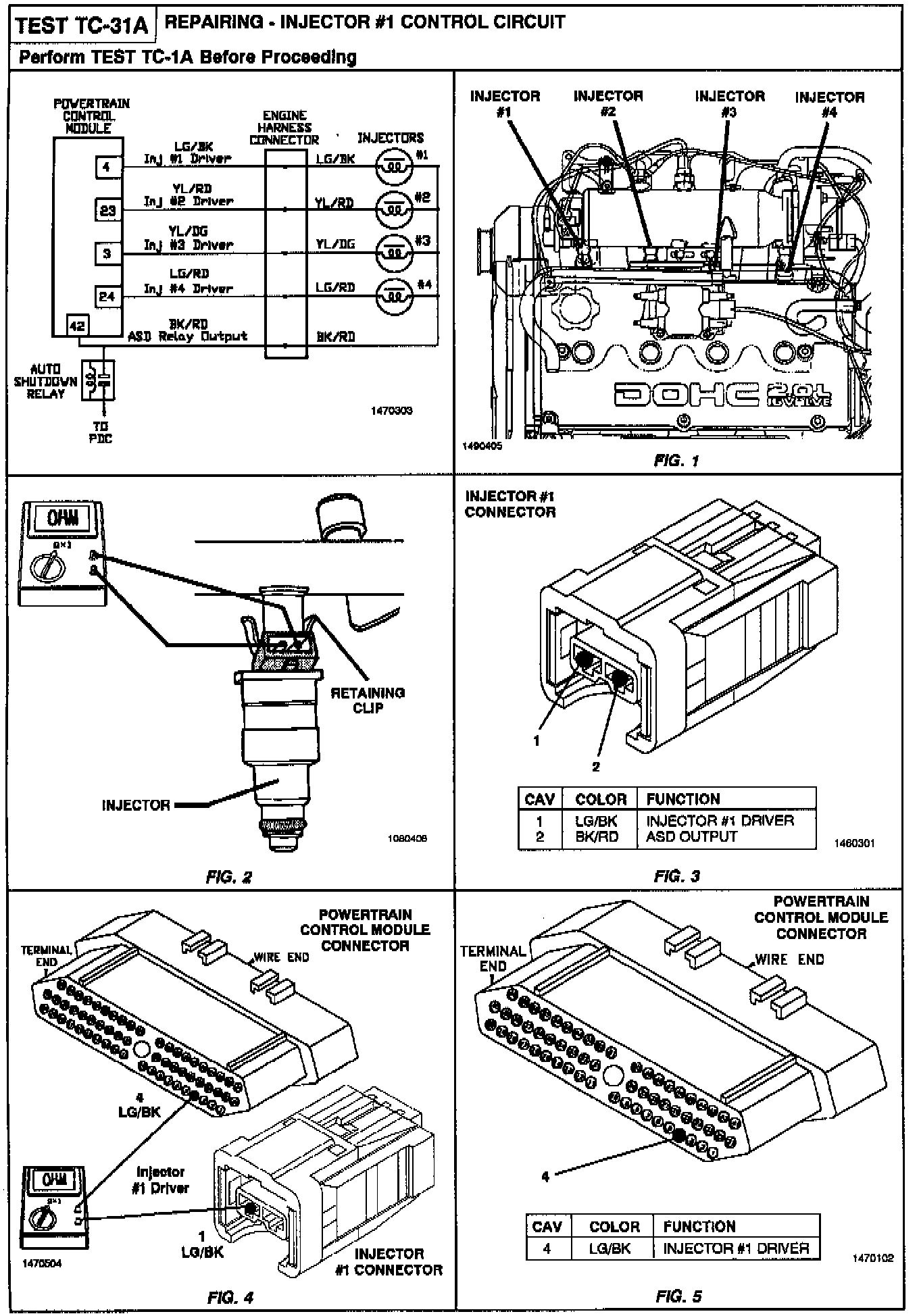

Related Images:

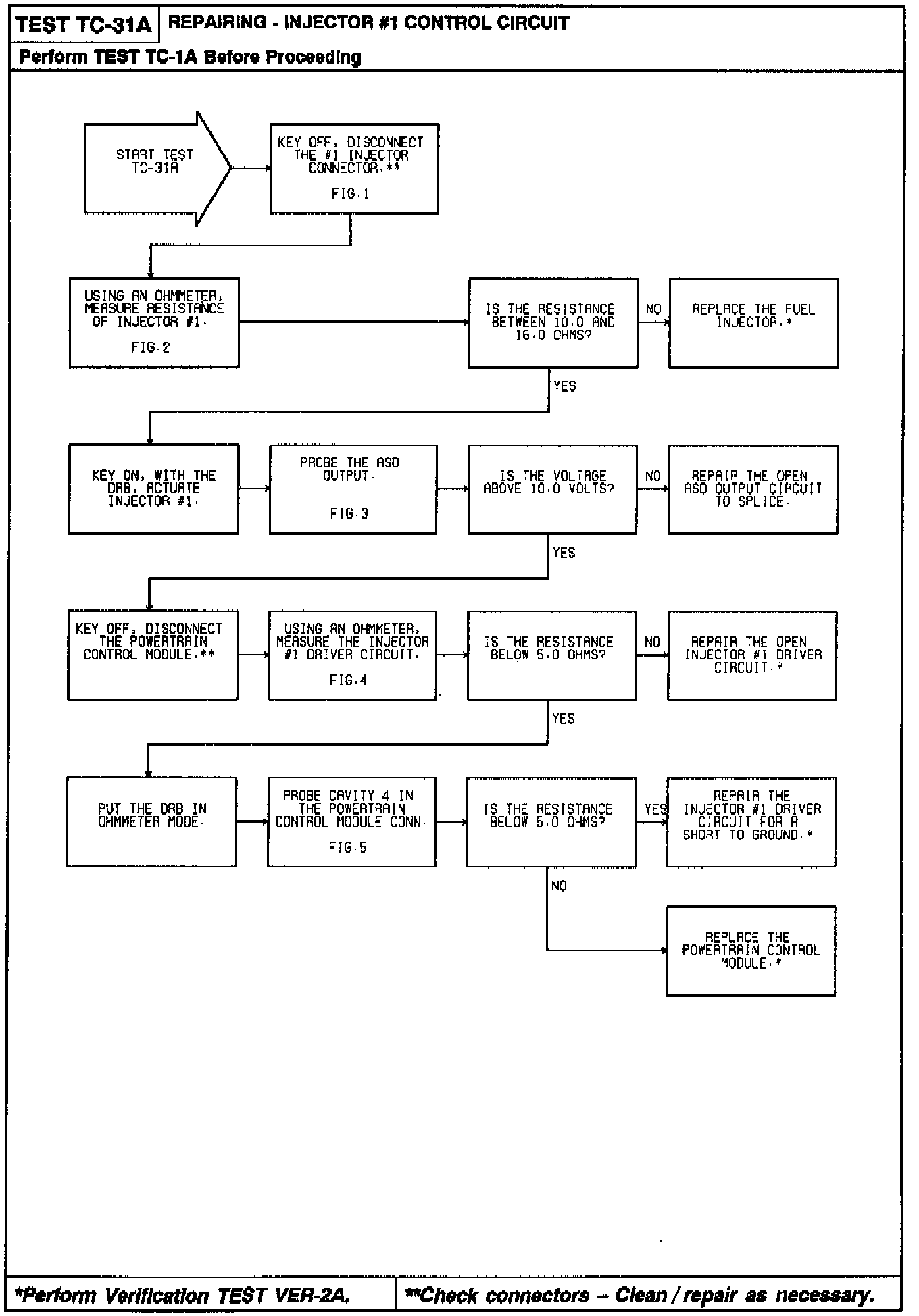

Diagnostic Chart:
