Eagle
>>
1995
>>
Summit Wagon AWD L4-2350cc 2.4L SOHC
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Service and Repair
>>
Overhaul
>>
Oil Pump
>>

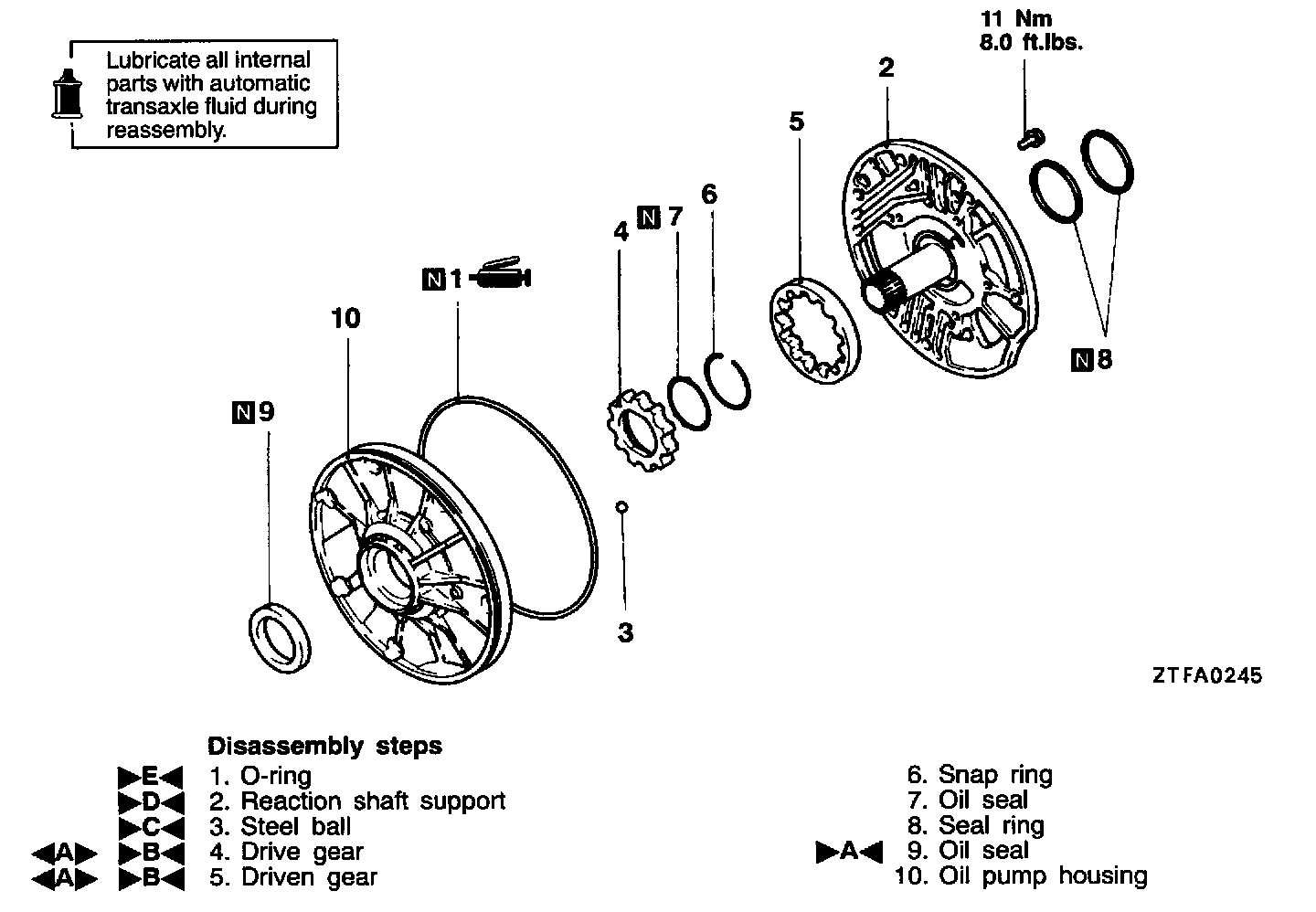

Disassembly
Disassembly
A.
DRIVE GEAR/DRIVEN GEAR REMOVAL
Make reassembly alignment marks on the drive and driven gears.
