Home
>>
Eagle
>>
1995
>>
Summit Wagon AWD L4-2350cc 2.4L SOHC
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Starter Relay
>>
Testing and Inspection
Starter Relay: Testing and Inspection

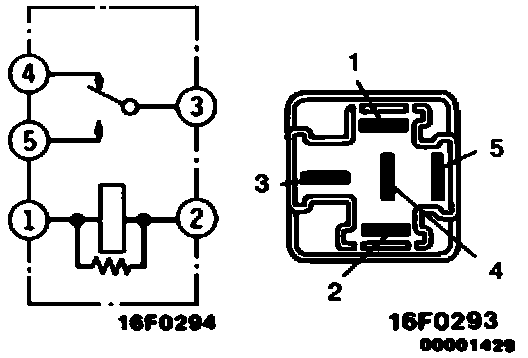

Starter Relay:

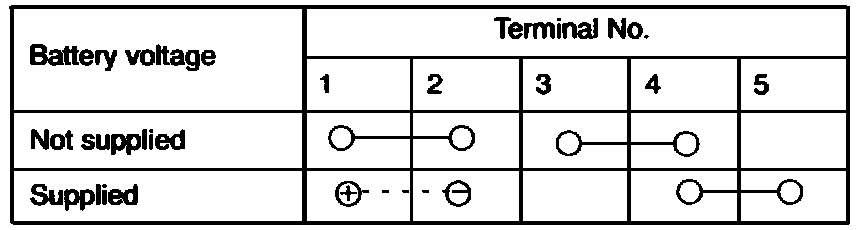

Starter Relay Continuity Table:
