Electrical Diagrams
Heater And Air Conditioning Circuits (Part 1 Of 3):

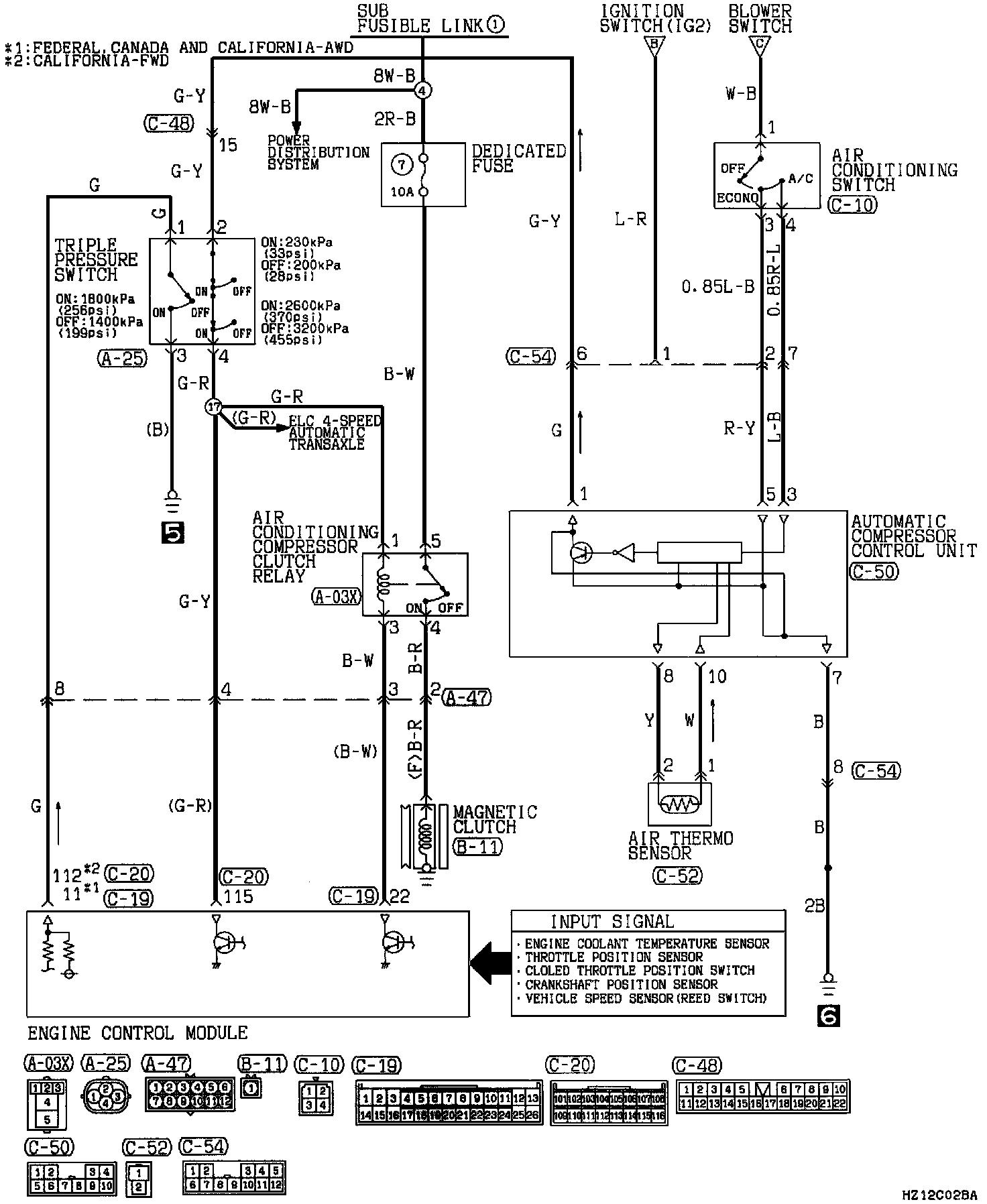

Heater And Air Conditioning Circuits (Part 2 Of 3):

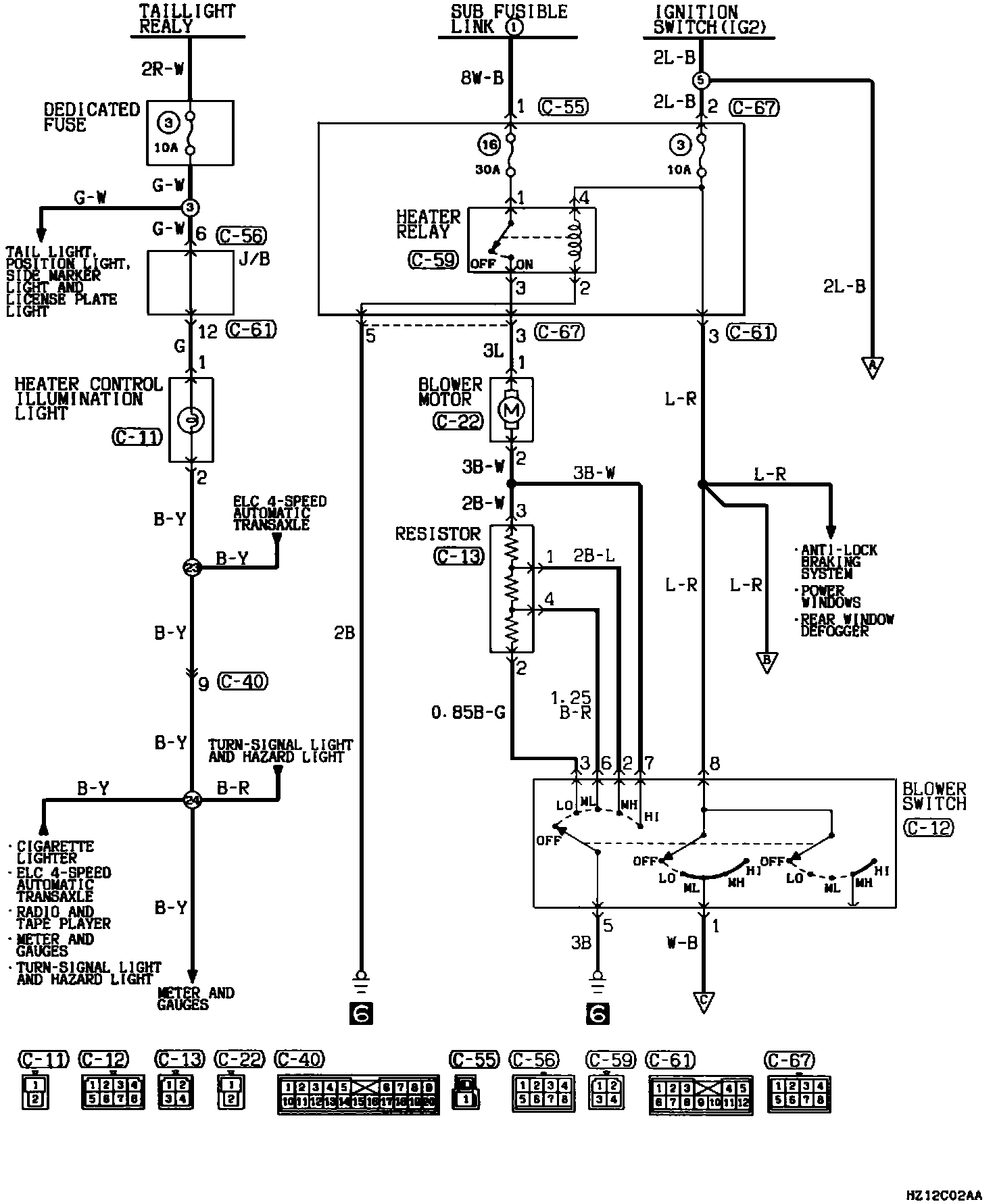

Heater And Air Conditioning Circuits (Part 3 Of 3):
