Eagle
>>
1995
>>
Summit Wagon AWD L4-2350cc 2.4L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cargo Lamp
>>
Without Keyless Entry System
Without Keyless Entry System

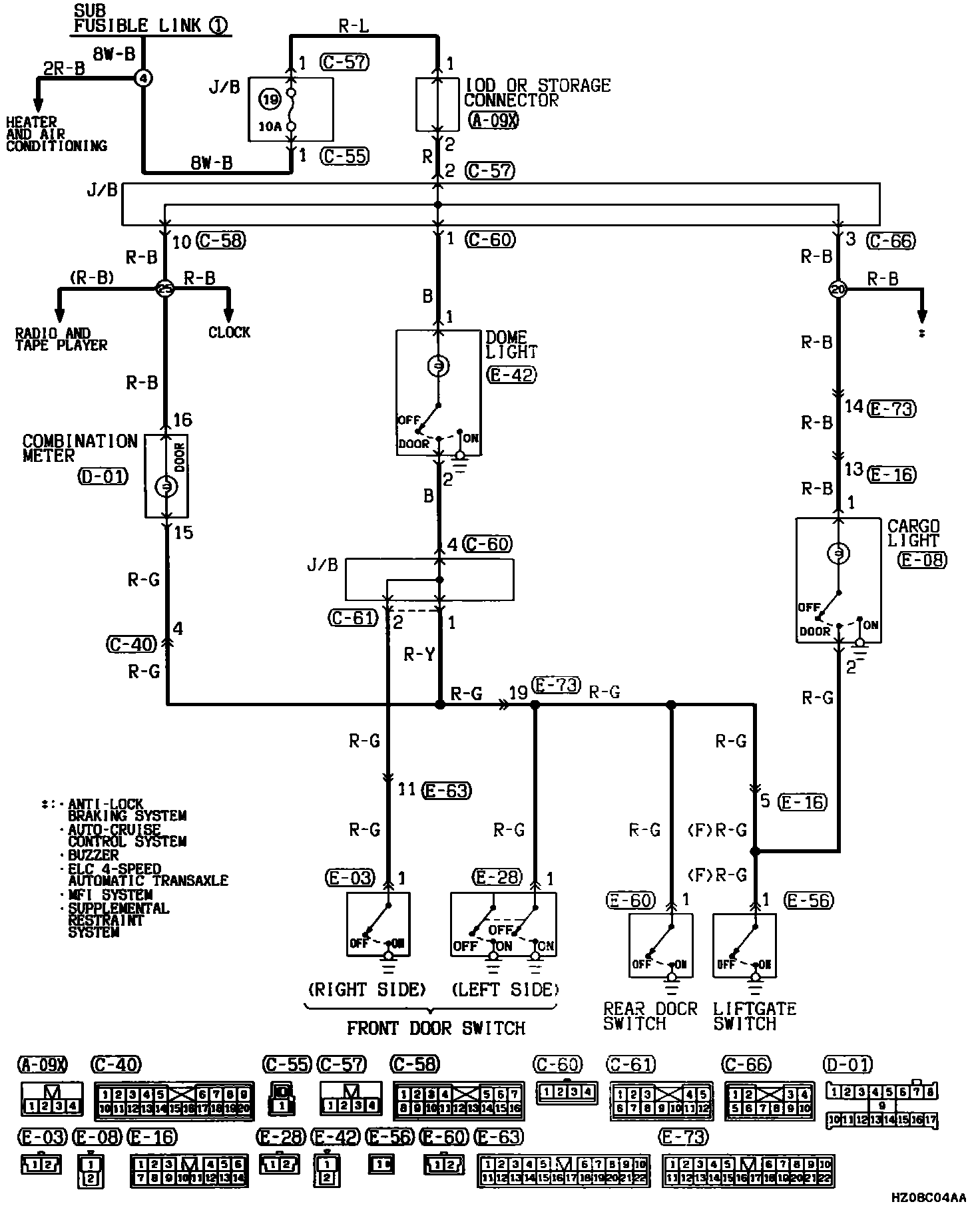

Dome And Cargo Light:
