Dissassembly

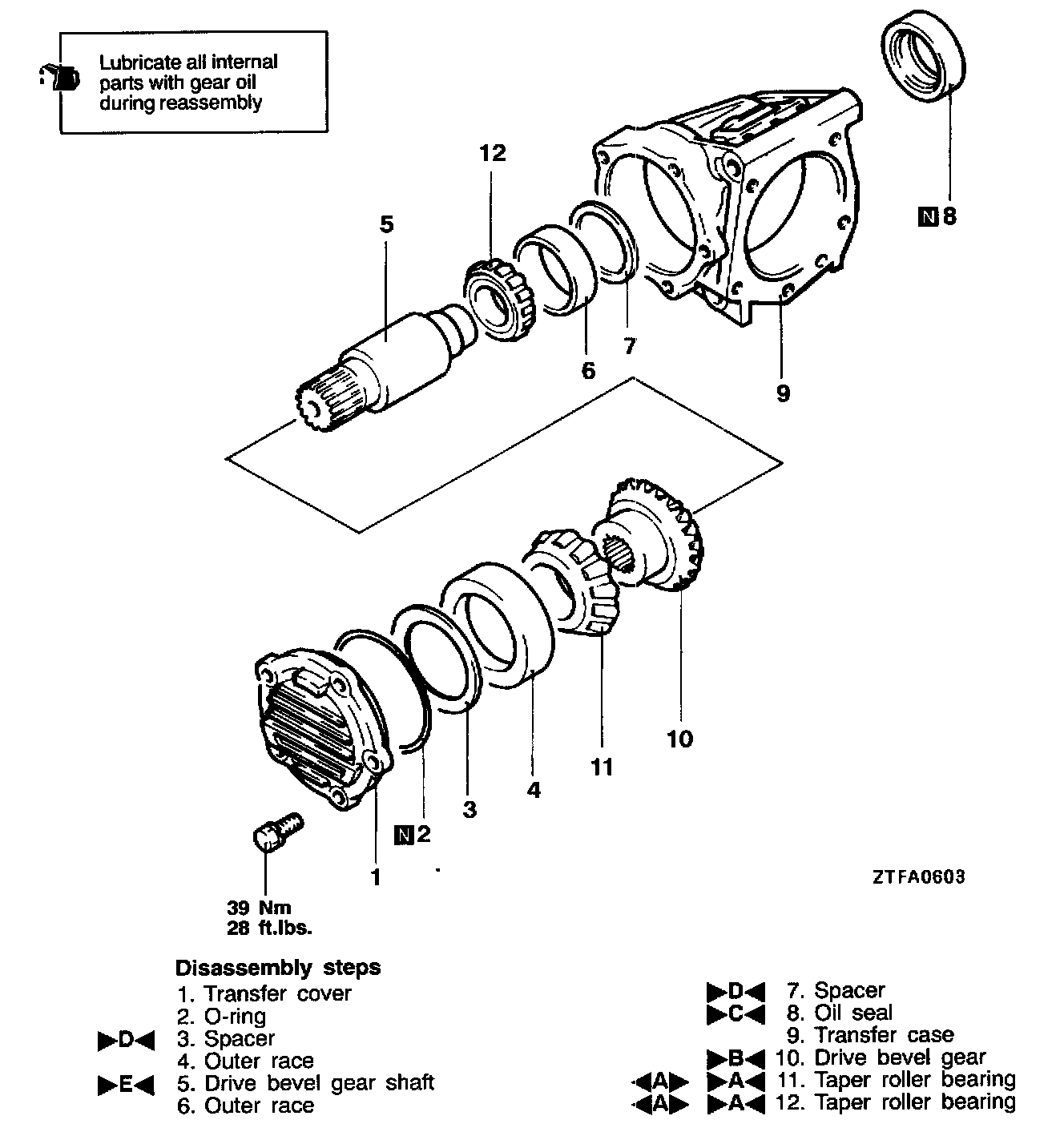

AWD DISASSEMBLY AND REASSEMBLY

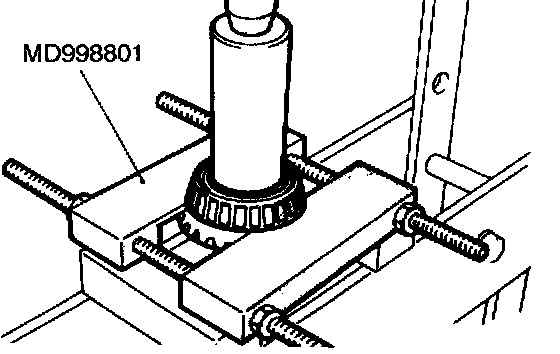

A. TAPER ROLLER BEARINGS REMOVAL

Using the special tool, remove the taper roller bearing.
