Eagle
>>
1995
>>
Summit Wagon AWD L4-1795cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Steering
>>
Testing and Inspection
>>
Flow of Diagnosis
>>
Power Steering Troubleshooting Guide
Power Steering Troubleshooting Guide

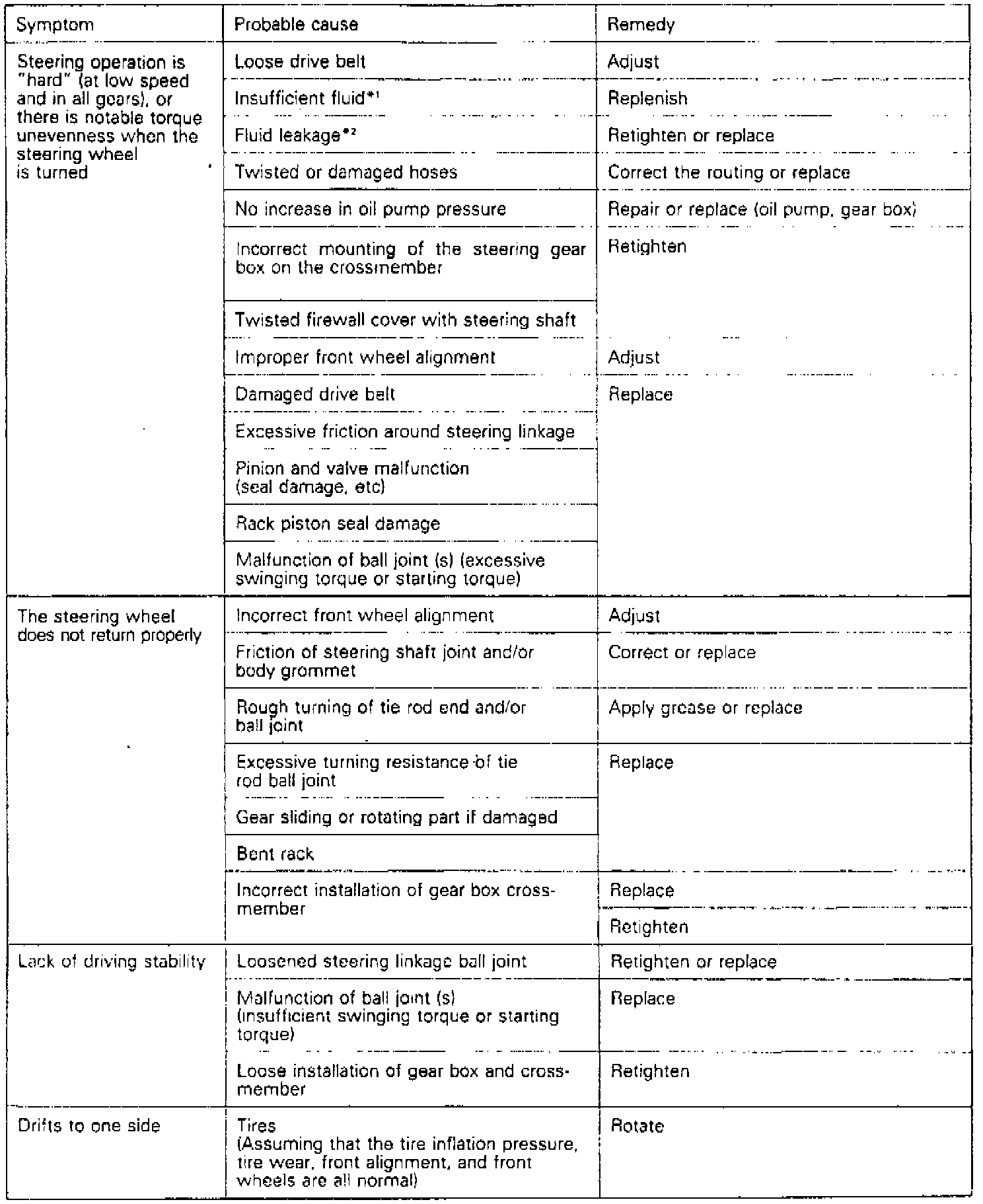

Fig.2 Troubleshooting Guide Part 1 Of 2:

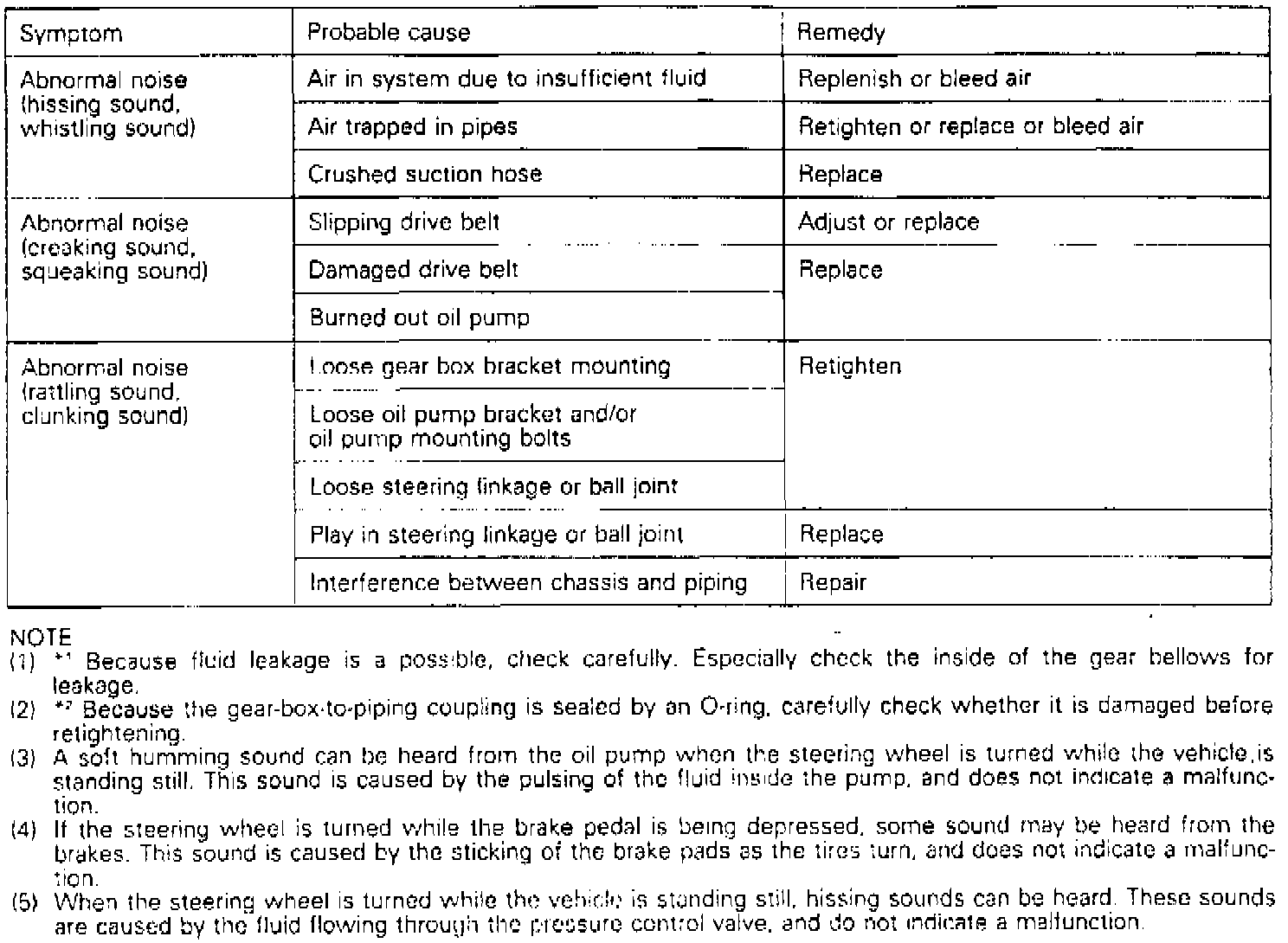

Fig.2 Troubleshooting Guide Part 2 Of 2:
